Item NO.:
3301040515050200Order(MOQ):
1Goods Stock:
41Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
2x1.5x59cmDescription:
PROXIMITY TRANSDUCERPrice:
AskRoute and configuration

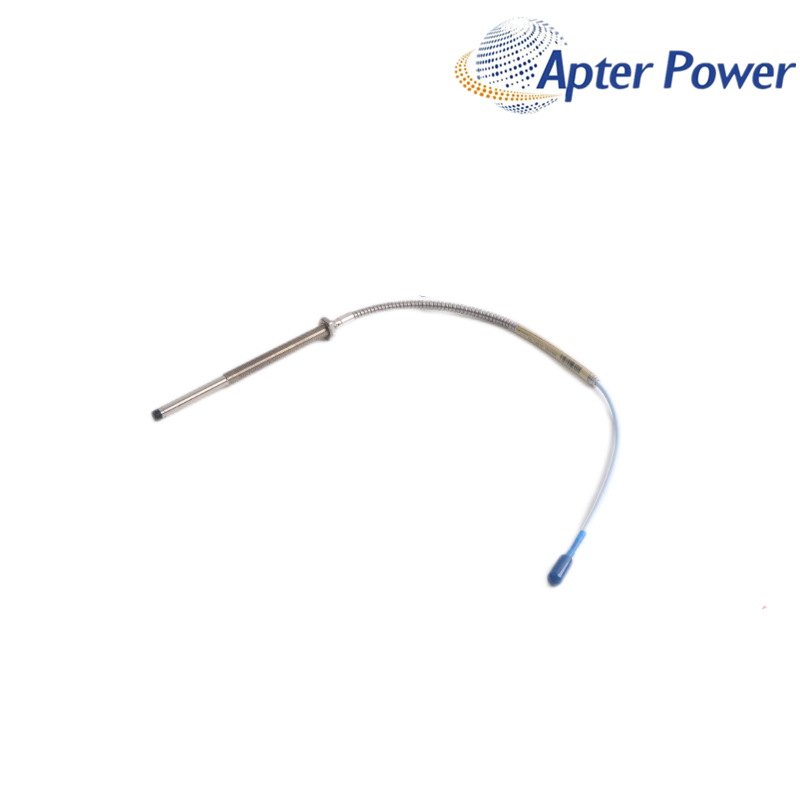

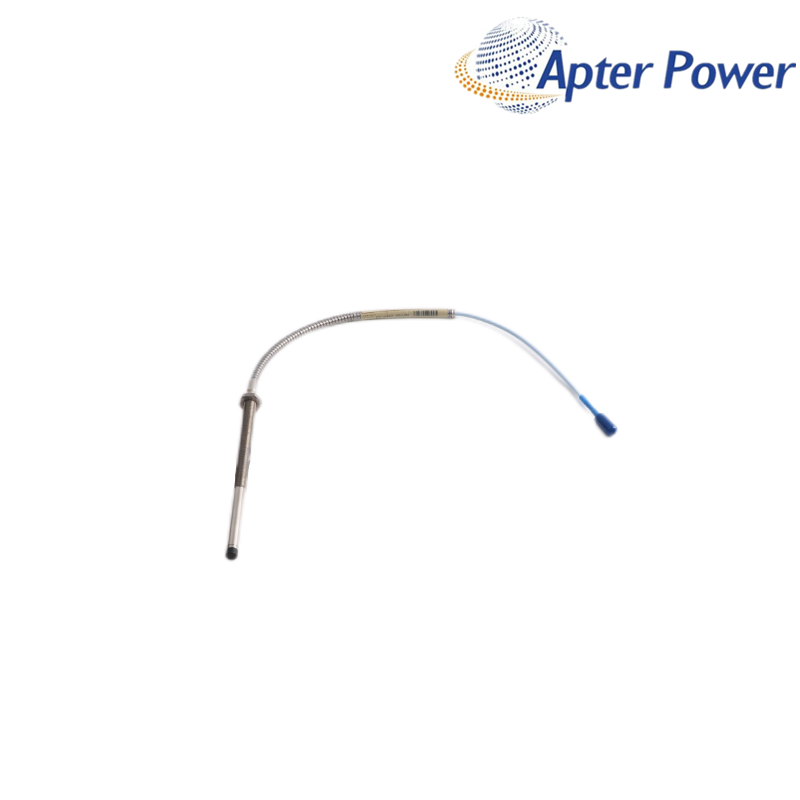

330104-05-15-05-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe with an armored cable construction. The product page leads with cable-route and delivered-configuration control because those conditions affect both the installation plan and the purchase request.
For 330104-05-15-05-02-00, the 150 mm case, 50 mm unthreaded section and 0.5 m lead should be considered together with the available route and service access. Cable protection reduces exposure but does not remove the need for clearance at bends, connectors or removal points.
330104-05-15-05-02-00 should be quoted from the complete ordering code and the project’s mounting context. Its 0.5 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Installation handoff
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | Metric proximity probe |
| Ordering family | 330104 |
| Thread | M10 × 1 |
| Cable armor | with armor |
| Unthreaded length | 50 mm |
| Overall case length | 150 mm |
| Integral cable length | 0.5 m |
| Cable / connector option | 02 — miniature coaxial ClickLoc connector, standard cable |
| Agency option | 00 — approval not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Data Sheet, 141194 Rev. AM. Values are limited to the manufacturer’s published ordering-code definitions for this configuration.
Technical note
For 330104-05-15-05-02-00, armor protects the cable route but does not eliminate bend, pinch-point or connector-access limits. Preserve the protected path and service clearance together; stop when the installed route forces loading or trapping of the cable.
Buyer and engineer support
The long case affects withdrawal space, locknut access and the armored cable path after the guard is refitted. Resolve service clearance on the drawing before the installation is closed.
First check connector seating and the full electrical length, then confirm probe gap, target condition and cable stress. Correct a physical chain problem before changing configuration or calibration.
No. Thread form alone does not establish compatibility. Match the 150 mm body, 0.5 m lead, cable option, required total system length and delivered marking to the installed configuration.
Yes, only if the selected official extension and matched Proximitor Sensor still form the specified complete system. Leave the 0.5 m probe lead intact rather than splicing it.
Keep the armored cable supported and clear of pinch points, sharp edges and bend stress. Do not use the armor as a reason to omit routing clearance or connector access.
Send the complete nameplate photograph, mounting drawing, target details, required total system length, existing Proximitor and extension labels, quantity, destination and any site approval requirement.
It changes the usable mounting stack relative to the 150 mm case. Compare engagement, locknut location and target reach on the actual drawing before releasing the order.
Supply support
Search references
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Technical document
Open the compact Baker Hughes document to review the 3300 XL 8 mm system and the official ordering information relevant to 330104-05-15-05-02-00. The shorter file keeps the essential manufacturer pages together for faster reference.
Document scope: The selected pages retain the official system specifications, ordering information and dimensional context relevant to this product family.
|
