Item NO.:
330104-05-10-10-02-05Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.8x24cmDescription:
TRANSDUCERPrice:

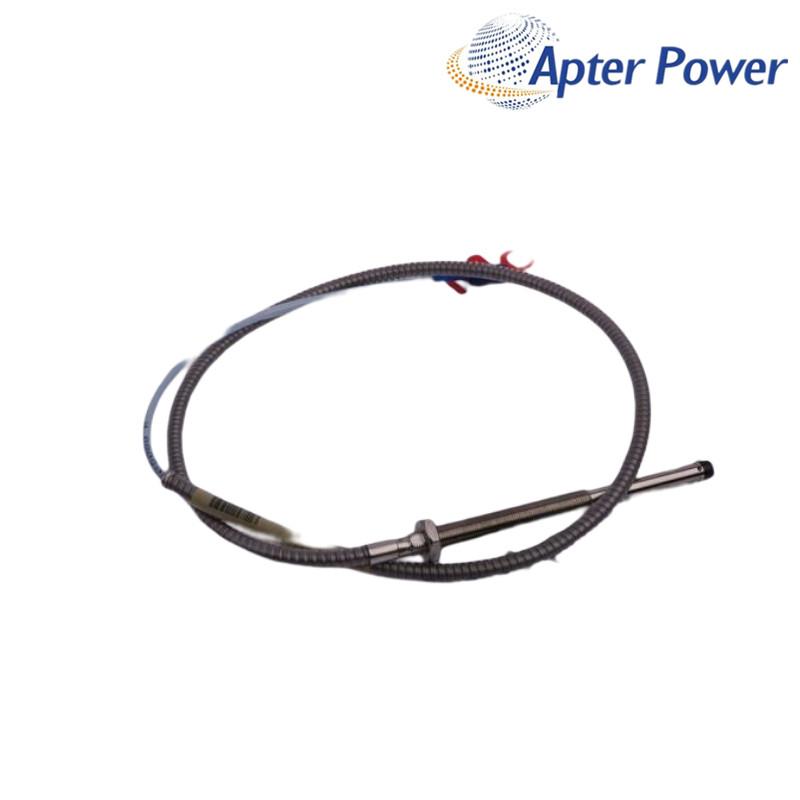

AskAn armored M10 x 1 probe with a 50 mm unthreaded section, 100 mm case, 1.0 m lead and multiple approvals.
330104-05-10-10-02-05 combines a 50 mm unthreaded section with a 100 mm armored M10 x 1 probe case. Threads begin behind the long smooth reach, making bracket passage and target position more important than overall case length alone.
The 1.0 m lead on 330104-05-10-10-02-05 uses the standard ClickLoc cable option without a connector protector. Its lead length forms part of the calibrated chain and must be combined with the extension cable expected by the Proximitor Sensor.
Approval option 05 identifies the multiple-approval execution of 330104-05-10-10-02-05. The complete mechanical geometry and supplied certification package should stay with the order code during a replacement review.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Armored metric probe |
| Thread | M10 x 1 |
| Unthreaded length | 50 mm |
| Overall case length | 100 mm |
| Total lead length | 1.0 m |
| Cable option | Standard ClickLoc; no connector protector |
| Agency option | 05 - multiple approvals |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Armor construction | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Probe temperature range | -52°C to +177°C operating and storage |
| Maximum M10 x 1 thread engagement | 15 mm |
| Recommended probe case torque | 11.2 N·m for standard forward-mount installation |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Its first 50 mm is smooth and unthreaded, so the mounting thread begins farther from the sensing tip. The bracket must pass the smooth section before useful thread engagement starts.
Its 1.0 m integral lead counts toward the calibrated system length. Use the cable length that completes the connected Proximitor Sensor requirement.
For the M10 x 1 thread, Bently Nevada lists 15 mm as the maximum engagement. The 50 mm smooth reach does not increase that engagement limit.
No. Option 02 supplies the standard ClickLoc arrangement without a connector protector, so environmental protection must be addressed by the installation.
No. The standard probe temperature limit is +177°C; a higher-temperature position calls for an ETR-family review rather than relying on the armored lead.
It selects the CSA, ATEX and IECEx approval execution. The delivered certificate package should be matched to the specific hazardous-area requirement.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
