Selection
- Confirm the 20 mm unthreaded length and 120 mm case geometry against the bracket, machine casing and target location.
- Match the 5.0 m lead to a 5 m Proximitor Sensor and retain the required M10 x 1 armored construction.
Item NO.:
330104-02-12-50-02-00Order(MOQ):
1Goods Stock:
26Payment:
T/TLead Time：
In stockWeight:
0.06KGDimension:
18.5x13x7.7cmDescription:
Proximity ProbePrice:

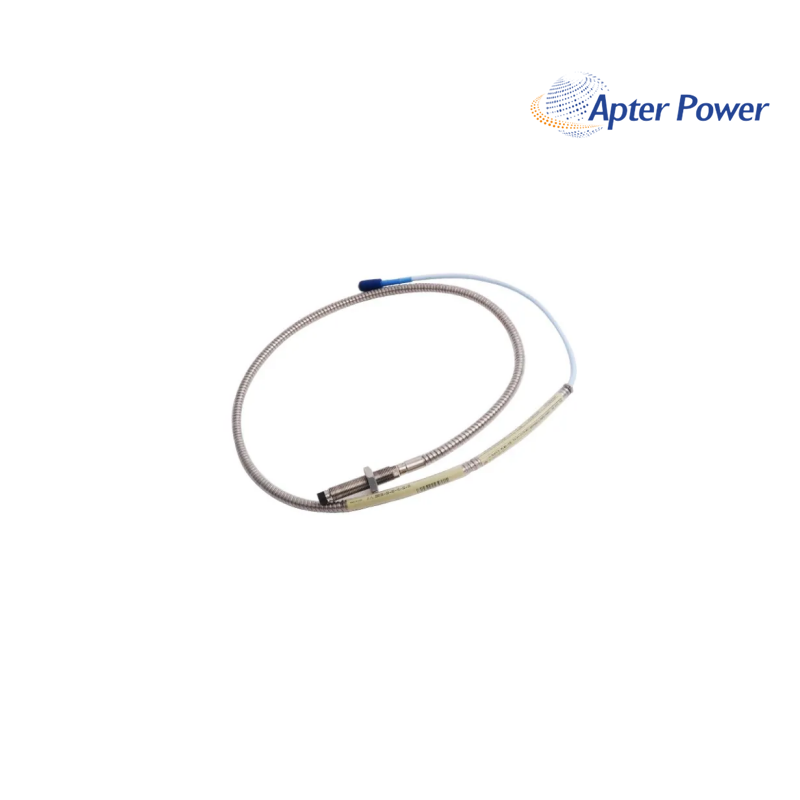

Ask330104-02-12-50-02-00 is a standard-mount, M10 x 1 armored probe for a matched Bently Nevada 3300 XL 8 mm proximity transducer system. Its ordering code specifies 20 mm of unthreaded length and a 120 mm overall case length.
330104-02-12-50-02-00 is a standard-mount, M10 x 1 armored probe for a matched Bently Nevada 3300 XL 8 mm proximity transducer system. Its ordering code specifies 20 mm of unthreaded length and a 120 mm overall case length.
330104-02-12-50-02-00 uses a 5.0 m integral lead with a miniature ClickLoc coaxial connector on standard cable and no connector protector. Code 00 identifies a configuration for which an agency approval option is not required.
330104-02-12-50-02-00 should be commissioned as part of the complete 5 m measurement chain. Installation depth, target material, initial gap, cable path and channel settings all influence the resulting system response.
Its 20 mm unthreaded section and 120 mm case make it the short-geometry option in this group. Compare those dimensions with the bracket depth, locknut position and required tip-to-target location rather than relying on the family number alone.
Measure the available insertion depth, M10 x 1 thread engagement, target clearance and space for the armored lead. The 20 mm unthreaded length must place the probe tip correctly without binding the 120 mm case.
The documented configuration is already a 5 m probe for a 5 m Proximitor Sensor. Adding an extension cable would change the required electrical length and is not a way to gain extra physical reach in that chain.
Keep at least a 25.4 mm bend radius, support the lead close to the route change and keep twisting or pulling force away from the ClickLoc joint. The short case does not reduce the cable-clearance requirement.
Compare gap, target condition and probe seating under the same speed, load and acquisition setup. This distinguishes a mounting or machine-state change from an electrical-chain issue.
The 20 mm unthreaded reach and 120 mm case may not place the tip at the same target location as a longer configuration. A correct replacement also needs the same thread, electrical length, connector and monitor context.
The supplied product is covered for 12 months under ApterPLC sales terms. Keep the complete product label, original packaging and transaction record so the exact unit can be identified quickly if support is needed.
