Mechanical fit
Compare the M10 × 1 thread, 20 mm unthreaded section and 100 mm case with the installed mounting arrangement.
Item NO.:
330104-02-10-10-02-00Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.16KGDimension:
1.8x1.6x126cmDescription:
Armored M10 × 1 Proximity ProbePrice:
AskAn armored 3300 XL 8 mm probe with a 20 mm unthreaded section, 100 mm case and 1.0 m lead for matched shaft-vibration and position systems.

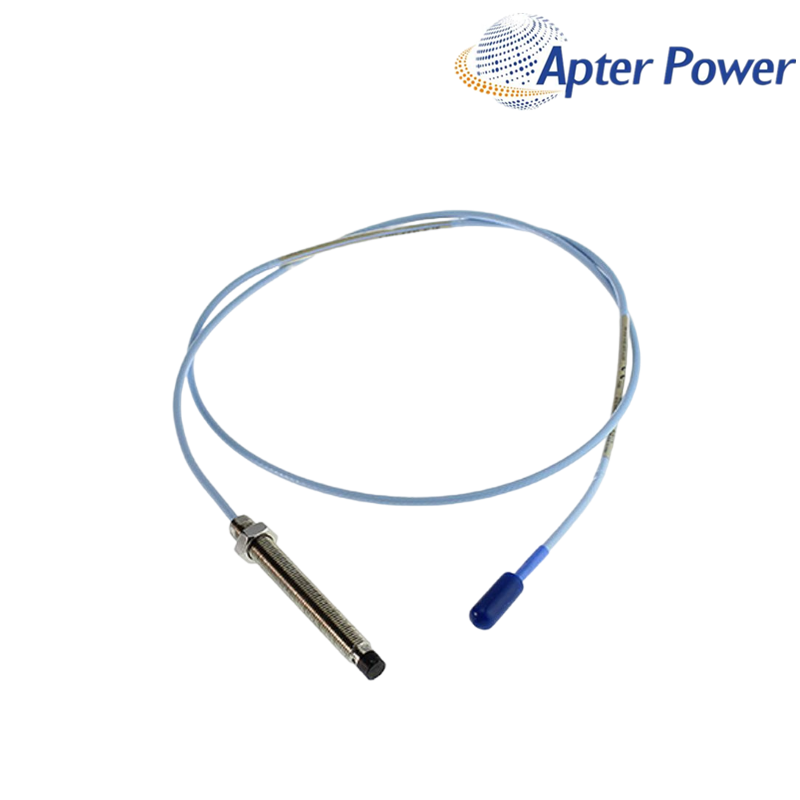

Bently Nevada 330104-02-10-10-02-00 is an armored M10 × 1 probe in the 3300 XL 8 mm proximity transducer family. Its order code defines a 20 mm unthreaded length, 100 mm overall case length and 1.0 m total lead.
The probe uses a miniature coaxial ClickLoc connector on standard cable and carries the no-approval option. For maintenance work, the complete mechanical geometry and the matching extension cable and Proximitor sensor matter more than the probe tip appearance alone.
Compare the M10 × 1 thread, 20 mm unthreaded section and 100 mm case with the installed mounting arrangement.
Keep the probe, extension cable and Proximitor sensor within the same 3300 XL 8 mm system and intended total length.
This version uses a miniature coaxial ClickLoc connector, standard cable and the no-approval suffix.
Record the installed gap or position reference and photograph the full probe label, cable joint and Proximitor label.
Confirm the complete order code, cable route and total electrical length; do not select the spare by thread size alone.
Verify the channel reading against the plant commissioning procedure and investigate any unstable signal as a complete loop issue.
| Product family | 3300 XL 8 mm proximity transducer system |
|---|---|
| Probe case | M10 × 1 thread with armor |
| Unthreaded length | 20 mm |
| Overall case length | 100 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A maintenance spare for matched 3300 XL 8 mm systems measuring shaft radial vibration or axial position on turbines, compressors, pumps and other rotating equipment where the installed M10 × 1 geometry must be retained.
Not automatically. The 20 mm unthreaded section, 100 mm case, insertion depth and cable route must suit the existing bracket and target before replacement.
The extension cable, Proximitor sensor family and intended total system length should remain a matched 3300 XL 8 mm chain.
No. Armor adds mechanical protection, but bend radius, connector protection and separation from damaging routes still need to follow the plant installation practice.
No. Use the complete order code because unthreaded length, case length, lead length, connector and approval options can differ within the same family.
Check the installed gap, connector condition, extension cable, total electrical length and Proximitor sensor as one signal chain rather than assuming the new probe is the only cause.
Send the full probe and Proximitor labels, mounting photo, extension-cable label, quantity, delivery country and required arrival date.
Labels and installed context are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around your shutdown plan.
Coverage begins on the shipment date unless the confirmed quotation states otherwise.
Coverage and available remedy follow the confirmed quotation and sales agreement.
We carefully review technical documents to match your exact hardware version. Send us a clear photo of the complete product label and tell us whether you need a datasheet, user manual or wiring diagram.
|
