Item NO.:
330104-00-24-10-02-0Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
1.5KGDimension:
5.1x20.3x33.0cmDescription:
ARMORED PROXIMITY PROBEPrice:

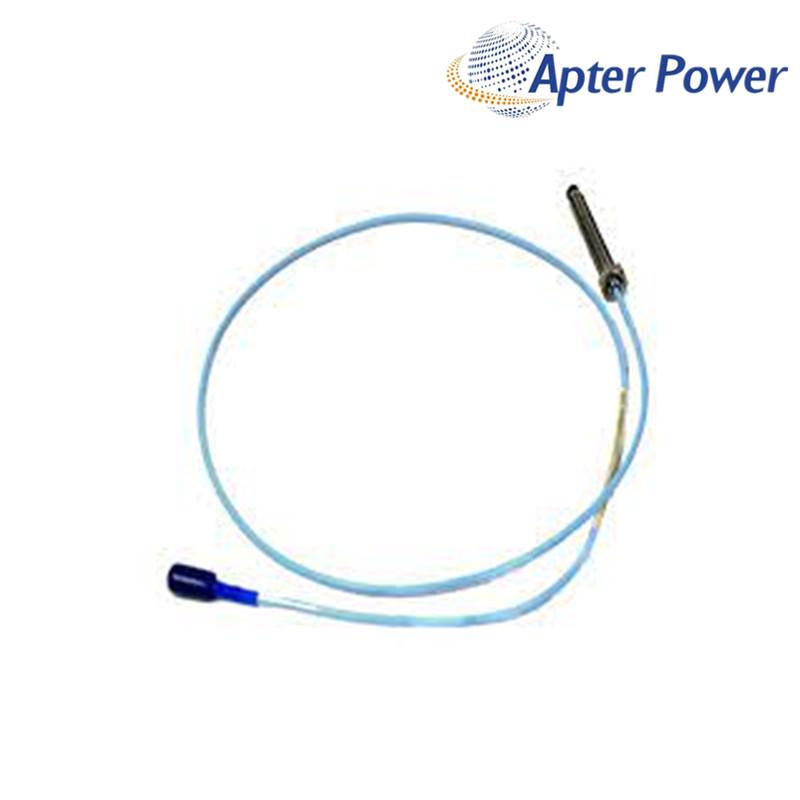

Ask330104-00-24-10-02-00 is a metric armored 3300 XL 8 mm proximity probe with an M10 × 1 thread, 0 mm unthreaded length and a 240 mm overall case. Its long body requires installation clearance to be checked separately from electrical compatibility.
330104-00-24-10-02-00 has a 1.0 m total probe length and may be used in a correctly configured 1 m system or combined with the appropriate extension cable for a longer supported system. The complete probe, cable and Proximitor labels should be reviewed together.
330104-00-24-10-02-00 uses connector option 02, meaning a standard cable and ClickLoc connector without a protector, and agency option 00. Route and protect the connection for the actual machine environment and do not infer approvals from a visually similar probe.
The total probe length is 1.0 m rather than 0.5 m, changing the extension-cable requirement and complete system-length calculation.
It can be considered for the documented 1 m probe-only configuration when the complete family and installed labels match.
Not without checking the mounting arrangement. The 240 mm case may change bracket position, insertion depth, withdrawal clearance and sensing-tip location.
No. The final 00 is the No Approvals option; classified projects require an appropriately approved configuration and verified markings.
Provide all connected-component labels, case and bracket dimensions, required total system length, connector condition, quantity and machine application.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
