Item NO.:
330104-00-24-05-02-0Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.8x24cmDescription:
ARMORED PROXIMITY PROBEPrice:

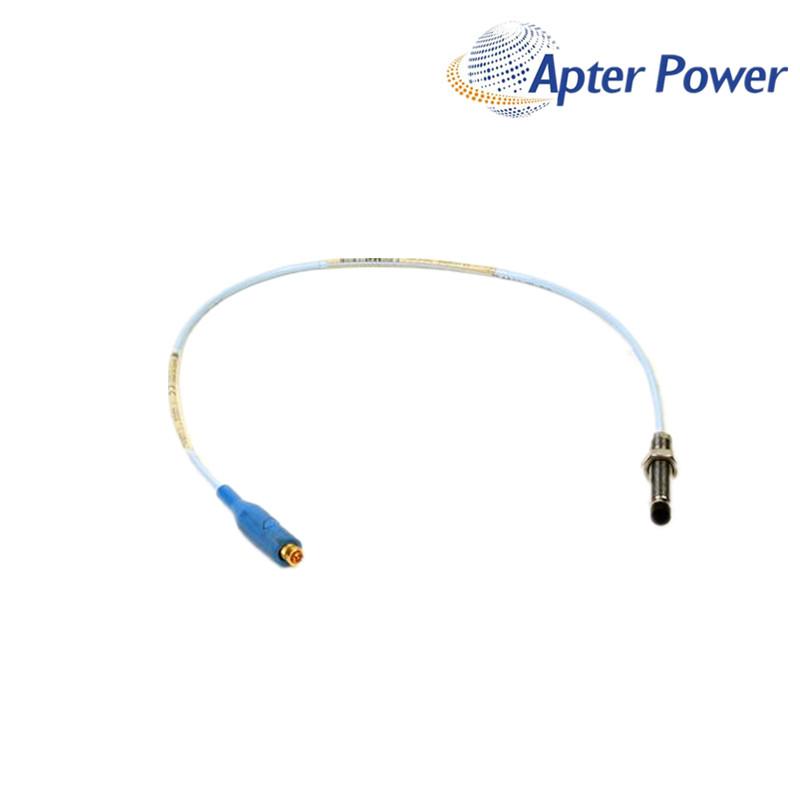

Ask330104-00-24-05-02-00 is a metric armored probe for the Bently Nevada 3300 XL 8 mm proximity system. The order code defines an M10 × 1 body with 0 mm unthreaded length and a 240 mm overall case length.
330104-00-24-05-02-00 has a 0.5 m total probe length, so its extension cable and Proximitor Sensor must be selected as one documented electrical chain. The longer case and short lead should both be checked against bracket, conduit and service-clearance constraints.
330104-00-24-05-02-00 uses a standard cable and ClickLoc connector without a protector, while the final 00 identifies the No Approvals option. It must not be accepted for a classified installation solely because a similar probe carries certifications.
No. Its 0.5 m total length changes the electrical chain, so the extension cable and Proximitor Sensor length must be reviewed together.
Select a compatible 3300 XL 8 mm cable that completes the probe to the connected 5 m or 9 m Proximitor system; verify the whole installed code set before ordering.
Confirm the 240 mm body envelope, bracket position, insertion path, withdrawal space and armored-lead departure before installation.
The final 00 is the No Approvals option. Use it only where that configuration is acceptable, or select and verify an appropriately approved order code.
Send the complete existing probe, cable and Proximitor labels, case and bracket dimensions, required system length, quantity and connector photographs.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
