Item NO.:
330104-00-17-05-02-00Order(MOQ):
1Goods Stock:
6Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.8x24cmDescription:
PROBEPrice:

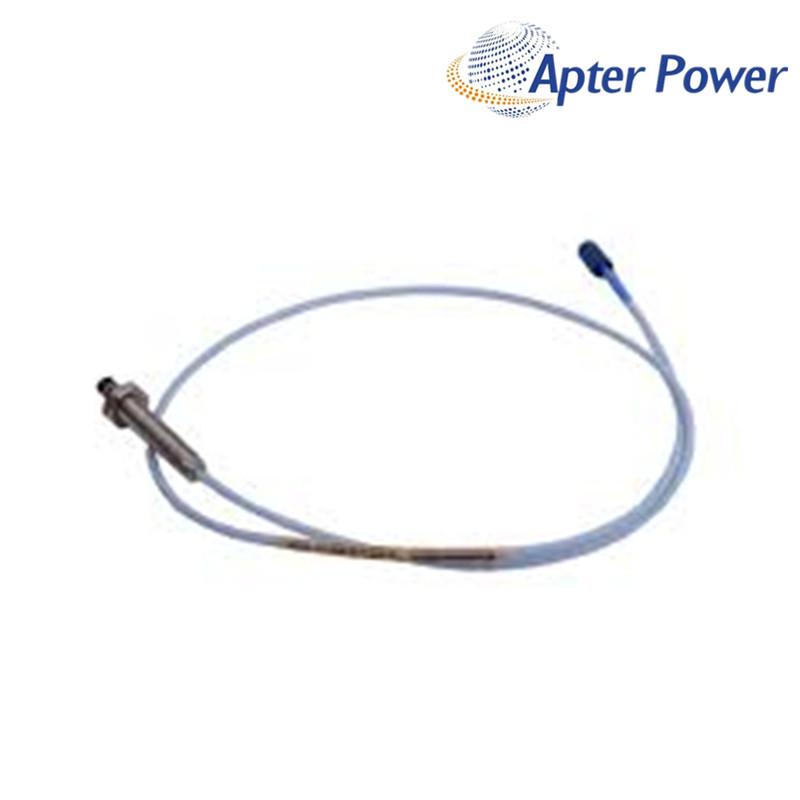

AskAn armored M10 × 1 probe with a 170 mm fully threaded case, 0.5 m total probe length, standard cable and the 00 No Approvals option.
330104-00-17-05-02-00 specifies a 170 mm fully threaded M10 × 1 probe with a 0.5 m total probe length, standard cable and stainless-steel armor. It is the sensing component of a correctly configured, interchangeable 3300 XL 8 mm proximity transducer system.
The longer body of 330104-00-17-05-02-00 supports applications that need the published 170 mm reach, while option 02 leaves the ClickLoc connection without a supplied protector. The 00 approval suffix denotes the No Approvals safe-area configuration.
Before selecting 330104-00-17-05-02-00, compare the installed case length, bracket position and combined probe-plus-extension-cable length. These details affect both sensing-tip placement and the Proximitor Sensor match.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 8 mm Proximity Transducer System |
| Component | Proximity probe |
| Thread | M10 × 1 |
| Probe tip diameter | 8.0 mm |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 303 or 304 stainless steel |
| Operating and storage temperature | −52 to +177 °C |
| Maximum case-to-lead pull strength | 330 N |
| Probe construction | Armored; standard cable |
| Armor material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Unthreaded length | 0 mm |
| Overall case length | 170 mm |
| Total probe length | 0.5 m |
| Nominal probe DC resistance | 7.45 ± 0.50 Ω |
| Armor maximum outside diameter | 7.67 mm |
| Armor ferrule maximum outside diameter | 9.5 mm |
| Connector protection | Not included |
| Approval option | 00 · No Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. The required body is 170 mm. A 10 mm reduction changes sensing reach and can alter bracket engagement, so the shorter probe is not a like-for-like mechanical substitute.
Yes, provided the extension cable and sensor are compatible 3300 XL 8 mm components. The 0.5 m total probe length plus 8.5 m cable creates the required 9.0 m chain.
Yes. Verify the manufacturer’s minimum probe-spacing and target-geometry guidance before installation; probe tips placed too closely can create electrical interference.
No. Armor provides mechanical protection but does not remove the probe’s pull-strength and bend-radius limits. A supported route protects the case-to-lead joint and ClickLoc connection.
Not as a default assumption. The probe is designed to seal differential pressure but is not pressure-tested before shipment. The user must safely contain and control leakage, and extreme-pH media require a specific compatibility review.
No. The 3300 XL 8 mm system specifies a 50.8 mm minimum shaft diameter and recommends a larger target where practical. A smaller shaft can change scale behavior and measurement accuracy.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
