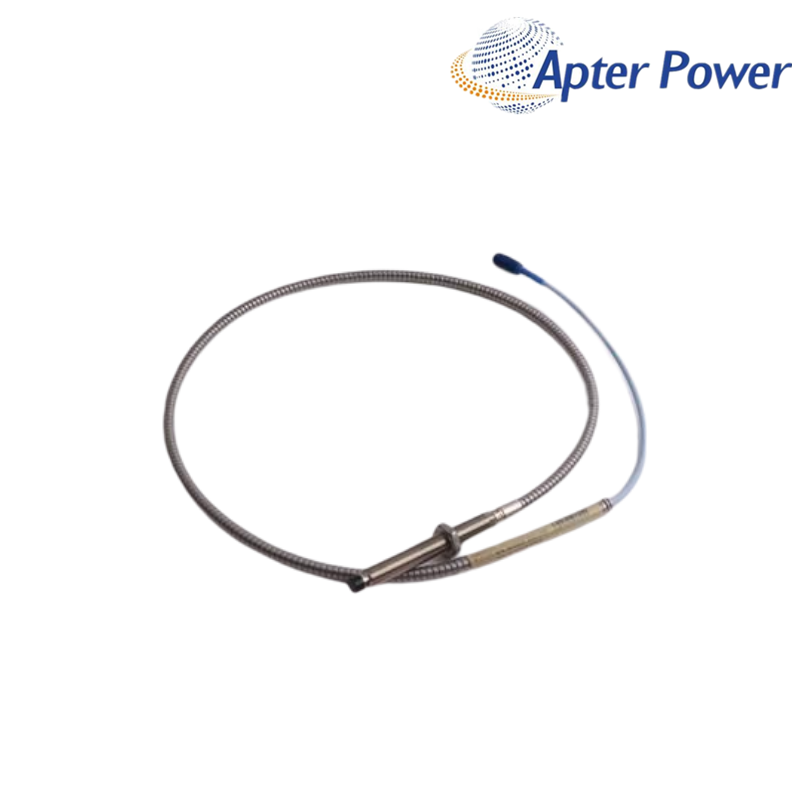

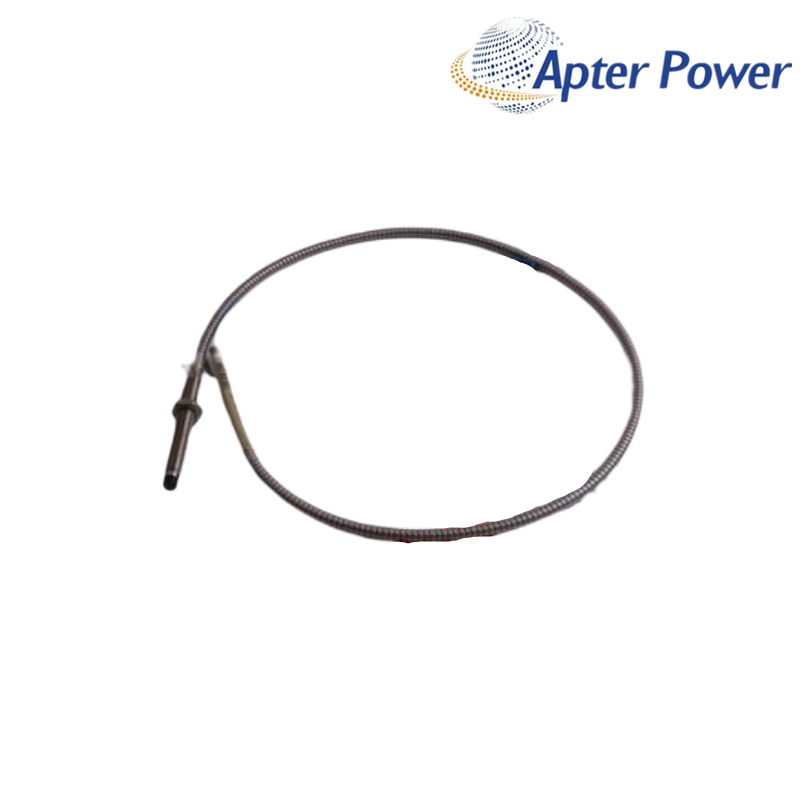

The flexible stainless-steel armor protects the lead, but its weight and bend path still affect the ClickLoc joint.
Item NO.:
330104-00-16-10-02-CNOrder(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
1KGDimension:
8x8x4cmDescription:
PROBEPrice:
AskAn armored M10 x 1 probe with a 160 mm case, 1.0 m lead, standard ClickLoc cable and the CN country-specific ordering option.
330104-00-16-10-02-CN combines an armored M10 x 1 probe body with a 160 mm overall case and no unthreaded section. The long threaded case supports installations where the sensing tip must reach through a deeper bracket while the lead receives added mechanical protection.
The 1.0 m integral lead on 330104-00-16-10-02-CN uses the standard miniature ClickLoc cable arrangement without a connector protector. Its lead length remains part of the calibrated 3300 XL 8 mm chain, so the extension cable must complete the total length required by the connected Proximitor Sensor.
The CN suffix on 330104-00-16-10-02-CN is a country-specific ordering option supported for the 330104 family. The delivered nameplate and applicable certificate package should still govern the approval decision for the installation.
The flexible stainless-steel armor protects the lead, but its weight and bend path still affect the ClickLoc joint.
Option 02 uses the standard ClickLoc arrangement without a connector protector.
The CN suffix belongs in the complete quotation code and should stay tied to the delivered label and applicable documents.
330104-00-16-10-02-CN has a 160 mm threaded case and no unthreaded section. That geometry changes both available thread engagement and sensing-tip position, so a shorter 330104 probe is not a direct mechanical substitute even when the thread and electrical family match.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Armored standard-mount proximity probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 160 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature ClickLoc; standard cable |
| Cable protection | Flexible stainless-steel armor |
| Country-specific option | CN |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The thread matches, but the 160 mm case changes reach and service clearance. Compare the installed bracket drawing and target position before approving the replacement.
Choose the cable that makes the 1.0 m probe lead equal the total electrical length specified by the connected 3300 XL Proximitor Sensor.
No. Option 02 is the standard ClickLoc cable arrangement without a protector, which can affect available connection protection and space.
Keep CN in the complete order code and include the required certificate context so the offered execution can be checked against the delivered label.
Start with bracket depth, thread engagement and target position. The long case can create a mechanical reach problem before the electrical chain is considered.
A full probe label, threaded-body view, armored-lead route, connector and Proximitor Sensor label provide the strongest matching context.
For a faster fit review, send the full label, bracket depth, target position and connected Proximitor Sensor system length.
Customers may type the same model with different spacing, punctuation or brand wording.
These frequently confused searches are not interchangeable with 330104-00-16-10-02-CN. Confirm the complete nameplate before quotation.
