Item NO.:
330104-00-16-05-02-00Order(MOQ):
1Goods Stock:
6Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.8x24cmDescription:
PROBEPrice:

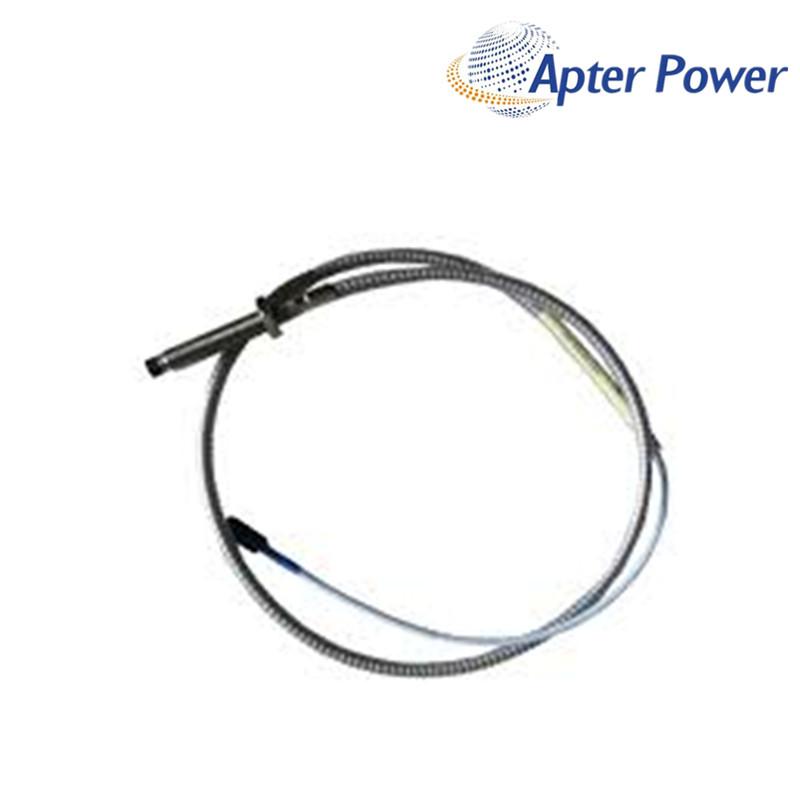

AskAn armored M10 × 1 probe with a 160 mm fully threaded case, 0.5 m total probe length, standard cable and the 00 No Approvals option.
330104-00-16-05-02-00 is a 160 mm M10 × 1 armored probe for the 3300 XL 8 mm proximity transducer system. The 00 unthreaded code indicates a fully threaded case, and the 05 code specifies a 0.5 m total probe length.
Option 02 on 330104-00-16-05-02-00 provides standard cable with the miniature ClickLoc connector but no protector. Its stainless-steel armor supports mechanically exposed routing, while the final 00 identifies the No Approvals safe-area configuration.
Because 330104-00-16-05-02-00 is one element of a correctly configured, interchangeable 3300 XL 8 mm system, probe total length and extension-cable length must add up to the required Proximitor Sensor system length.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 8 mm Proximity Transducer System |
| Component | Proximity probe |
| Thread | M10 × 1 |
| Probe tip diameter | 8.0 mm |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 303 or 304 stainless steel |
| Operating and storage temperature | −52 to +177 °C |
| Maximum case-to-lead pull strength | 330 N |
| Probe construction | Armored; standard cable |
| Armor material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Unthreaded length | 0 mm |
| Overall case length | 160 mm |
| Total probe length | 0.5 m |
| Nominal probe DC resistance | 7.45 ± 0.50 Ω |
| Armor maximum outside diameter | 7.67 mm |
| Armor ferrule maximum outside diameter | 9.5 mm |
| Connector protection | Not included |
| Approval option | 00 · No Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. The installation must allow the 160 mm body and armored lead to be removed without forced bending. Insufficient clearance can turn replacement into a bracket or cable-damage risk.
No. The ordered 0.5 m total probe length is part of the system electrical length. Cutting or splicing the cable changes the configured chain and invalidates normal length matching with the extension cable and Proximitor Sensor.
No. This configuration has a 0.5 m total probe length. It needs a compatible extension cable and Proximitor Sensor whose specified system length matches the completed chain.
No. API 670 performance applies to the qualifying complete 3300 XL system, not to an isolated probe. The sensor, extension cable, target and installation conditions remain part of that assessment.
Not automatically. Standard system specifications are based on an AISI 4140 target. A different target material can change scale behavior and requires the appropriate manufacturer-supported calibration decision.
No. The output belongs to the complete measurement chain. Evaluate family pairing, total electrical length and both ClickLoc connections before identifying the failed component.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
