Item NO.:
330104-00-15-10-01-CNOrder(MOQ):
1Goods Stock:
8Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
SENSORPrice:

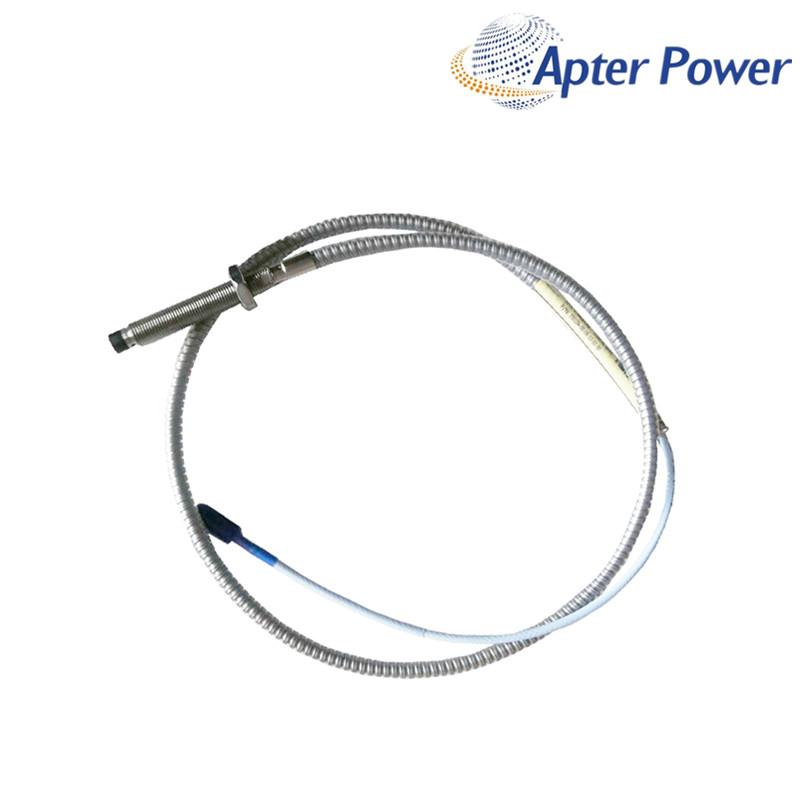

AskAn armored 1.0 m M10 × 1 probe with a 150 mm case, protected ClickLoc connector and China hazardous-area ordering option.
330104-00-15-10-01-CN is an armored M10 × 1 probe for the 3300 XL 8 mm proximity transducer system. The order code specifies a fully threaded 150 mm case, 1.0 m total probe length and a standard ClickLoc cable with connector protection.
Flexible stainless-steel armor on 330104-00-15-10-01-CN protects the lead from mechanical damage along the machine route. It does not replace the project's hazardous-area design, while the CN suffix provides the manufacturer's China hazardous-area ordering option for applicable approvals.
A reliable selection treats 330104-00-15-10-01-CN as one component in a correctly configured, interchangeable 3300 XL 8 mm system. Probe and extension-cable lengths must add up to the Proximitor Sensor system length.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 8 mm Proximity Transducer System |
| Component | Proximity probe |
| Thread | M10 × 1 |
| Probe tip diameter | 8.0 mm |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 303 or 304 stainless steel |
| Operating and storage temperature | −52 to +177 °C |
| Maximum case-to-lead pull strength | 330 N |
| Probe construction | Armored; standard cable |
| Armor material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Unthreaded length | 0 mm |
| Overall case length | 150 mm |
| Total probe length | 1.0 m |
| Nominal probe DC resistance | 7.59 ± 0.50 Ω |
| Armor maximum outside diameter | 7.67 mm |
| Armor ferrule maximum outside diameter | 9.5 mm |
| Connector protection | Included |
| Approval option | CN · China hazardous-area ordering option |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No, not without a configuration review. The official order structures distinguish armor, case geometry, lead construction and connector options; verify both mounting fit and the complete 3300 XL 8 mm chain.
Yes, but only if it belongs to the compatible 3300 XL 8 mm family and preserves the total electrical length specified for the connected Proximitor Sensor.
No. Its configured lead option is standard cable with a protected ClickLoc connector, not FluidLoc construction. Select a manufacturer-supported FluidLoc configuration when that boundary is required.
No. Recheck insertion depth, target gap, rear clearance and connector access before retaining the bracket position.
No. First confirm component identities, total system length, connector engagement and mechanical installation; make adjustments only after the installed chain is verified.
Provide the three component nameplates, mounting and cable-route photos, required approval markings and any environmental requirement such as armor or FluidLoc.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
