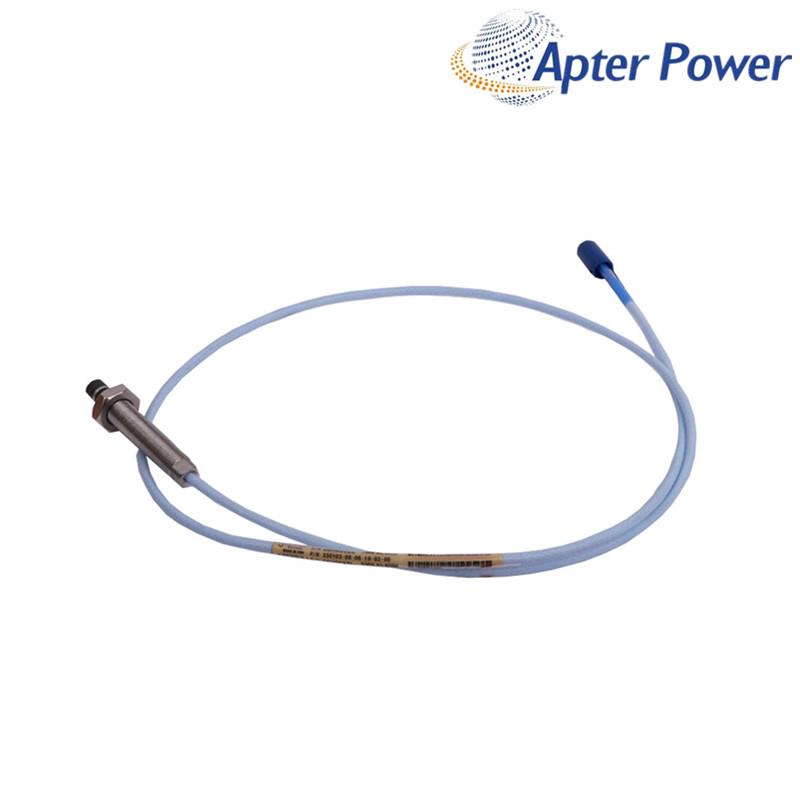

Bently Nevada 330104-00-15-05-02-00 3300 XL 8 mm Armored Proximity Probe

Products
330104-00-15-05-02-00 3300 XL 8 mm Armored Proximity Probe
330104-00-15-05-02-00 3300 XL 8 mm Armored Proximity Probe
330104-00-15-05-02-00 3300 XL 8 mm Armored Proximity Probe

Bently Nevada 330104-00-15-05-02-00 3300 XL 8 mm Armored Proximity Probe

An armored M10 × 1 probe with a 150 mm fully threaded case, 0.5 m total probe length, standard cable and the 00 No Approvals option.

  • Item NO.:

    330104-00-15-05-02-00

  • Order(MOQ):

    1

  • Goods Stock:

    8

  • Payment:

    T/T

  • Lead Time：

    In stock

  • Weight:

    0.3KG

  • Dimension:

    8.3x7x10cm

  • Description:

    PROBE

  • Price:

    Ask
Inquiry now
BENTLY NEVADA · CONDITION MONITORING
3300 XL 8 mm
330104-00-15-05-02-00

3300 XL 8 mm Armored Proximity Probe

An armored M10 × 1 probe with a 150 mm fully threaded case, 0.5 m total probe length, standard cable and the 00 No Approvals option.

MANAGERJimPei
WHATSAPP / PHONE+8618020776782EMAILsales1@apterpower.com
01

Product Description

330104-00-15-05-02-00 is a 3300 XL 8 mm armored proximity probe with an M10 × 1 thread, a fully threaded 150 mm case and a 0.5 m total probe length with standard cable. Connector option 02 uses the miniature ClickLoc connection without a supplied protector.

The stainless-steel armor on 330104-00-15-05-02-00 helps protect the lead in mechanically exposed routes, while the 150 mm body defines sensing reach and removal clearance. Its 00 approval suffix identifies the manufacturer's No Approvals configuration for safe-area use.

Selection of 330104-00-15-05-02-00 should keep the complete system in view: the 0.5 m total probe length plus extension-cable length must match the connected 3300 XL Proximitor Sensor requirement.

Configuration Snapshot

Base number
330104 · M10 × 1 probe with armor
Unthreaded length
00 · 0 mm
Overall case length
15 · 150 mm
Total probe length
05 · 0.5 m
Connector / cable
02 · ClickLoc connector, standard cable
Approval option
00 · No Approvals
ApterPLC Bently Nevada signal-chain sourcing support
02

Engineering Considerations

Operating Environment

  • The PPS probe tip and stainless-steel case are suited to the published standard probe temperature range when the complete installed system remains within its limits.
  • This order code uses standard cable rather than FluidLoc construction, so it should not be selected where cable-interior liquid migration is a defined design concern.
  • Option 02 leaves the ClickLoc joint without a supplied protector. The installation must provide appropriate support and environmental protection.

Diagnostics & Protection

  • Flexible stainless-steel armor protects the lead from mechanical exposure but does not make the cable a pulling member.
  • Plan the route within the published bend and pull limits, with strain managed away from the case-to-lead transition and connector.
  • When a channel changes after replacement, verify family pairing, total electrical length and both ClickLoc joints before identifying the probe as the failed component.

Technical Specifications

Manufacturer Bently Nevada
System family 3300 XL 8 mm Proximity Transducer System
Component Proximity probe
Thread M10 × 1
Probe tip diameter 8.0 mm
Probe tip material Polyphenylene sulfide (PPS)
Case material AISI 303 or 304 stainless steel
Operating and storage temperature −52 to +177 °C
Maximum case-to-lead pull strength 330 N
Probe construction Armored; standard cable
Armor material Flexible AISI 302 or 304 stainless steel with FEP outer jacket
Unthreaded length 0 mm
Overall case length 150 mm
Total probe length 0.5 m
Nominal probe DC resistance 7.45 ± 0.50 Ω
Armor maximum outside diameter 7.67 mm
Armor ferrule maximum outside diameter 9.5 mm
Connector protection Not included
Approval option 00 · No Approvals
Place of shipment Xiamen, China
Delivery Time 1-3 days
Quantity 100% New Original
Minimum Order Quantity 1pc
03

Alternative Names

3301040015050200330104 00 15 05 02 00330104/00/15/05/02/00
04

Frequently Asked Questions

01Can 330104-00-15-05-02-00 replace a 140 mm or 160 mm probe when the thread and total probe length are the same?

No. The 150 mm case is part of the mechanical configuration. A neighboring case length changes sensing-tip position and withdrawal clearance, so it is not a fit-equivalent spare.

02Can 330104-00-15-05-02-00 remain with an existing 4.5 m extension cable and 5 m Proximitor Sensor during a like-for-like repair?

Yes, provided all components belong to the 3300 XL 8 mm family. Its 0.5 m total probe length and a 4.5 m extension cable form the required 5.0 m electrical chain.

03What is the safe approach if a new bracket would engage more than 15 mm of thread on 330104-00-15-05-02-00?

Revise the bracket arrangement before installation. The published maximum engagement for an M10 × 1 probe is 15 mm; excessive engagement can cause binding and complicate future removal.

04Is 330104-00-15-05-02-00 a suitable choice where oil can migrate inside the probe cable toward an enclosure?

Not by default. The order code specifies standard cable rather than FluidLoc construction. Select a manufacturer-supported FluidLoc configuration where internal oil migration is a credible path.

05Can 330104-00-15-05-02-00 serve as the sole pressure boundary between process fluid and the surrounding area?

Not as a default assumption. The probe is designed to seal differential pressure but is not pressure-tested before shipment; verify containment for the application or request a pressure-seal test where required.

06Can 330104-00-15-05-02-00 return to a wet or washdown area with its ClickLoc joint left exposed?

Not without a site-approved protection method. Option 02 has no supplied protector, and Bently Nevada recommends connector protectors for increased environmental protection.
