Item NO.:
330104-00-14-05-02-00Order(MOQ):
1Goods Stock:
6Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
PROBEPrice:

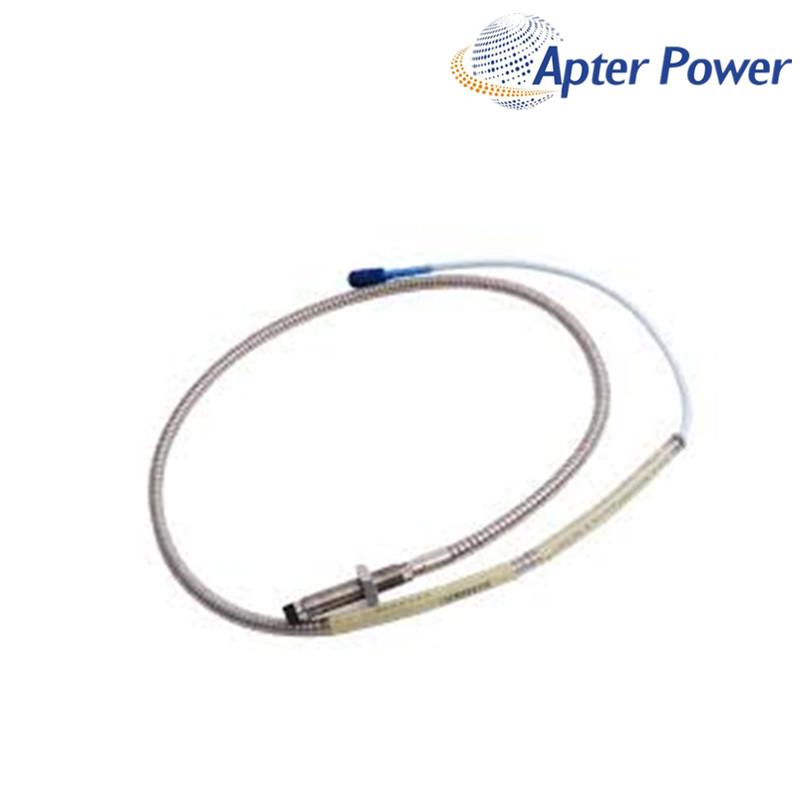

AskAn armored M10 × 1 probe with a 140 mm fully threaded case, 0.5 m total probe length, standard cable and the 00 No Approvals option.
330104-00-14-05-02-00 is a fully threaded M10 × 1 armored probe with a 140 mm case and a 0.5 m total probe length with standard cable. It belongs to the 3300 XL 8 mm system and uses the miniature ClickLoc connection without a supplied protector.
The shorter 140 mm body makes 330104-00-14-05-02-00 distinct from otherwise similar 150, 160 and 170 mm configurations. Stainless-steel armor protects the cable route, while the 00 suffix defines the No Approvals safe-area option.
For a dependable measurement chain, 330104-00-14-05-02-00 should be combined with the extension-cable length required by the installed Proximitor Sensor. Thread size alone does not confirm mechanical reach or electrical length.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 8 mm Proximity Transducer System |
| Component | Proximity probe |
| Thread | M10 × 1 |
| Probe tip diameter | 8.0 mm |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 303 or 304 stainless steel |
| Operating and storage temperature | −52 to +177 °C |
| Maximum case-to-lead pull strength | 330 N |
| Probe construction | Armored; standard cable |
| Armor material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Unthreaded length | 0 mm |
| Overall case length | 140 mm |
| Total probe length | 0.5 m |
| Nominal probe DC resistance | 7.45 ± 0.50 Ω |
| Armor maximum outside diameter | 7.67 mm |
| Armor ferrule maximum outside diameter | 9.5 mm |
| Connector protection | Not included |
| Approval option | 00 · No Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Not without a site-approved protection method. Option 02 has no supplied protector, and Bently Nevada recommends connector protection for increased environmental protection.
No. The electrical chain is the controlling condition. Its 0.5 m total probe length must be added to the extension cable and matched to the connected Proximitor Sensor length.
Not solely. The family supports those applications, but the complete transducer chain, target geometry and application guidance still determine whether the arrangement is suitable.
No. The published minimum bend radius is 25.4 mm. A tighter route can place unnecessary mechanical stress on the cable and connector, so revise the conduit path.
No. The final 00 configuration carries no hazardous-area approval. A classified location requires the appropriate complete approval code and matching delivered markings.
Potentially, because the family supports defined backward compatibility. Verify component types and total system length; when XL and non-XL parts are mixed, performance follows the non-XL 3300 5 mm or 8 mm system specification.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
