Threaded reach
A 0 mm unthreaded code means the case is threaded to the sensing-end region; confirm bracket engagement.
Item NO.:
330104-00-12-05-02-00Order(MOQ):
1Goods Stock:
6Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
5.3x3.2x10cmDescription:
PROBEPrice:

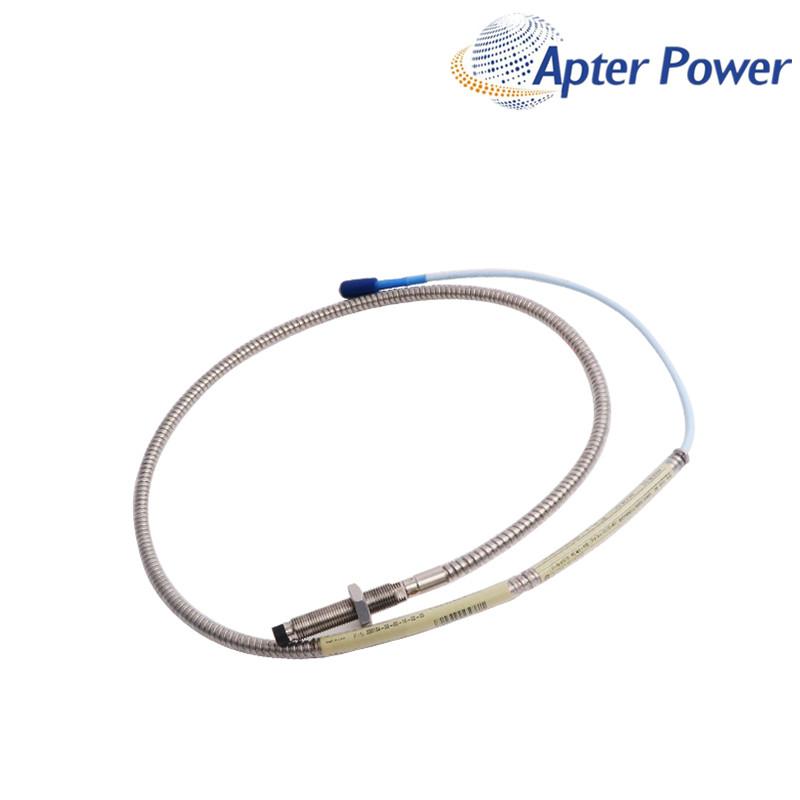

AskAn armored M10 × 1 probe with a fully threaded 120 mm case, 0.5 m lead and standard ClickLoc cable.
330104-00-12-05-02-00 is identified as an armored M10 × 1 probe with a fully threaded 120 mm case, 0.5 m lead and standard ClickLoc cable.
For 330104-00-12-05-02-00, the full coded configuration and its connected system should be checked together. A matching connector or similar appearance does not establish interchangeability.
Before quoting 330104-00-12-05-02-00, provide the complete label and photos of the mounting point, cable route and connected equipment so the selected part can be verified against the installed chain.
A 0 mm unthreaded code means the case is threaded to the sensing-end region; confirm bracket engagement.
Allow installation and withdrawal clearance for the 120 mm armored case.
Match the 0.5 m probe lead plus extension cable to the connected Proximitor Sensor.
| System family | 3300 XL 8 mm Proximity Transducer System |
|---|---|
| Probe thread | M10 × 1 |
| Probe construction | Armored |
| Nominal system sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear range | 2.0 mm (80 mils) |
| Frequency response | 0 to 10 kHz, +0/-3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Unthreaded length | 0 mm |
| Overall case length | 120 mm |
| Total probe length | 0.5 m |
| Connector / cable | Standard ClickLoc cable; no connector protector |
| Agency approval | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It has a fully threaded 120 mm case, 0.5 m armored lead and option 02 standard ClickLoc cable without a connector protector. Thread size alone does not identify the configuration.
Not automatically. Case length changes mounting reach and removal clearance, so bracket depth and target position must be verified.
The 0.5 m probe lead must be added to the extension-cable length, and the total must match the required 3300 XL 8 mm Proximitor system length.
No. Option 02 does not include a connector protector. Any environmental-protection requirement should be stated before quotation.
Provide the complete probe nameplate, mounting depth or bracket drawing, extension-cable and Proximitor nameplates, connector photos, quantity and destination.
The supplied product is covered for 12 months under ApterPLC's sales terms. Retain the product nameplate, packaging and transaction record for warranty assessment.
|
