Item NO.:
3301040010100205Order(MOQ):
1Goods Stock:
38Payment:
T/TLead Time：
In stockWeight:
0.2KGDimension:
20.5x22.4x3.3cmDescription:
PROBEPrice:
AskRoute and configuration

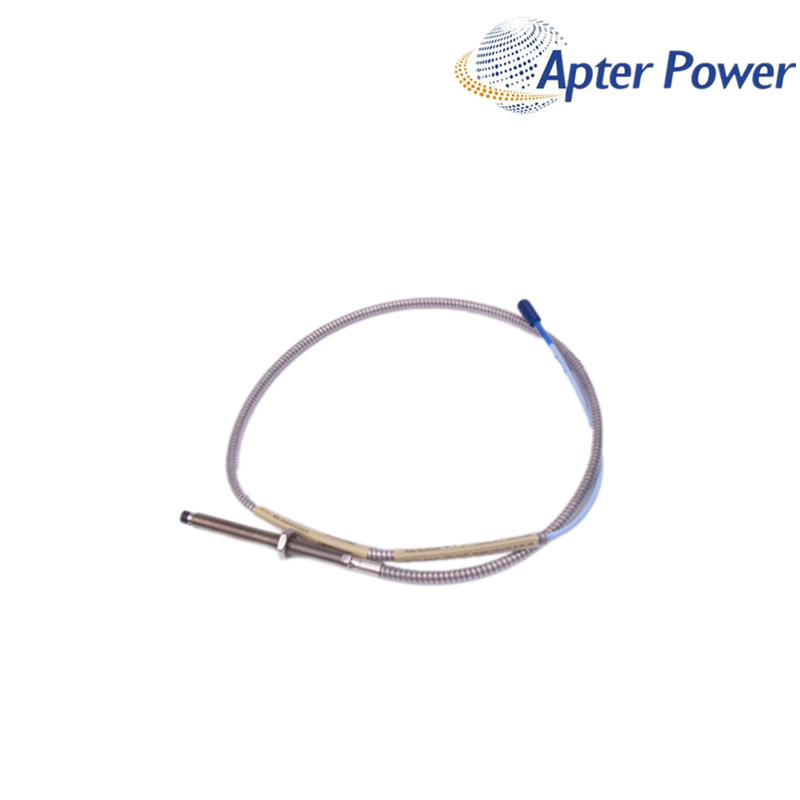

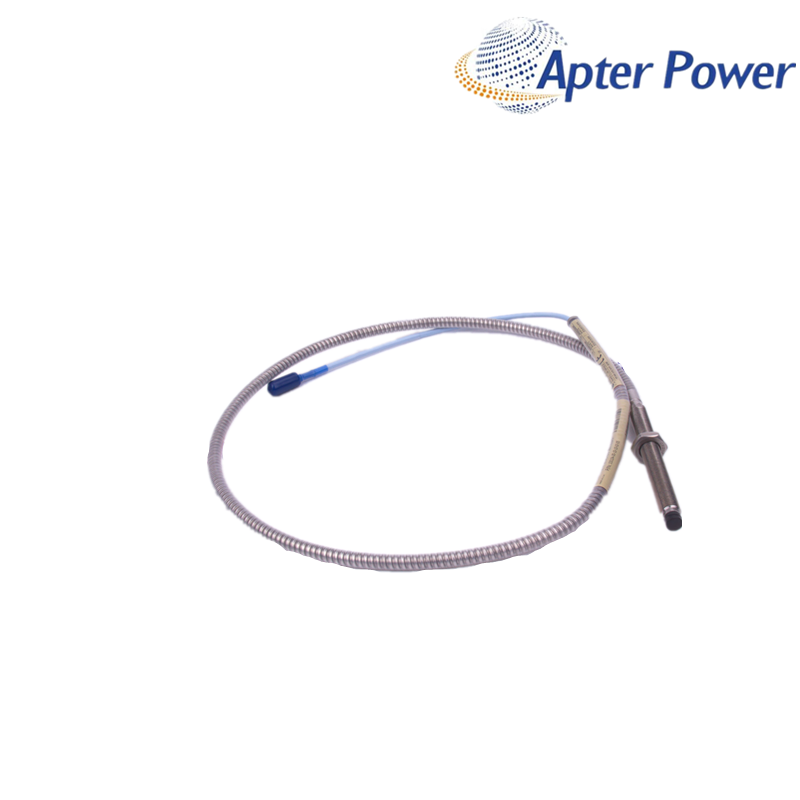

330104-00-10-10-02-05 is a Bently Nevada 3300 XL 8 mm metric proximity probe with an armored cable construction. The product page leads with cable-route and delivered-configuration control because those conditions affect both the installation plan and the purchase request.
For 330104-00-10-10-02-05, the 100 mm case, 0 mm unthreaded section and 1.0 m lead should be considered together with the available route and service access. Cable protection reduces exposure but does not remove the need for clearance at bends, connectors or removal points.
330104-00-10-10-02-05 should be quoted from the complete ordering code and the project’s mounting context. Where the order code includes the -05 selection, compare the delivered marking and manufacturer installation conditions with the project requirement before release.
Installation handoff
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | Metric proximity probe |
| Ordering family | 330104 |
| Thread | M10 × 1 |
| Cable armor | with armor |
| Unthreaded length | 0 mm |
| Overall case length | 100 mm |
| Integral cable length | 1.0 m |
| Cable / connector option | 02 — miniature coaxial ClickLoc connector, standard cable |
| Agency option | 05 — CSA, ATEX and IECEx approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Data Sheet, 141194 Rev. AM. Values are limited to the manufacturer’s published ordering-code definitions for this configuration.
Technical note
For 330104-00-10-10-02-05, the -05 ordering selection must be checked against the delivered marking and the manufacturer installation conditions for the project. It does not independently approve the completed installation. Stop release when the site requirement, route or delivered configuration does not match.
Buyer and engineer support
Compare the delivered marking and the manufacturer installation conditions with the project classification and local environment. The -05 selection does not by itself approve the completed installation.
Send the complete nameplate photograph, mounting drawing, target details, required total system length, existing Proximitor and extension labels, quantity, destination and any site approval requirement.
It changes the usable mounting stack relative to the 100 mm case. Compare engagement, locknut location and target reach on the actual drawing before releasing the order.
The body length and armored cable exit affect target reach, locknut access and rear service space. Confirm the full envelope on the mounting drawing before the outage.
Compare the 100 mm case with bracket thickness, locknut travel, target location and rear cable clearance. Stop before installation if the drawing does not leave safe adjustment for the operating gap.
Choose the manufacturer extension-cable length that combines with the probe lead to make the total required by the matched five- or nine-metre Proximitor Sensor. Do not field-splice the probe cable.
First check connector seating and the full electrical length, then confirm probe gap, target condition and cable stress. Correct a physical chain problem before changing configuration or calibration.
Supply support
Search references
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Technical document
Open the compact Baker Hughes document to review the 3300 XL 8 mm system and the official ordering information relevant to 330104-00-10-10-02-05. The shorter file keeps the essential manufacturer pages together for faster reference.
Document scope: The selected pages also retain the official hazardous-area approvals and conditions of safe use for the 05 agency option.
|
