Item NO.:
330104-00-09-05-02-00Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
PROBEPrice:

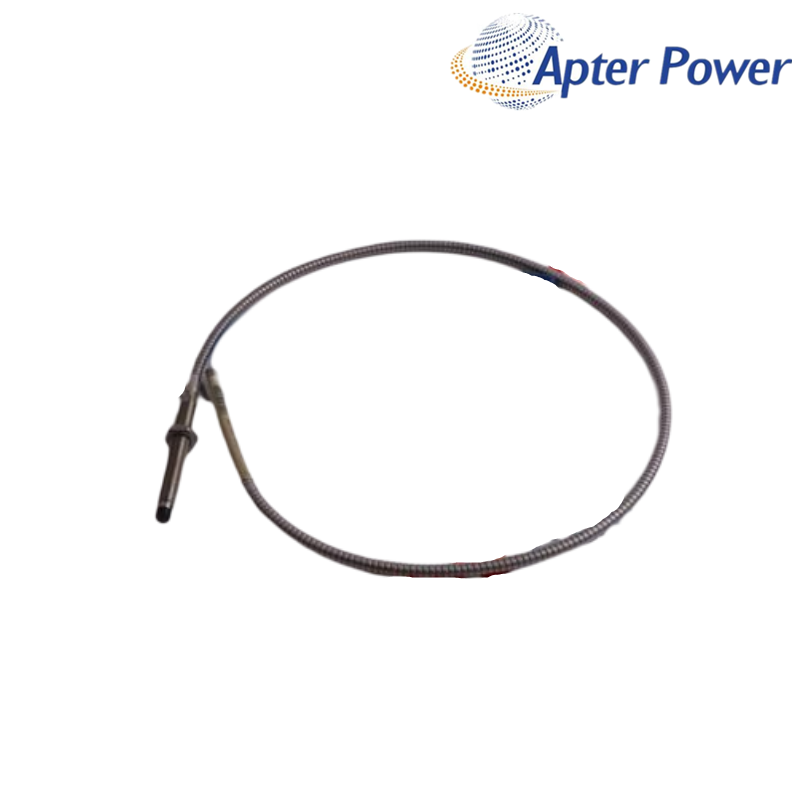

AskAn armored M10 x 1 probe with a fully threaded 90 mm case, a 0.5 m lead and standard ClickLoc cable.
Built for the 3300 XL 8 mm system, 330104-00-09-05-02-00 combines an armored lead with an M10 x 1 threaded probe body. Its 00 unthreaded option and 09 case code produce a fully threaded 90 mm mounting length.
A 0.5 m total lead makes 330104-00-09-05-02-00 a short-lead configuration. The connected extension cable therefore provides the remaining length needed by the Proximitor Sensor, while the stainless-steel armor adds mechanical protection along the probe lead.
Option 02 is the standard miniature ClickLoc cable without a connector protector, and the final 00 selects no agency approval. These fields help distinguish 330104-00-09-05-02-00 from visually similar armored probes with different cable hardware or approval scope.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Armored metric probe |
| Thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 90 mm |
| Total lead length | 0.5 m |
| Cable option | Standard ClickLoc; no connector protector |
| Agency option | 00 - approval not required |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Armor construction | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Probe temperature range | -52°C to +177°C operating and storage |
| Maximum M10 x 1 thread engagement | 15 mm |
| Recommended probe case torque | 11.2 N·m for standard forward-mount installation |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The M10 x 1 thread may match, but the fully threaded 90 mm case changes target reach and withdrawal clearance. Compare the bracket depth and installed sensing position before selecting it.
The 0.5 m probe lead forms part of the calibrated length. Choose the extension cable that brings the complete chain to the total length required by the Proximitor Sensor.
Option 02 has no connector protector. Bently Nevada recommends connector protection for environmental exposure and does not recommend silicone tape as the alternative when the joint is exposed to turbine oil.
No. The standard probe operating and storage range ends at +177°C; an ETR configuration is the appropriate family to review for higher lead or probe temperatures.
For an M10 x 1 standard probe, the published maximum thread engagement is 15 mm and the recommended case torque is 11.2 N·m. The installed bracket should respect both limits.
No. Its final 00 means agency approval is not required in the ordering table; installations that require CSA, ATEX or IECEx should review the approved 05 execution instead.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
