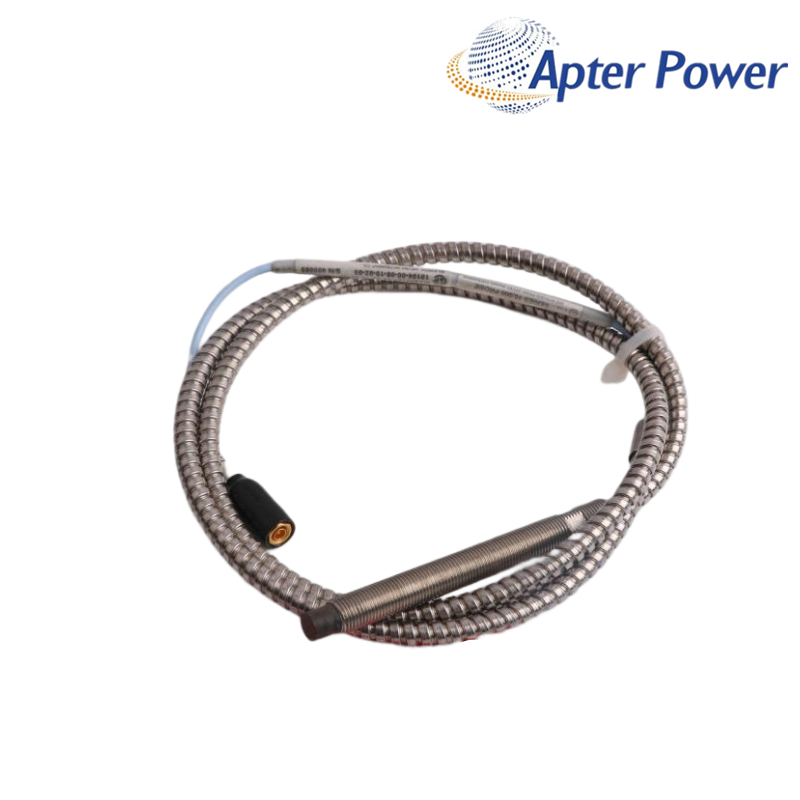

An armored M10 x 1 probe with an 80 mm case, 1.0 m lead, connector protector and multiple approvals. M10 x 1 · 80 mm case · 1.0 m lead · protected connector · option 05.
Item NO.:
330104-00-08-10-01-0Order(MOQ):
1Goods Stock:
14Payment:
T/TLead Time：
In stockWeight:
0.12KGDimension:
15x18x2cmDescription:
PROBEPrice:
AskAn armored M10 x 1 probe with an 80 mm case, 1.0 m lead, connector protector and multiple approvals.
M10 x 1 · 80 mm case · 1.0 m lead · protected connector · option 05Where the probe lead needs added mechanical protection, 330104-00-08-10-01-05 combines an armored M10 x 1 body with an 80 mm case. Its geometry suits installations that require metric mounting and a defined sensing reach without an unthreaded section.
The 1.0 m lead on 330104-00-08-10-01-05 terminates in the ClickLoc arrangement supplied with a connector protector. This probe still depends on the extension cable and Proximitor Sensor forming the correct total-length 3300 XL 8 mm system.
Option 05 is the documented multiple-approval choice for 330104-00-08-10-01-05. ApterPLC can help compare the complete nameplate, armor route and certificate requirement when a visually similar 330104 probe is being considered.
M10 x 1; with armor
0 mm unthreaded length
80 mm case
1.0 m total lead
ClickLoc with connector protector
CSA / ATEX / IECEx option
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Armored standard-mount probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 80 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature ClickLoc with connector protector |
| Family linear range | 2.0 mm (80 mil) |
| Armor | Flexible stainless steel |
| Agency option | 05 - CSA, ATEX and IECEx approvals |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Check that the armored lead and protector can pass through the existing cable path without sharp bends.
Use the 80 mm case and zero unthreaded length to compare bracket engagement and target position.
Pair the 05 option with the project certificate requirement rather than assuming every 330104 variant is identical.
Allow room to engage and service the protected ClickLoc connection without loading the probe lead.
Select the extension cable so the 1.0 m lead contributes to the sensor total length correctly.
Compare gap voltage and channel response with the previous baseline after restoring the mechanical position.
Option 01 changes the connector arrangement by adding a protector. A replacement with option 02 may share the same probe geometry but can leave the installed connection without the expected mechanical protection.
The sensing family may match, but the connector-protection arrangement is different. Please compare space, routing and the plant protection requirement before substitution.
The armored route, 80 mm case and connector protector all need clearance; a label match alone does not prove the cable path is workable.
The most useful sequence is connector seating, total electrical length, probe gap and target condition before changing monitor settings.
The 05 field is the documented multiple-approval option. The supplied certificate set should still be matched to the installation requirement.
The correct length depends on the installed Proximitor Sensor. Subtract the 1.0 m probe lead from the sensor total-length option.
A full probe label, connector view, armor route and the two downstream component labels give the team a reliable system-level picture.
Complete labels and order fields are compared before quotation.
Probe, cable, sensor and transmitter roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and the available remedy follow the written quotation and sales agreement.
Provide the complete 330104-00-08-10-01-05 label and order reference.
Add mounting, connector and signal-chain photos.
Describe the symptom, operating state and first occurrence.
