Item NO.:
330104-00-06-10-02-CNOrder(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
PROBEPrice:

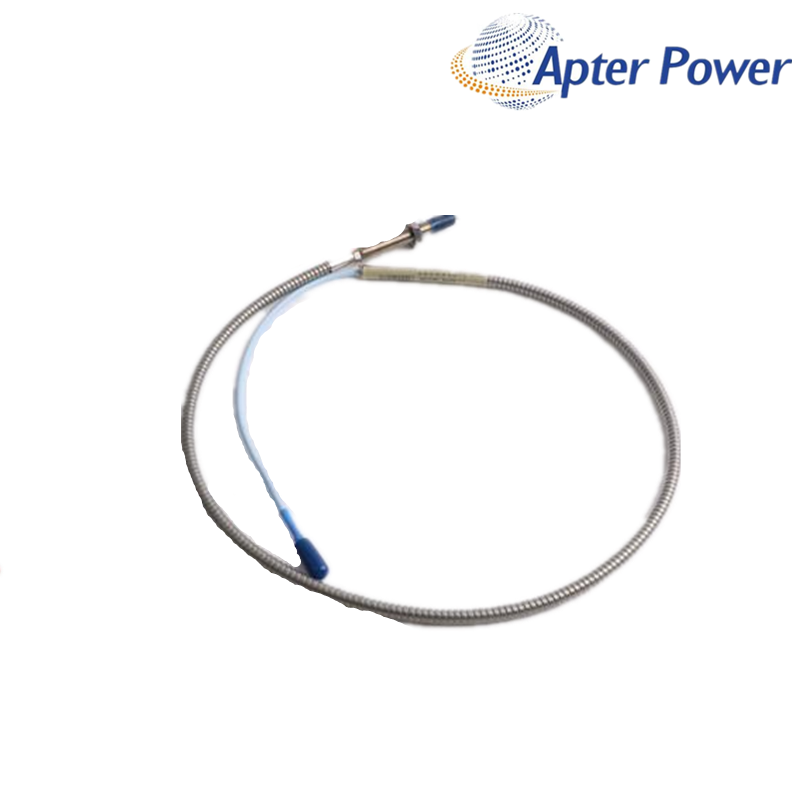

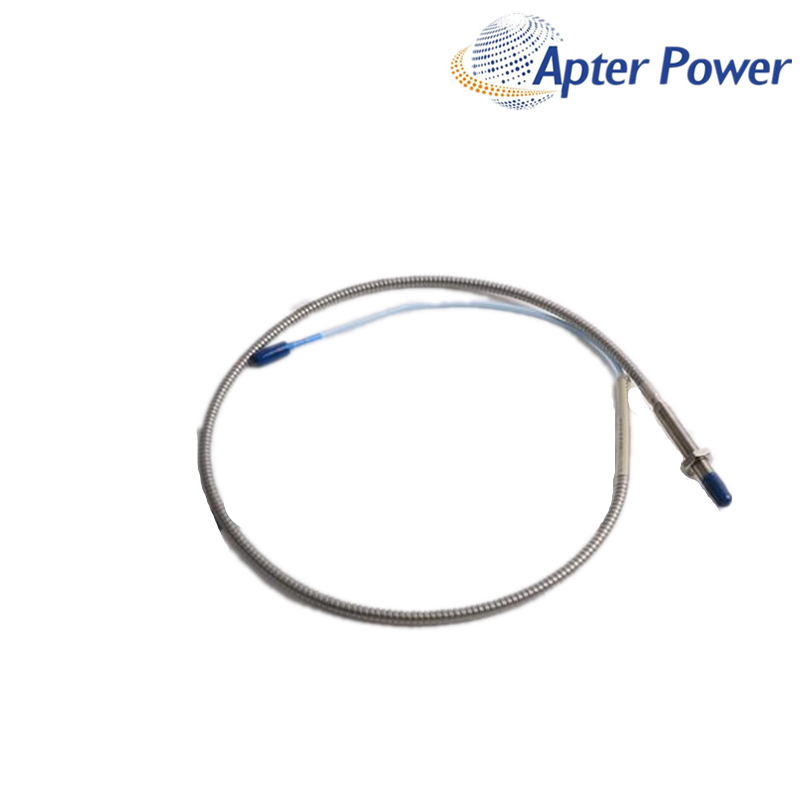

AskAn armored M10 x 1 probe with a fully threaded 60 mm case, a 1.0 m lead and standard ClickLoc cable.
330104-00-06-10-02-CN is an armored M10 x 1 probe for the 3300 XL 8 mm proximity transducer system. Its 00 unthreaded option and 06 case code create a fully threaded 60 mm body that sits between compact 40 mm and longer 90 mm configurations.
The 1.0 m lead on 330104-00-06-10-02-CN uses the standard miniature ClickLoc cable option without a connector protector. The extension cable must complete the total system length specified by the connected Proximitor Sensor.
The probe uses a PPS tip, an AISI 303 or 304 stainless-steel case and a 75-ohm FEP-insulated triaxial cable. Flexible stainless-steel armor adds mechanical protection along the lead.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Armored metric probe |
| Thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 60 mm |
| Total lead length | 1.0 m |
| Cable option | Standard ClickLoc; no connector protector |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Armor construction | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Probe temperature range | -52°C to +177°C operating and storage |
| Maximum M10 x 1 thread engagement | 15 mm |
| Recommended probe case torque | 11.2 N·m for standard forward-mount installation |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The M10 x 1 thread can match, but this model has a fully threaded 60 mm case. Confirm target reach and withdrawal space so the extra 20 mm does not change the sensing position.
Its 1.0 m lead is part of the calibrated chain. Select the extension cable only after confirming the total system length required by the installed Proximitor Sensor.
The official limits for an M10 x 1 standard probe are 15 mm maximum thread engagement and 11.2 N·m recommended case torque. Both matter even on a fully threaded body.
No. Option 02 has no connector protector, so the connection needs an installation-appropriate protection plan, especially where oil or moisture can reach it.
No. Its standard probe family is rated to +177°C; a higher-temperature location should be reviewed against the ETR probe and cable limits.
The published matched-system response is 0 to 10 kHz at +0/-3 dB, so a requirement above that range needs a different measurement solution.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
