Item NO.:
330104-00-04-05-02-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.32KGDimension:
2x18.7x12.8cmDescription:
PROBEPrice:

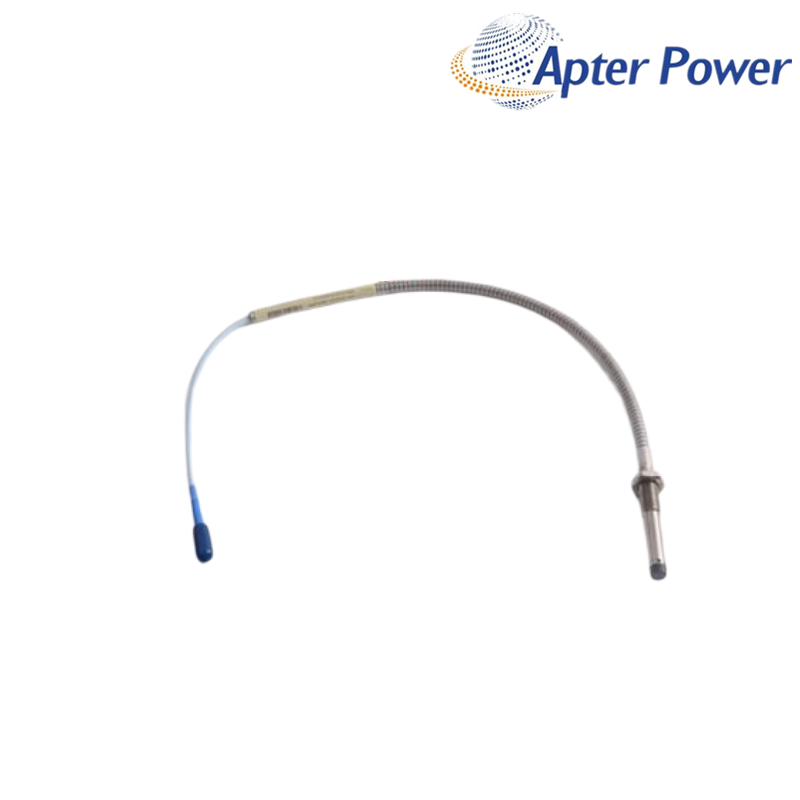

AskA compact armored M10 x 1 probe with a fully threaded 40 mm case, 0.5 m lead and standard ClickLoc cable.
330104-00-04-05-02-00 combines the armored 330104 construction with a compact 40 mm M10 x 1 case. The 00 unthreaded option means the body remains threaded toward the probe tip, supporting close bracket adjustment where a longer body is unnecessary.
With a 0.5 m total lead, 330104-00-04-05-02-00 leaves more of the calibrated system length to the extension cable. The stainless-steel armor protects the probe lead, while option 02 supplies the standard miniature ClickLoc cable without a connector protector.
The final 00 selects no agency approval for 330104-00-04-05-02-00. Procurement should therefore distinguish this compact geometry from approval option 05 and from longer armored probes that share the same M10 x 1 thread.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Armored metric probe |
| Thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 40 mm |
| Total lead length | 0.5 m |
| Cable option | Standard ClickLoc; no connector protector |
| Agency option | 00 - approval not required |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Armor construction | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Probe temperature range | -52°C to +177°C operating and storage |
| Maximum M10 x 1 thread engagement | 15 mm |
| Recommended probe case torque | 11.2 N·m for standard forward-mount installation |
| Matched-system linear range | 2 mm (0.25 to 2.3 mm from target) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Only if its fully threaded 40 mm case still provides the required sensing position and withdrawal clearance. The compact case is useful in restricted spaces but offers less reach than 60 mm or 90 mm versions.
Its 0.5 m lead leaves the remaining calibrated length to the extension cable. Match the combined length to the connected Proximitor Sensor rather than choosing the cable by route length alone.
Bently Nevada lists 15 mm as the maximum engagement. More engagement can bind the probe, so the bracket depth should be checked even though the case is fully threaded.
No. Option 02 supplies the standard ClickLoc cable without a connector protector, so environmental protection should be planned for the installed joint.
No. This standard probe is rated to +177°C; a higher-temperature location requires review of an ETR probe and the rest of the matched chain.
Its final 00 is the no-approval-required selection. An approved installation should use the appropriate 05 execution and its matching certification package.
Share the exact nameplate, connected component labels and installation context. ApterPLC can then prepare a clearer model-focused quotation.
ApterPLC provides a one-year warranty on every item we sell, giving buyers a clear support path after delivery.
ApterPLC can match the available Bently Nevada technical reference to your complete order code and installed signal-chain details. Please send a readable nameplate, the document type you need and the connected system context.
