Compact mounting
Confirm that the 30 mm case and zero unthreaded length suit the bracket, insertion depth and adjustment range.
Item NO.:
330104-00-03-05-02-00Order(MOQ):
1Goods Stock:
18Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
1.8x1.8x58cmDescription:
Compact Armored M10 × 1 Proximity ProbePrice:
AskA compact armored 3300 XL 8 mm probe with no unthreaded section, a 30 mm case and 0.5 m lead for restricted mounting spaces.

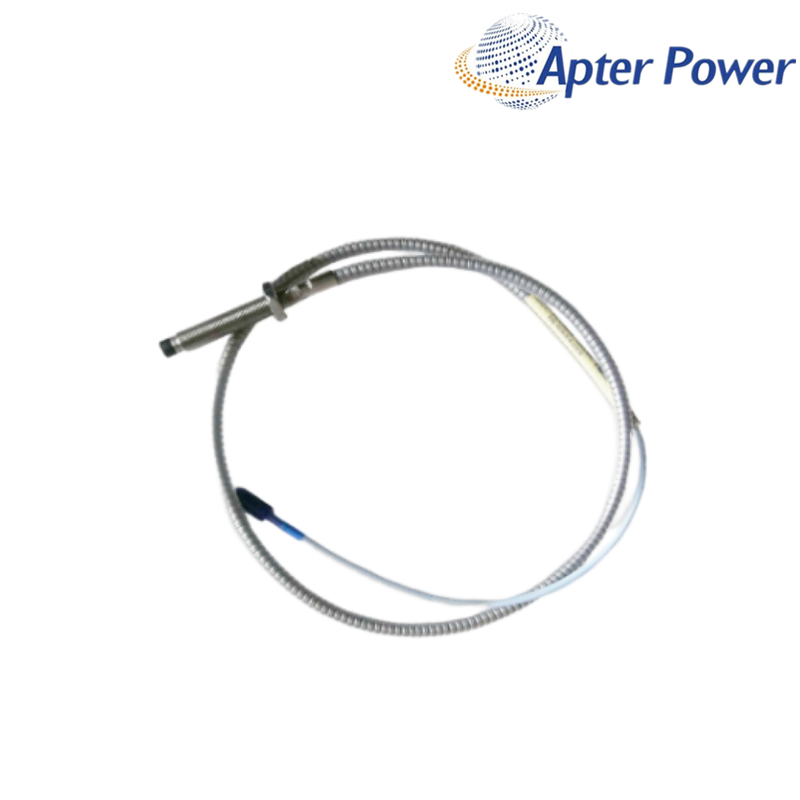

Bently Nevada 330104-00-03-05-02-00 is an armored M10 × 1 probe in the 3300 XL 8 mm proximity transducer family. Its order code specifies no unthreaded section, a compact 30 mm overall case and a 0.5 m total lead.
This short-case configuration is useful where the mounting envelope is restricted, but it is not interchangeable solely because another probe shares the same tip diameter or thread. Mechanical reach, cable routing, connector and the matched 3300 XL system must all agree.
Confirm that the 30 mm case and zero unthreaded length suit the bracket, insertion depth and adjustment range.
The 0.5 m lead changes the extension-cable combination required for the intended total system length.
This probe uses an armored M10 × 1 case, standard cable, miniature ClickLoc connector and no-approval option.
Photograph the installed probe position and all component labels before disturbing the compact mounting.
Match the 0.5 m probe lead with the correct extension cable and Proximitor sensor for the target system.
Use the plant commissioning method to confirm gap and signal stability after the mechanical and electrical chain is complete.
| Product family | 3300 XL 8 mm proximity transducer system |
|---|---|
| Probe case | M10 × 1 thread with armor |
| Unthreaded length | 0 mm |
| Overall case length | 30 mm |
| Total lead length | 0.5 m |
| Connector / cable | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval option | Not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A compact maintenance spare for matched 3300 XL 8 mm shaft-vibration or axial-position channels where limited mounting space calls for the 30 mm armored M10 × 1 case and short probe lead.
Only after insertion depth, adjustment range, target clearance and cable route are checked. The compact 30 mm case changes the mechanical fit.
It determines which extension-cable length is needed to complete the intended electrical system with the matching Proximitor sensor.
It should not be treated as a general cross-family probe. Use it in the supported 3300 XL 8 mm chain shown by the installed labels.
It helps in restricted envelopes, but tool access, locknut engagement, insertion depth and lead protection still need to be evaluated.
Check gap, mounting rigidity, connectors, extension-cable length and the Proximitor sensor as one calibrated signal chain.
Send the full label, mounting and target photos, extension-cable and Proximitor labels, quantity, delivery country and required date.
Labels and installed context are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around your shutdown plan.
Coverage begins on the shipment date unless the confirmed quotation states otherwise.
Coverage and available remedy follow the confirmed quotation and sales agreement.
We carefully review technical documents to match your exact hardware version. Send us a clear photo of the complete product label and tell us whether you need a datasheet, user manual or wiring diagram.
|
