Mechanical fit
Confirm M10 × 1 engagement, 230 mm case clearance and withdrawal space.
Item NO.:
330103-15-23-05-02-CNOrder(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
PROXIMITOR TRANSDUCERPrice:
AskA non-armored metric probe with 150 mm unthreaded length, a 230 mm case, 0.5 m lead and China approval option.

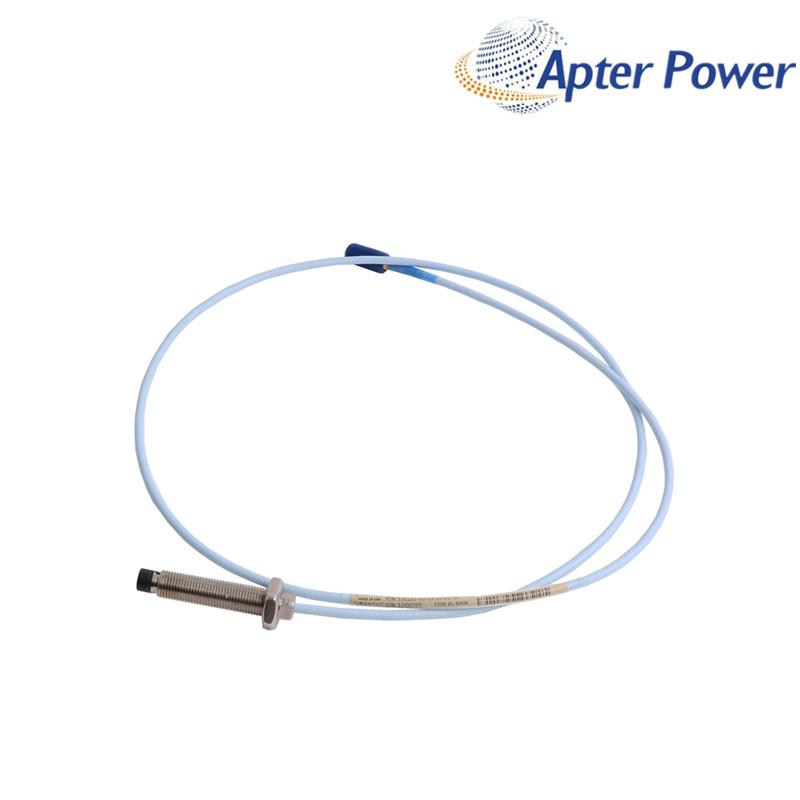

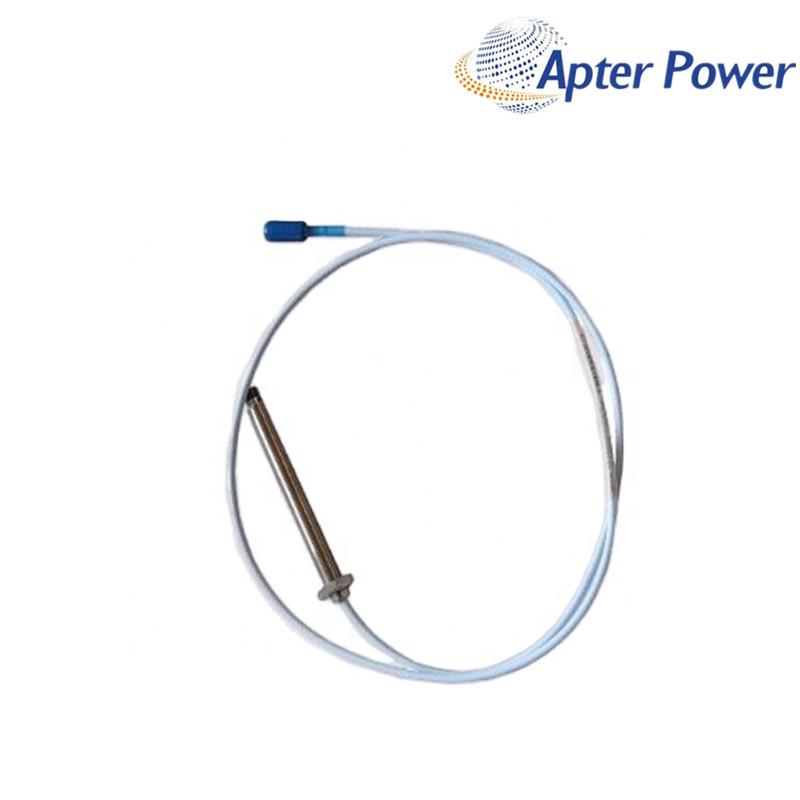

330103-15-23-05-02-CN is a probe in the Bently Nevada 3300 XL 8 mm proximity transducer system. 330103 identifies the non-armored M10 × 1 family; its geometry fields specify 150 mm unthreaded length and a 230 mm overall case.
For 330103-15-23-05-02-CN, the lead field specifies 0.5 m. The cable option is standard clickloc cable; no connector protector, and the final field records cn — china country-specific approval option.
Before replacing 330103-15-23-05-02-CN, verify bracket thread and clearance, cable routing, approval requirement, extension-cable length and the connected Proximitor Sensor as one documented system.
Confirm M10 × 1 engagement, 230 mm case clearance and withdrawal space.
Protect the non-armored lead and ClickLoc joint.
Add the 0.5 m lead to the extension cable and match the sensor length.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| System family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 150 mm |
| Overall case length | 230 mm |
| Total lead length | 0.5 m |
| Connector / cable option | Standard ClickLoc cable; no connector protector |
| Approval option | CN — China country-specific approval option |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Confirm the M10 × 1 thread, 150 mm unthreaded section, 230 mm case length and full withdrawal path.
No. The probe is non-armored, so the installation must protect the lead and connector from mechanical damage.
No. Cable option 02 is the standard ClickLoc cable without a connector protector.
Choose the extension cable so its length plus the 0.5 m probe lead equals the connected Proximitor Sensor system length.
No. Thread, unthreaded length, case length, lead, cable option, approval and system length must all be reviewed.
Provide the full probe label, bracket and withdrawal space, cable route, connector, extension-cable label and Proximitor Sensor label.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
