The long smooth section must clear the bracket before usable thread engagement begins.
Item NO.:
330103-13-23-05-02-00Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
SENSORPrice:

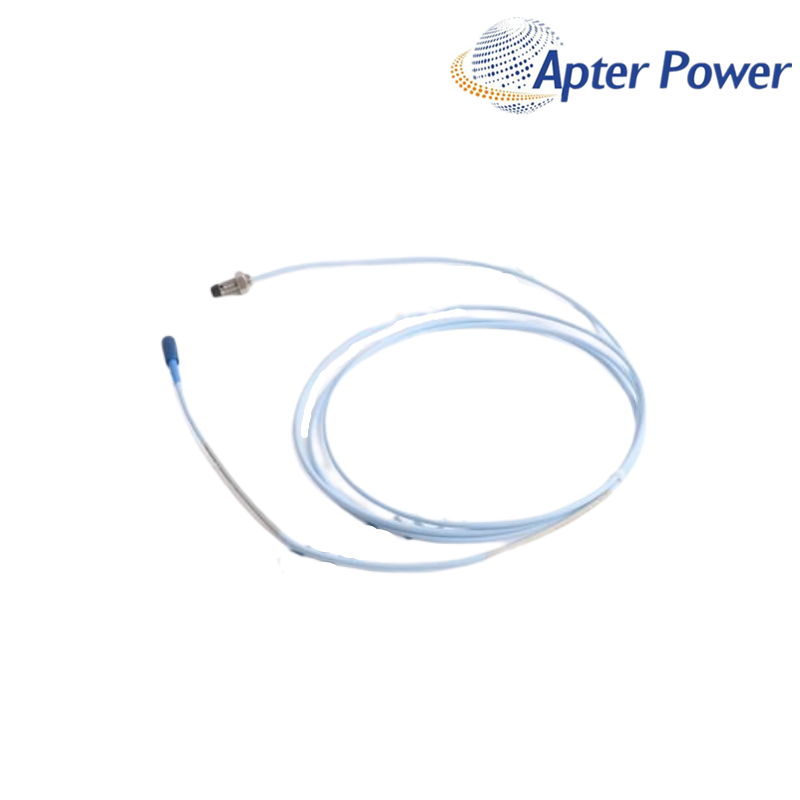

AskAn unarmored M10 x 1 probe with 130 mm unthreaded length, a 230 mm case and a short 0.5 m standard lead.
330103-13-23-05-02-00 is defined by an unusually long 130 mm unthreaded section within a 230 mm M10 x 1 case. That combination moves the start of the mounting threads well behind the tip and makes the installed bracket geometry the primary selection constraint.
The unarmored 0.5 m lead on 330103-13-23-05-02-00 uses the standard ClickLoc cable option without a connector protector. Because this probe contributes only 0.5 m to the calibrated chain, the extension cable must be selected against the total length of the connected Proximitor Sensor.
Approval option 00 on 330103-13-23-05-02-00 indicates that an agency approval is not required for this order-code execution. The complete delivered label should remain attached to the quotation so its long mechanical geometry is not confused with a visually similar metric probe.
The long smooth section must clear the bracket before usable thread engagement begins.
The 230 mm case needs enough service space for straight removal.
The 0.5 m probe lead leaves more system length to be completed by the extension cable.
The 130 mm unthreaded section on 330103-13-23-05-02-00 is the decisive mechanical boundary. A probe can share the same M10 x 1 thread and 230 mm case yet still fail to seat correctly when its smooth-section length begins the threads at another position.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Unarmored standard-mount proximity probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 130 mm |
| Overall case length | 230 mm |
| Total lead length | 0.5 m |
| Connector / cable | Miniature ClickLoc; standard cable |
| Family linear range | 2.0 mm (80 mil) |
| Agency option | 00 - approval not required |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Its first 130 mm is unthreaded. If the bracket expects threads closer to the tip, the probe cannot achieve the intended engagement or sensing position.
The answer depends on the Proximitor Sensor system length. Subtract the probe's 0.5 m lead from that required total.
No. The 330103 base identifies the unarmored M10 x 1 execution, so routing and protection should match an unarmored lead.
No. Option 02 uses the standard miniature ClickLoc cable without the protector supplied by option 01.
It is the no-approval-required selection in the published order table; it should not be represented as the multiple-approval 05 execution.
The bracket depth, smooth-section clearance, thread engagement, target position and available removal space directly affect the fit decision.
A bracket section view and available withdrawal distance are more useful than the thread size alone for this long probe.
Customers may type the same model with different spacing, punctuation or brand wording.
These frequently confused searches are not interchangeable with 330103-13-23-05-02-00. Confirm the complete nameplate before quotation.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
This focused file keeps the official manufacturer pages that support the current ordering fields, system context and model-relevant technical data.
Open 330103-13-23-05-02-00 PDFEmail document support|
