Mounting depth
Confirm 110 mm unthreaded length and 190 mm case against machine geometry.
Item NO.:
330103-11-19-10-02-00Order(MOQ):
1Goods Stock:
9Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROXIMITY TRANSDUCERPrice:

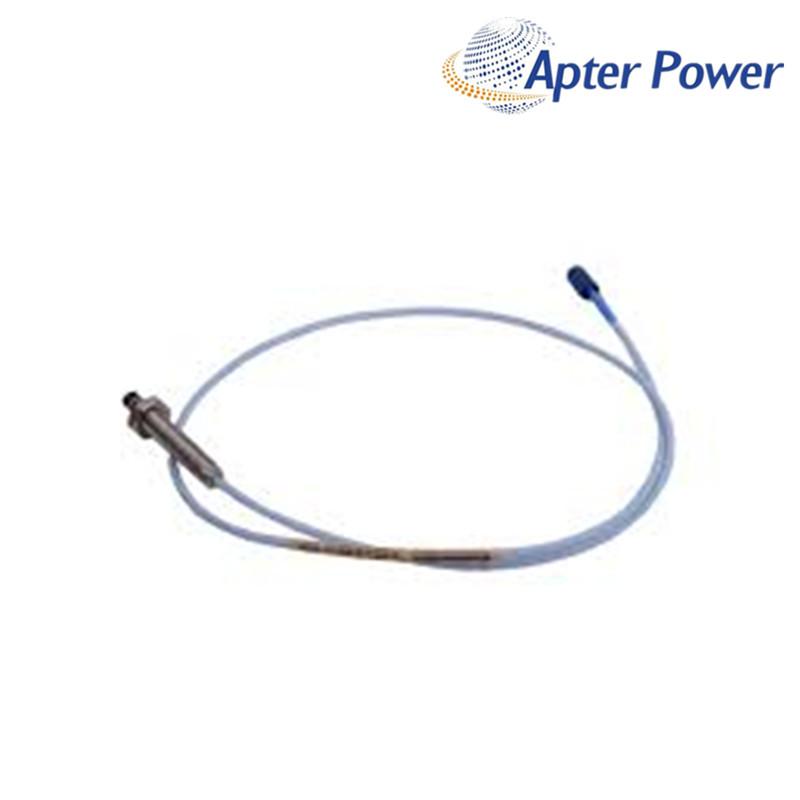

Ask330103-11-19-10-02-00 is the complete Bently Nevada ordering code for this configuration. A non-armored metric probe with 110 mm unthreaded length, 190 mm case, 1.0 m lead and standard ClickLoc connector.
For 330103-11-19-10-02-00, confirm the coded mounting geometry, cable or lead construction, connector option and system length against the installed measurement chain.
Before quoting 330103-11-19-10-02-00, ApterPLC checks the full nameplate and connected-component labels so a visually similar part is not treated as an exact replacement.
Confirm 110 mm unthreaded length and 190 mm case against machine geometry.
Protect the non-armored 1.0 m lead and exposed ClickLoc joint.
Match the complete order code, not only thread and probe diameter.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm |
| Component | Proximity probe |
| Thread | M10 × 1 |
| Armor | No |
| Unthreaded length | 11 · 110 mm |
| Overall case length | 19 · 190 mm |
| Total probe length | 10 · 1.0 m |
| Connector / cable | 02 · standard ClickLoc; no connector protector |
| Agency approval | 00 · not required |
| Measurement principle | Non-contacting eddy current proximity measurement |
| Nominal linear range | 2.0 mm (80 mils) |
| Nominal sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency response | 0 to 10 kHz (+0 / -3 dB) |
| Reference target | Bently Nevada AISI 4140 steel |
| Minimum flat target | 15.2 mm diameter |
| Minimum shaft diameter | 50.8 mm; 76.2 mm recommended |
| Minimum cable bend radius | 25.4 mm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A non-armored metric probe with 110 mm unthreaded length, 190 mm case, 1.0 m lead and standard ClickLoc connector. Confirm every coded length, thread, cable and approval option against the installed probe.
No. Thread size alone does not confirm case length, unthreaded length, lead construction, connector option or approval suffix.
Confirm 110 mm unthreaded length and 190 mm case against machine geometry.
Protect the non-armored 1.0 m lead and exposed ClickLoc joint. Match the complete order code, not only thread and probe diameter.
Send a clear nameplate photo for 330103-11-19-10-02-00, the complete order code, connected-component labels and photos of the installed mounting or cable route.
ApterPLC provides a one-year warranty on this item, with a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names and trademarks are used for identification only.
Use the model-relevant document below to review the configuration, installation details and system requirements for 330103-11-19-10-02-00.
|
