Compare the 100 mm case and 40 mm unthreaded section with the installed bracket depth and service clearance.

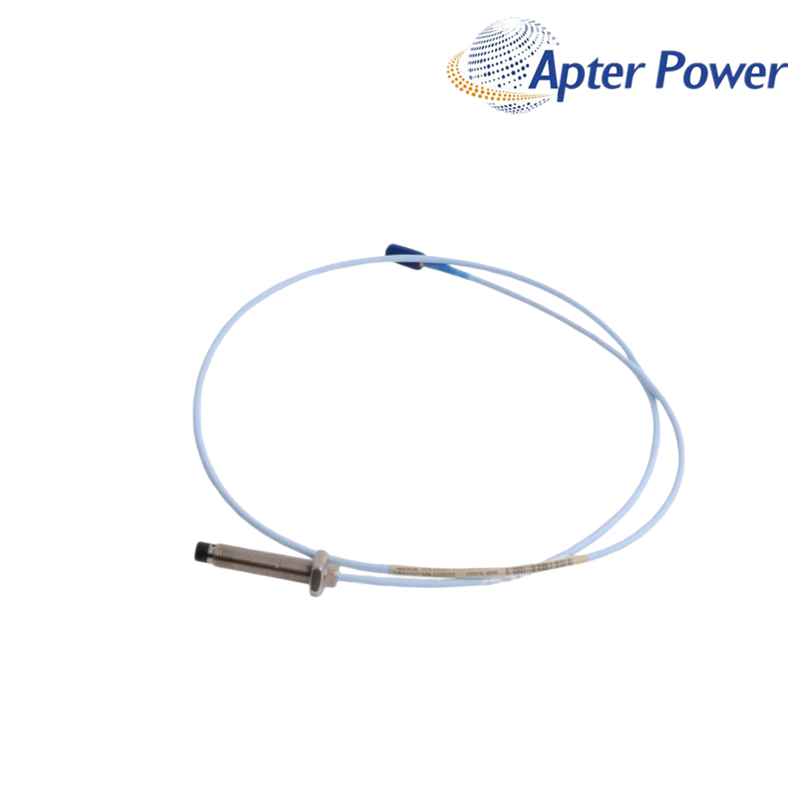

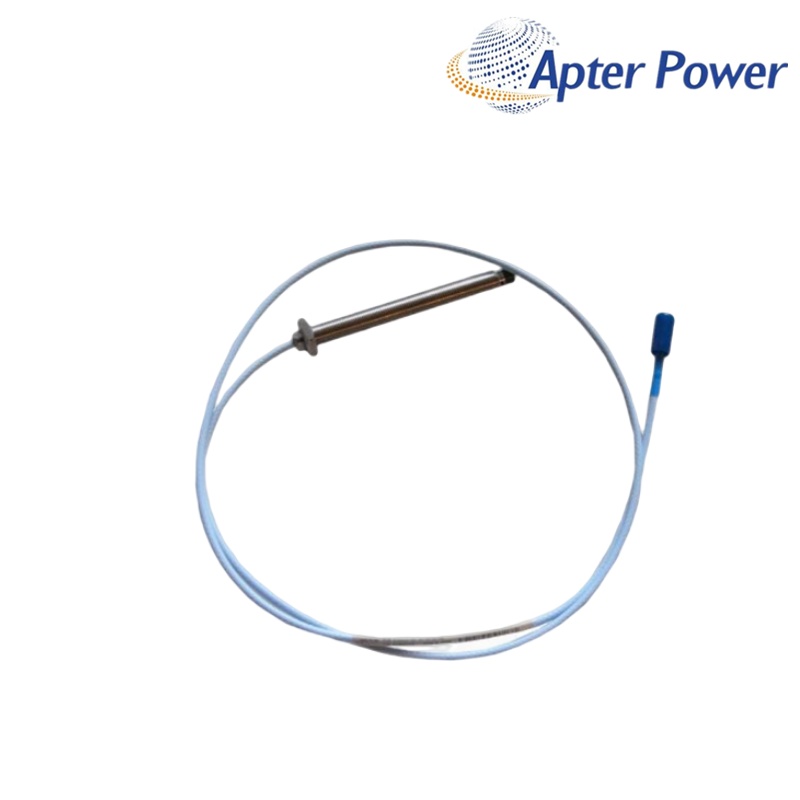

An unarmored M10 x 1 probe with 40 mm unthreaded length, 100 mm case, 1.0 m lead and multiple approvals. M10 x 1 · 40 mm unthreaded · 100 mm case · 1.0 m lead · option 05.
Item NO.:
330103-04-10-10-02-0Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.2KGDimension:
13.0x1.9x19.1cmDescription:
PROXIMITY PROBESPrice:
AskAn unarmored M10 x 1 probe with 40 mm unthreaded length, 100 mm case, 1.0 m lead and multiple approvals.
M10 x 1 · 40 mm unthreaded · 100 mm case · 1.0 m lead · option 05A long mounting reach is the defining feature of 330103-04-10-10-02-05. Its metric unarmored probe body combines a 40 mm unthreaded section with a 100 mm case, giving maintenance teams a configuration that must be matched to the existing bracket and target position.
Within the 3300 XL 8 mm system, 330103-04-10-10-02-05 contributes a 1.0 m lead and uses the standard ClickLoc cable option. The remaining extension cable must complete the total electrical length required by the connected Proximitor Sensor.
The final 05 option places 330103-04-10-10-02-05 in the documented multiple-approval execution. For a replacement, the installed area requirement, certificate set and complete order code should stay together in the quotation record.
M10 x 1; without armor
40 mm unthreaded length
100 mm case
1.0 m total lead
Standard ClickLoc cable
CSA / ATEX / IECEx option
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Standard-mount unarmored probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 40 mm |
| Overall case length | 100 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature ClickLoc; standard cable |
| Family linear range | 2.0 mm (80 mil) |
| Minimum bend radius | 25.4 mm |
| Agency option | 05 - CSA, ATEX and IECEx approvals |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Compare the 100 mm case and 40 mm unthreaded section with the installed bracket depth and service clearance.
Treat the 1.0 m probe lead as part of the complete system length when choosing the extension cable.
Link the exact certificate set to the area requirement instead of relying on a similar-looking probe.
The M10 x 1 body should reach the target without forcing the probe beyond the available bracket engagement.
Maintain the documented bend radius and protect the ClickLoc connection from strain or contamination.
Restore the machine-specific gap and compare the signal with the previous baseline under the plant procedure.
The 40 mm unthreaded section is not a cosmetic detail. It changes where the threads begin and can prevent a probe from reaching the intended target even when the overall case length appears suitable.
Not necessarily. The unthreaded section and case reach both affect where the sensing tip sits, so the bracket drawing or installed dimensions should be compared first.
It may be reusable when its condition is acceptable and the 1.0 m lead plus cable matches the installed Proximitor Sensor length.
Bracket depth, target position and the 40 mm unthreaded section are the first useful checks; they often reveal a mechanical reach mismatch.
It identifies the multiple-approval execution. Please include the installation area and requested certificate set so the offer can be matched correctly.
Metric probes with different geometry, armor and cable options can look almost identical while producing a poor mechanical or system-length match.
The probe, extension cable and Proximitor Sensor labels together show the complete chain and reduce the risk of matching only one component.
Complete labels and order fields are compared before quotation.
Probe, cable, sensor and transmitter roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and the available remedy follow the written quotation and sales agreement.
Provide the complete 330103-04-10-10-02-05 label and order reference.
Add mounting, connector and signal-chain photos.
Describe the symptom, operating state and first occurrence.
