Tip geometry
Measure the 30 mm unthreaded section against the bracket and target.
Item NO.:
330103-03-12-05-02-00Order(MOQ):
1Goods Stock:
7Payment:
T/TLead Time：
In stockWeight:
1.5KGDimension:
5.1x20.3x33.0cmDescription:
PROBEPrice:

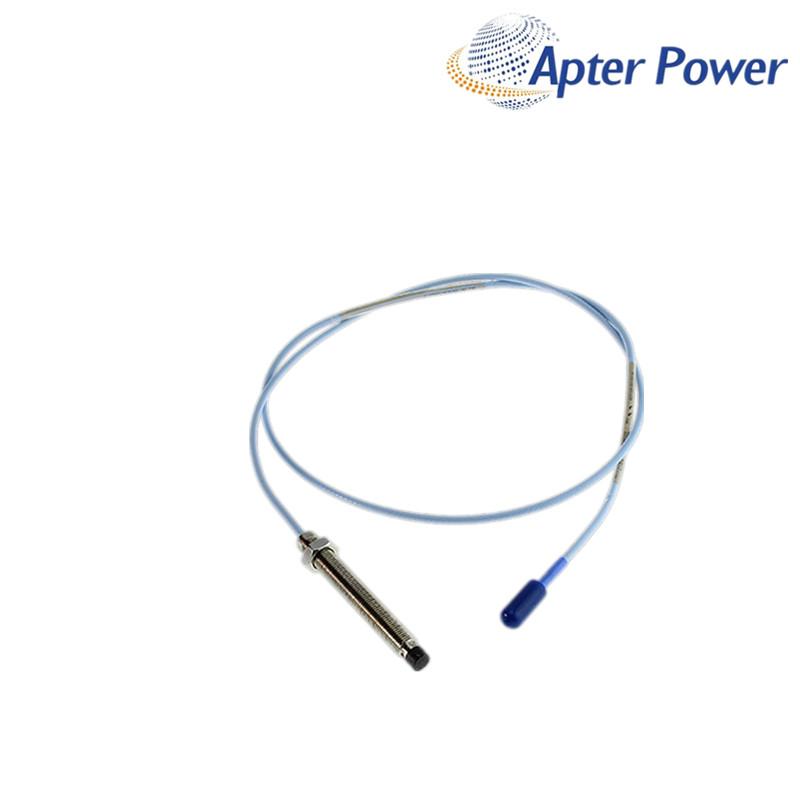

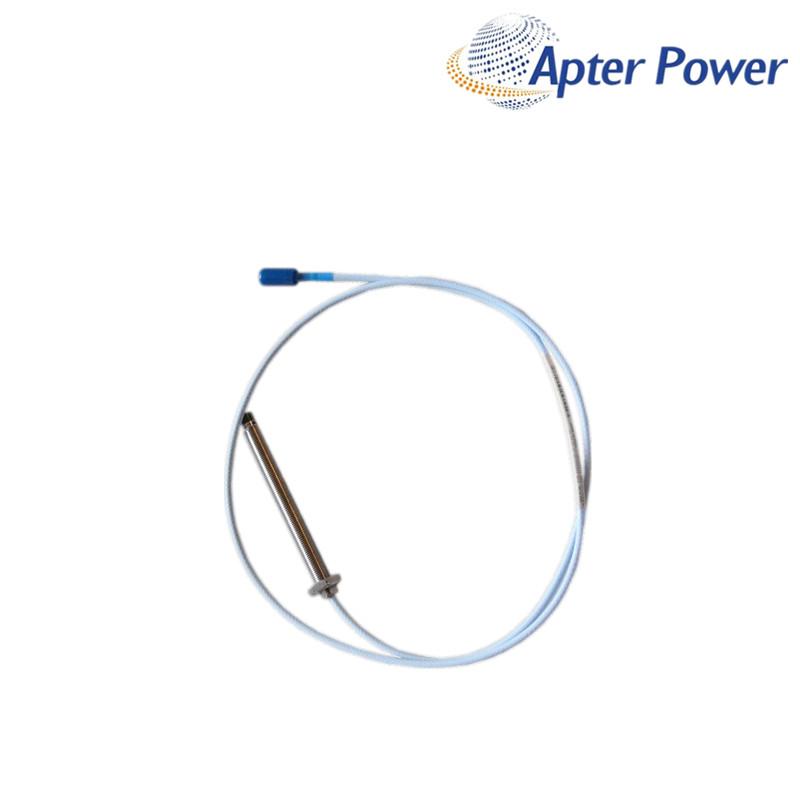

AskA non-armored metric probe with 30 mm unthreaded length, a 120 mm case, 0.5 m lead and standard ClickLoc cable.
330103-03-12-05-02-00 is a non-armored M10 × 1 probe in the 3300 XL 8 mm system. Field 03 specifies 30 mm unthreaded length, while 12 identifies a 120 mm overall case.
The 05 field specifies a 0.5 m lead. Option 02 is the standard ClickLoc cable without a connector protector, and the final 00 is the no-approval-required option.
The smooth tip length and long case affect bracket reach and clamping. Measure the installed geometry and complete the electrical length with the correct cable and sensor.
Measure the 30 mm unthreaded section against the bracket and target.
Provide adequate support and withdrawal space for the 120 mm case.
Plan field protection because option 02 has no connector protector.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 30 mm |
| Overall case length | 120 mm |
| Total lead length | 0.5 m |
| Connector / cable option | Standard ClickLoc cable; no connector protector |
| Approval option | 00 — not required |
| System family | 3300 XL 8 mm proximity transducer system |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Check the 30 mm smooth tip, 120 mm case, M10 × 1 bracket geometry and complete matched-system length. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
