The matched system supports static position and dynamic vibration measurement on fluid-film bearing machines, plus Keyphasor reference and speed measurement. This probe remains one component of the three-part measurement chain.

Allow for the M10 x 1 mounting, 80 mm case, 30 mm unthreaded section and service access around the connector protector. The routed cable still needs the 25.4 mm minimum bend radius.

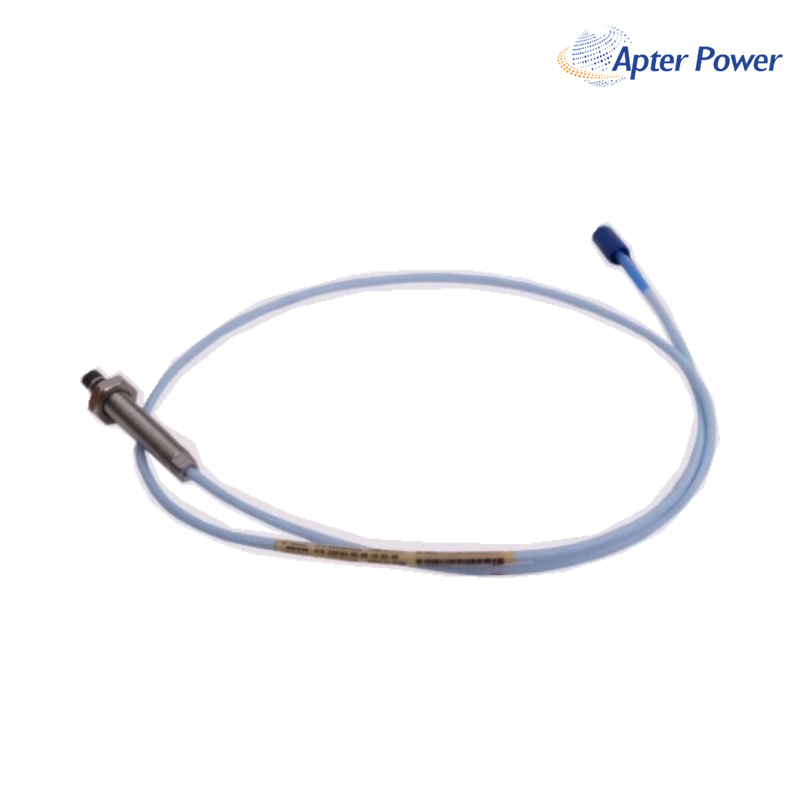

The probe uses a miniature ClickLoc connection on standard 75 ohm triaxial FEP cable with a connector protector. The DC power specification applies to the Proximitor Sensor: -17.5 to -26 Vdc, or -23 to -26 Vdc with barriers.

No. Code 10 makes the probe length 1.0 m, and the manufacturer states that one-metre systems do not use an extension cable. The selected Proximitor Sensor must therefore be the documented 1 m configuration.

Match the complete ordering code, M10 x 1 thread, 30 mm unthreaded length, 80 mm case, 1.0 m system arrangement and connector-protector option. The shared thread alone does not establish an exact replacement relationship.

For a matched standard 1 m system calibrated to AISI 4140 steel, the center-of-range setting is approximately -9 Vdc at 1.27 mm. Evaluate the final signal within the published 2 mm linear range.

Compare center-to-outer probe resistance with the 7.59 plus or minus 0.50 ohm nominal value, then review finger-tight ClickLoc seating, protector fit and cable bend. Continue through the extension-free 1 m chain before changing monitor settings.

The matched-system specification uses a 15.2 mm minimum flat target, a 50.8 mm minimum shaft and a 76.2 mm recommended minimum shaft. Smaller shafts generally change scale factor, so target material and geometry should remain part of the application review.
