Item NO.:
330103-02-06-10-02-00Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROBEPrice:

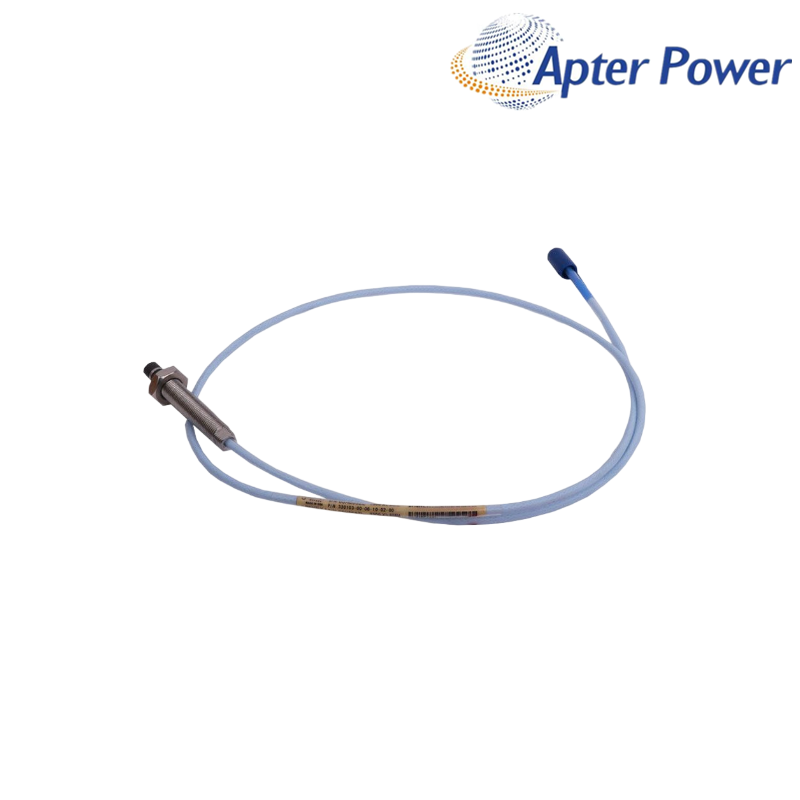

AskAn unarmored M10 x 1 probe with a 20 mm smooth section, 60 mm case, 1.0 m lead and standard ClickLoc cable.
330103-02-06-10-02-00 places a 20 mm unthreaded section ahead of the M10 x 1 mounting threads within a 60 mm case. This short smooth section can pass through a bracket opening while keeping enough threaded body for fine gap adjustment.
The 1.0 m unarmored lead on 330103-02-06-10-02-00 terminates in the standard miniature ClickLoc cable arrangement without a connector protector. Its lead length must be included when the extension cable is selected for the connected 3300 XL Proximitor Sensor.
Approval field 00 identifies the no-approval-required execution of 330103-02-06-10-02-00. The geometry and cable option should remain visible in the quotation so the probe is not substituted with a full-thread or protected-connector variant.
Set tip position from the machine drawing before tightening.
Option 02 has no protector, so enclosure and routing conditions matter.
Use the recorded gap and channel response when returning the machine to service.
The 20 mm smooth section distinguishes 330103-02-06-10-02-00 from a full-thread 60 mm probe. That difference determines where the mounting threads begin and can move the sensing tip outside the intended adjustment range even when the overall case length is identical.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity transducer system |
| Component | Unarmored standard-mount proximity probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 20 mm |
| Overall case length | 60 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature ClickLoc; standard cable |
| Family linear range | 2.0 mm (80 mil) |
| Agency option | 00 - approval not required |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It creates a 20 mm unthreaded section ahead of the mounting threads, directly affecting bracket passage and thread start position.
Only after the bracket geometry is checked. The same case length does not compensate for a different thread-start position.
Select the extension cable so its length plus the 1.0 m probe lead equals the Proximitor Sensor requirement.
No. Option 02 is the standard ClickLoc cable without the protector supplied by option 01.
No. The final 00 field is the published no-approval-required option.
Compare the 20 mm smooth section, bracket thickness, target position and available thread engagement before changing the gap target.
Bracket depth, target position and available connector protection are the most useful inputs for this short-case configuration.
