Item NO.:
3301030018050205Order(MOQ):
1Goods Stock:
31Payment:
T/TLead Time：
In stockWeight:
0.15KGDimension:
20.5x22.4x3.3cmDescription:
PROXIMITY TRANSDUCER SYSTEMSPrice:
Ask
Route and configuration

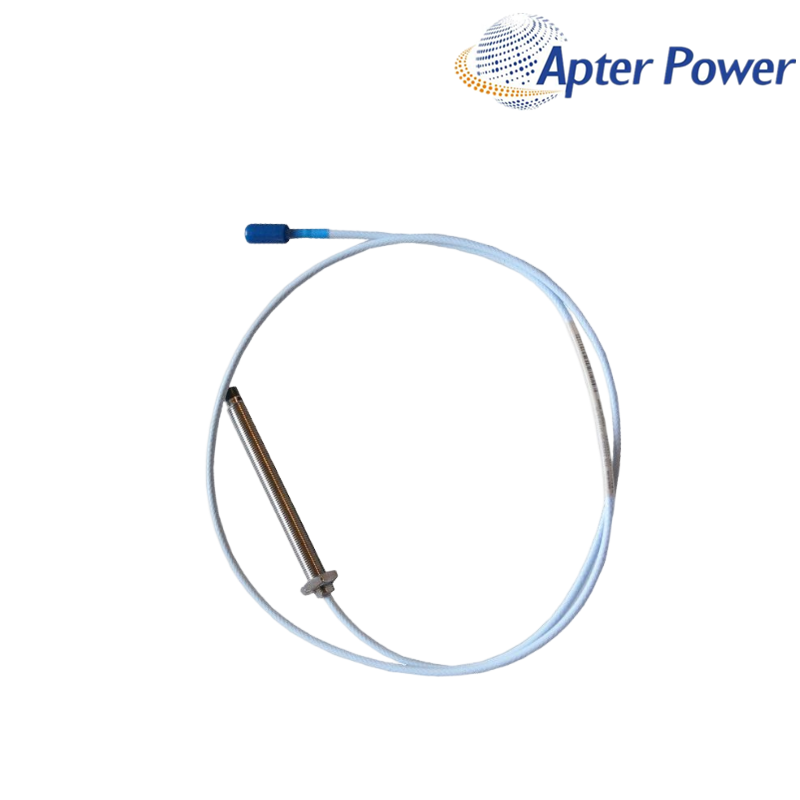

330103-00-18-05-02-05 is a Bently Nevada 3300 XL 8 mm metric proximity probe with an unarmored cable construction. The product page leads with cable-route and delivered-configuration control because those conditions affect both the installation plan and the purchase request.
For 330103-00-18-05-02-05, the 180 mm case, 0 mm unthreaded section and 0.5 m lead should be considered together with the available route and service access. Cable protection reduces exposure but does not remove the need for clearance at bends, connectors or removal points.
330103-00-18-05-02-05 should be quoted from the complete ordering code and the project’s mounting context. Where the order code includes the -05 selection, compare the delivered marking and manufacturer installation conditions with the project requirement before release.
Installation handoff
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | Metric proximity probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 180 mm |
| Integral cable length | 0.5 m |
| Cable / connector option | 02 — standard cable with miniature coaxial ClickLoc connector |
| Agency option | 05 — CSA, ATEX and IECEx ordering option |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Data Sheet, 141194 Rev. AM. Values are limited to the manufacturer’s published ordering-code definitions for this configuration.
Technical note
For 330103-00-18-05-02-05, the -05 ordering selection must be checked against the delivered marking and the manufacturer installation conditions for the project. It does not independently approve the completed installation. Stop release when the site requirement, route or delivered configuration does not match.
Buyer and engineer support
Compare the delivered marking, project classification, temperature and installation conditions with the manufacturer documentation. The -05 ordering option alone does not clear the completed installation.
Send the complete nameplate photograph, mounting drawing, target details, required total system length, existing Proximitor and extension labels, quantity, destination and any site approval requirement.
Compare the 180 mm case with bracket thickness, locknut travel, target location and rear cable clearance. Stop before installation if the drawing does not leave safe adjustment for the operating gap.
The body length can affect reach, adjustment, removal space and cable routing. Confirm those mechanical conditions before the shutdown rather than forcing the long body into the bracket.
Choose the manufacturer extension-cable length that combines with the probe lead to make the total required by the matched five- or nine-metre Proximitor Sensor. Do not field-splice the probe cable.
First check connector seating and the full electrical length, then confirm probe gap, target condition and cable stress. Correct a physical chain problem before changing configuration or calibration.
Keep the lead supported and away from pull load, crushing, sharp edges and tight bends, while leaving the connector accessible. If the route cannot provide that protection, request an official armored configuration review.
