Selection
- Confirm that the installation specifically requires the 160 mm case and 0 mm unthreaded geometry.
- Match the 1.0 m lead, extension cable, Proximitor Sensor and approval requirement.
Item NO.:
330103-00-16-10-02-05Order(MOQ):
1Goods Stock:
34Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
19.5x23x3.5cmDescription:
Proximity SensorPrice:
AskM10 x 1 standard-mount 3300 XL 8 mm probe with 0 mm unthreaded length, 160 mm case, 1.0 m lead and multiple approvals.

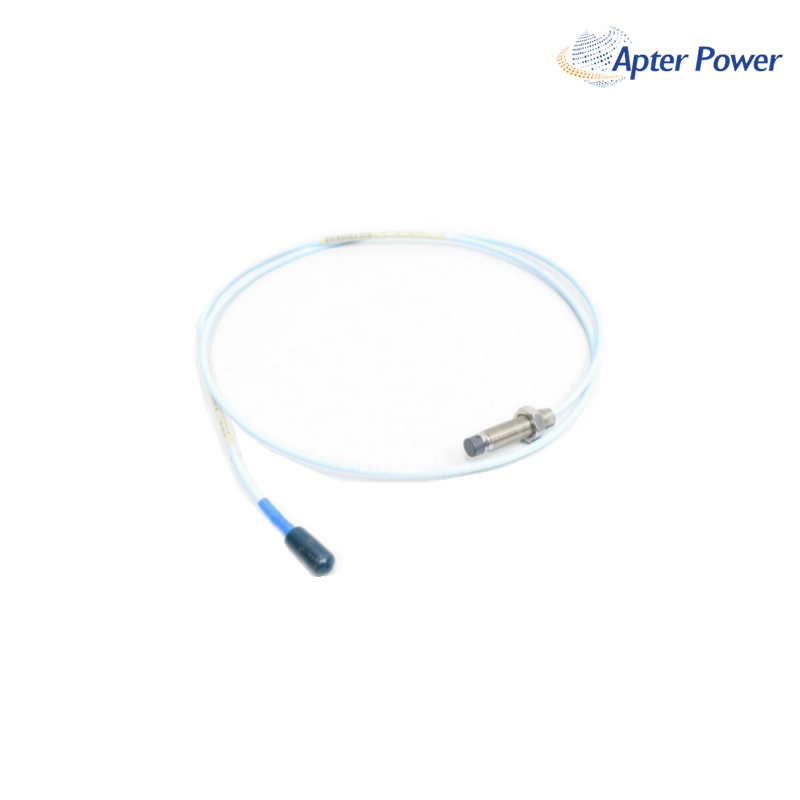

330103-00-16-10-02-05 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with M10 x 1 threads and no armor.
Its distinguishing geometry is a 160 mm overall case with no unthreaded section. The remaining code selects a 1.0 m lead, standard ClickLoc connection without a protector and the multiple-approval option.
The long case requires a specific clearance and insertion-depth check. Match the complete measurement chain and machine drawing rather than substituting another 330103 geometry.
No additional span is assigned to the case-length code. The 160 mm value defines the mechanical case, while the matched standard one-metre 3300 XL 8 mm system retains the published 2 mm linear range under its stated target and gap conditions.
The installation needs a clear path for a 160 mm M10 x 1 case with no unthreaded section. The tapped mounting engagement remains limited to 15 mm, so case reach, rear clearance and target position must be established from the machine drawing.
No. Code 10 identifies a one-metre probe, and the manufacturer states that a one-metre 3300 XL 8 mm system uses the probe only without an extension cable.
The official guidance calls for at least 40 mm tip separation in axial-position layouts or 38 mm in radial-vibration layouts. Shaft diameter also matters: 50.8 mm is the minimum and 76.2 mm is the recommended minimum for the published system response.
The standard FEP lead needs a 25.4 mm minimum bend radius. Code 02 supplies the ClickLoc connector without a protector, the XL joint is tightened finger-tight, and the manufacturer recommends a separately installed connector protector for field use.
The official one-metre probe reference is 7.59 ohms plus or minus 0.50 ohm from center conductor to outer conductor. It can support a continuity check, but correct resistance alone does not establish the installed gap, target condition or complete-system performance.
The published recommendation is 11.2 N m for a standard forward-mounted probe and 7.5 N m when only the first three threads engage. In both cases, the M10 x 1 engagement must remain within the 15 mm maximum.
Code 05 is the CSA, ATEX and IECEx approval option. The supplied markings and applicable safe-use documentation determine the accepted installation context; the family name alone is not a substitute for those markings.
The supplied product is covered for 12 months under ApterPLC sales terms. Retain the complete product label, original packaging and transaction record so the exact unit can be identified quickly if warranty support is needed.
Includes an ApterPLC guide page and selected manufacturer pages covering 3300 XL 8 mm system specifications, the 330103 long-case ordering entry and probe drawings.
|
