Long mechanical reach
The 140 mm case changes insertion depth, bracket engagement and withdrawal space.
Item NO.:
330103-00-14-05-02-00Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROBEPrice:

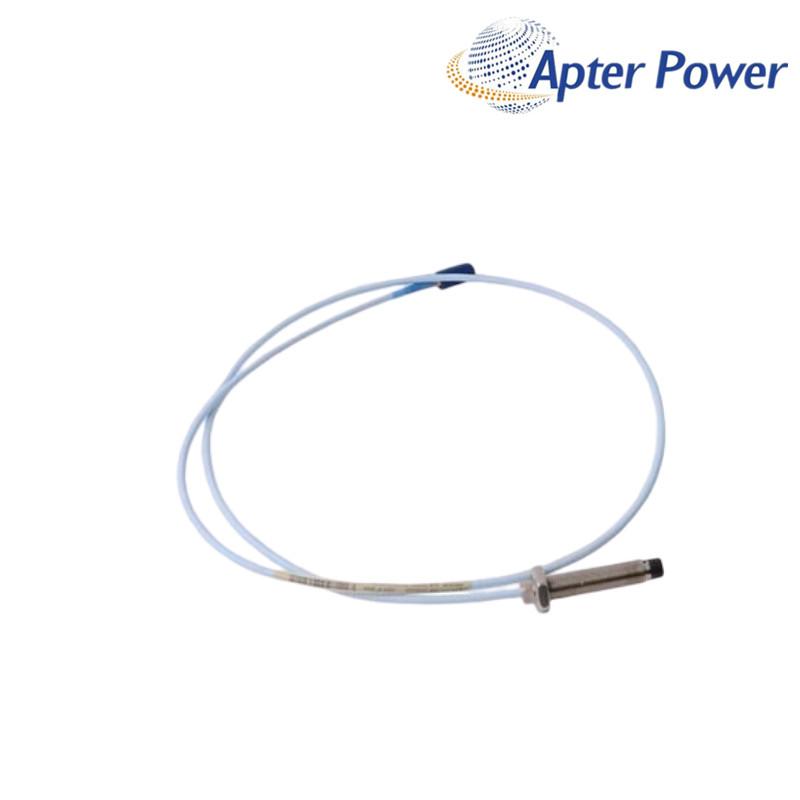

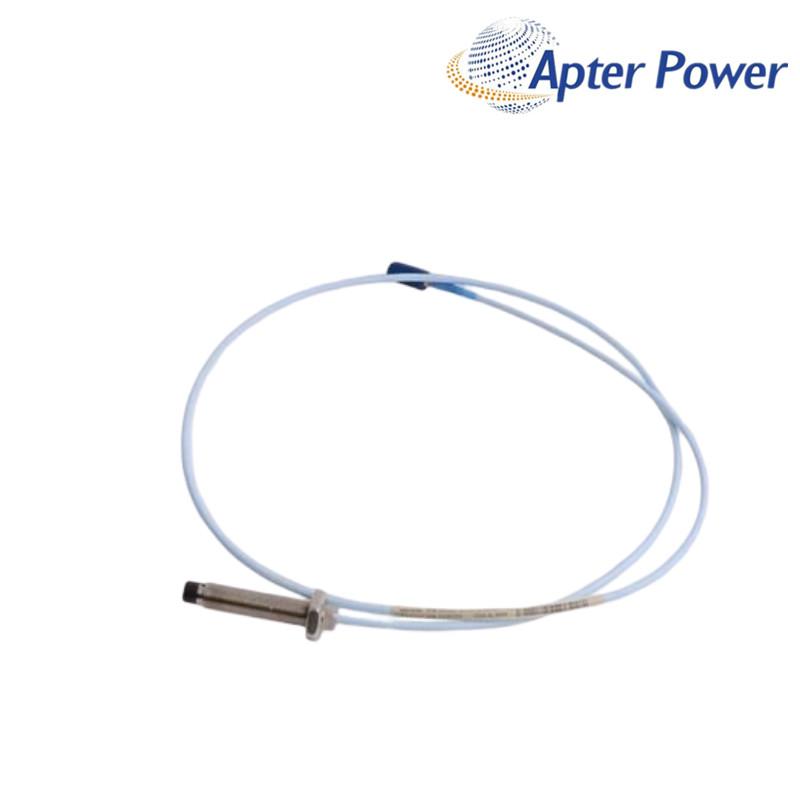

AskA non-armored M10 × 1 probe with a fully threaded 140 mm case and a 0.5 m lead.
330103-00-14-05-02-00 is a non-armored M10 × 1 probe for the 3300 XL 8 mm system. The 00 field specifies no unthreaded section, while 14 gives a 140 mm overall case.
The 05 field provides a short 0.5 m lead. Option 02 supplies the standard miniature ClickLoc connection without a connector protector, leaving the extension cable to complete most of the required system length.
The final 00 is the no-approval-required execution. Compare case reach, bracket engagement and cable arithmetic before substituting another visually similar 330103 probe.
The 140 mm case changes insertion depth, bracket engagement and withdrawal space.
Only 0.5 m is contributed by the probe, so extension-cable selection is critical.
Route and support the lead so machine movement is not transferred to the connector.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 140 mm |
| Total lead length | 0.5 m |
| Connector / cable option | Standard ClickLoc; no connector protector |
| Approval option | 00 — not required |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The published 14 field identifies a 140 mm overall case.
No. The 330103 base identifies the non-armored M10 × 1 probe.
The 05 field specifies a 0.5 m total lead.
No. Option 02 is the standard ClickLoc cable without a protector.
Measure bracket depth and target position, then record the existing cable and Proximitor Sensor labels.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The principal manufacturer source used for this model review is listed below. The delivered revision and certificate package should still govern the final approval decision.
3300 XL 8 mm Proximity Transducer System Datasheet 141194|
