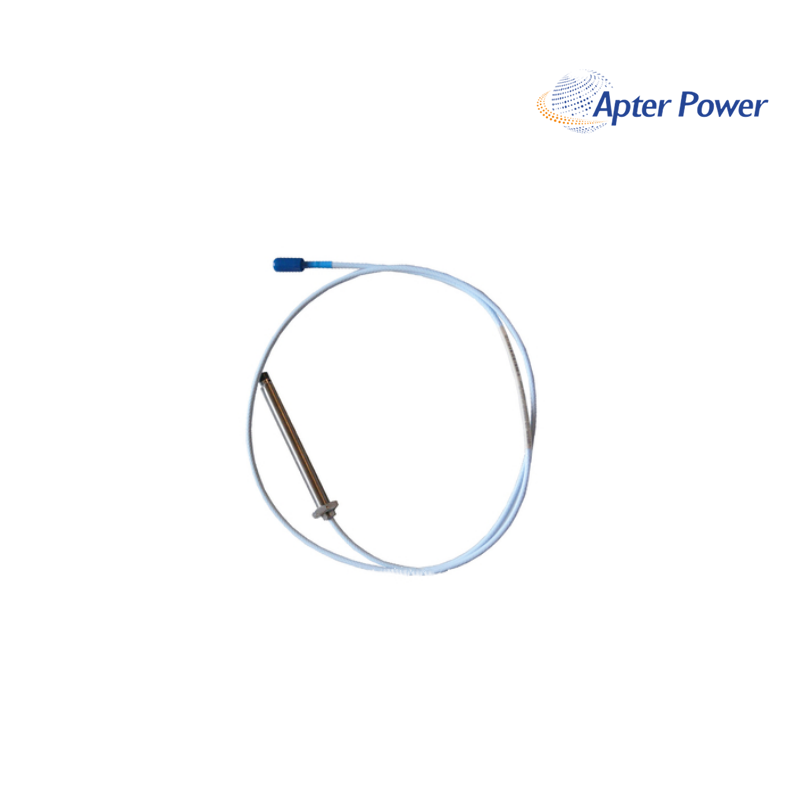

Within the matched probe, cable and Proximitor chain, the system measures static position and dynamic vibration on fluid-film bearing machines and can support Keyphasor reference and speed measurements.

The machine must accommodate a 130 mm case with no unthreaded section, M10 x 1 mounting and the 25.4 mm cable bend radius. Rear access and target position should be checked against the drawing before gapping.

The DC supply specification belongs to the Proximitor Sensor: -17.5 to -26 Vdc, or -23 to -26 Vdc with barriers. This probe reaches that sensor through its standard 75 ohm triaxial ClickLoc lead.

No. Its code 10 lead is 1.0 m, and the official system note says one-metre systems do not use an extension cable. Pair it with the documented 1 m Proximitor Sensor option rather than increasing the calibrated length.

Compare the complete part number, 130 mm case, zero unthreaded length, 1.0 m chain and unprotected code 02 ClickLoc connection. An M10 x 1 thread by itself is not enough to establish the same configuration.

For the matched standard 1 m system on an AISI 4140 steel target, use approximately -9 Vdc at 1.27 mm as the center-of-range reference and keep the final signal within the published 2 mm linear span.

Compare the 130 mm body, zero unthreaded section and 15 mm maximum M10 x 1 engagement with the bracket depth and target location. This separates a documented geometry mismatch from an unsupported monitor-scaling change.

No. The official approvals guide defines -00 as No Approvals for safe-area applications. A hazardous-area project needs a part number and supplied markings that carry the required approval option.
