Long case
The 100 mm overall case determines bracket reach and withdrawal clearance.
Item NO.:
330103-00-10-05-01-0Order(MOQ):
1Goods Stock:
14Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROBEPrice:

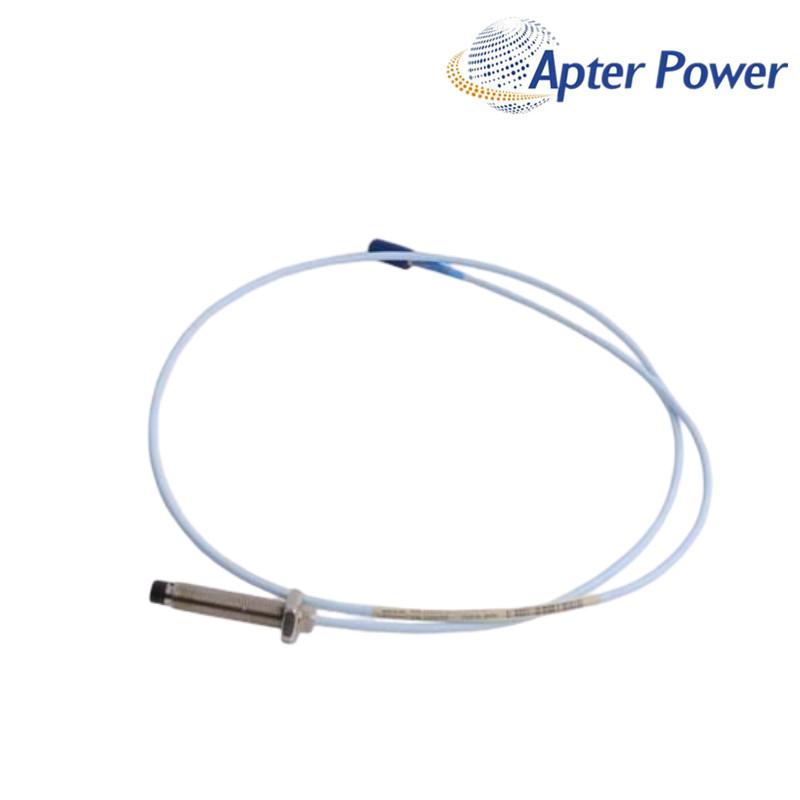

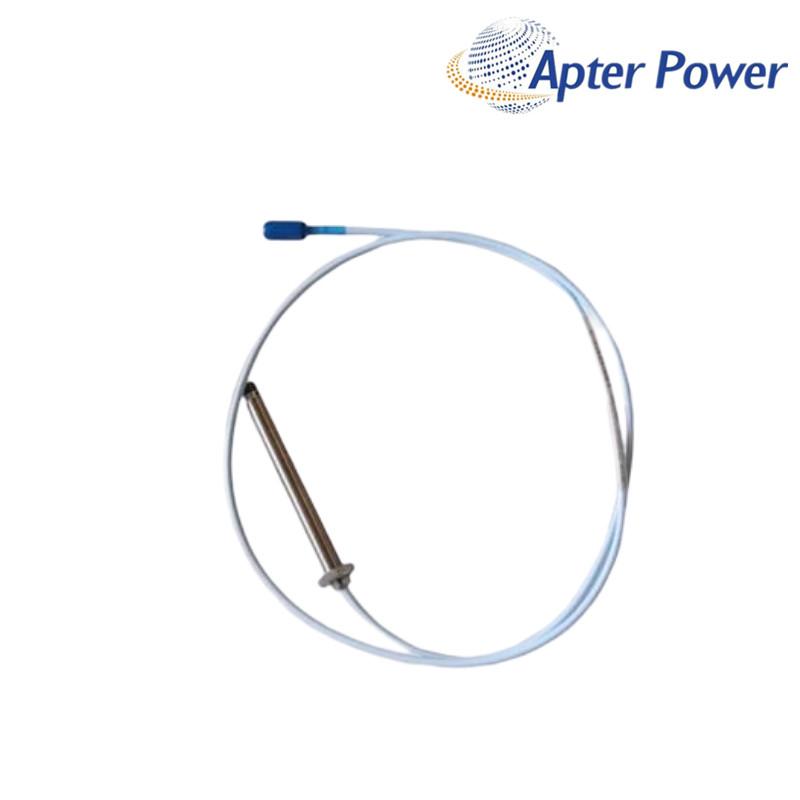

AskA non-armored metric probe with a 100 mm case, a 0.5 m lead and protected ClickLoc connector.
330103-00-10-05-01-00 is a non-armored metric probe in the 3300 XL 8 mm proximity transducer system. It uses an M10 × 1 thread.
The 00 and 10 fields specify 0 mm unthreaded length and a 100 mm overall case. The 05 field gives a 0.5 m lead, and option 01 adds the standard ClickLoc connector protector.
The final 00 is the published no-approval-required selection. Confirm bracket depth and complete system length before substitution.
The 100 mm overall case determines bracket reach and withdrawal clearance.
Option 01 includes the standard ClickLoc connector protector.
The 0.5 m probe lead must be completed by the correct extension cable.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 100 mm |
| Total lead length | 0.5 m |
| Connector / cable option | Standard ClickLoc with connector protector |
| Approval option | 00 — not required |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial, FEP insulated |
| Connector material | Gold-plated brass or gold-plated beryllium copper |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Probe case-to-lead tensile strength | 330 N (75 lbf), maximum rated |
| Connector tightening torque | 0.565 N·m (5 in·lbf), maximum |
| Standard probe temperature range | -52°C to +177°C (-62°F to +350°F) |
| Minimum flat target diameter | 15.2 mm (0.6 in) |
| Recommended minimum shaft diameter | 76.2 mm (3.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It combines the 100 mm M10 × 1 case with a ClickLoc connector protector, which suits that mechanical and connection requirement.
Its probe lead is only 0.5 m, so the correct extension cable is required to reach the Proximitor Sensor electrical length.
Option 01 includes the connector protector, while option 02 is the standard ClickLoc cable without it.
It is the non-armored 330103 construction, so an armored 330104 configuration should be reviewed for that installation.
For an M10 × 1 probe, thread engagement should remain within the published 15 mm maximum to avoid binding.
Include the 100 mm case, 0.5 m lead, connector protector, bracket thread and connected extension-cable and Proximitor Sensor models.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
This model-specific PDF brings together the relevant Baker Hughes ordering-code and technical pages for 330103-00-10-05-01-00. Use it to verify the 100 mm case, 0.5 m lead, protected ClickLoc connector and approval selection before ordering or replacement.
Open the 330103-00-10-05-01-00 Datasheet (PDF)|
