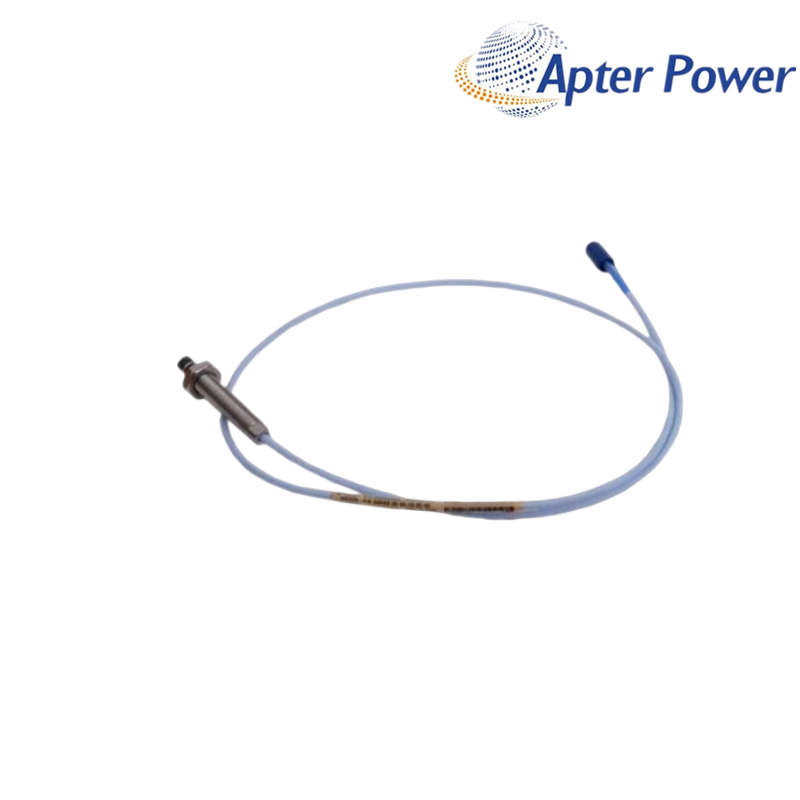

Bently Nevada 330103-00-09-10-02-00 is a metric 3300 XL 8 mm probe with M10x1 thread, a 90 mm case and a 1.0 m standard ClickLoc cable.
Item NO.:
330103-00-09-10-02-00Order(MOQ):
1Goods Stock:
32Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
1.8x1.5x113cmDescription:
PROXIMITY PROBESPrice:
Ask
Service decision
330103-00-09-10-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe for maintenance teams that need to confirm an installed measurement chain before a routine replacement. Its 90 mm case and 1.0 m lead provide a clear starting point for matching the existing mounting and cable route.
The practical decision for 330103-00-09-10-02-00 is not made from the M10 × 1 thread alone. The mounting stack, target position, connector access and total system length must continue to suit the current machine arrangement after the replacement is fitted.
330103-00-09-10-02-00 supports a defined transducer-system selection rather than an improvised cable change. Its 1.0 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Maintenance priorities
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | Metric proximity probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 90 mm |
| Integral cable length | 1.0 m |
| Cable / connector option | 02 — standard cable with miniature coaxial ClickLoc connector |
| Agency option | 00 — approval not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Data Sheet, 141194 Rev. AM. Values are limited to the manufacturer’s published ordering-code definitions for this configuration.
Technical note
The 1.0 m probe lead of 330103-00-09-10-02-00 does not define a complete calibrated measurement chain. Select the official extension and matched five- or nine-metre Proximitor Sensor as one system, and stop before installation if the total length cannot be retained.
Buyer and engineer support
The case length controls reach, thread engagement, locknut location and bracket clearance. A correct target distance alone does not prove the mounting is serviceable.
Compare the 90 mm case with bracket thickness, locknut travel, target location and rear cable clearance. Stop before installation if the drawing does not leave safe adjustment for the operating gap.
Choose the manufacturer extension-cable length that combines with the probe lead to make the total required by the matched five- or nine-metre Proximitor Sensor. Do not field-splice the probe cable.
Pair it with the manufacturer extension-cable length and Proximitor Sensor required for the selected total system. The integral lead is not a complete calibrated chain by itself.
First check connector seating and the full electrical length, then confirm probe gap, target condition and cable stress. Correct a physical chain problem before changing configuration or calibration.
Keep the lead supported and away from pull load, crushing, sharp edges and tight bends, while leaving the connector accessible. If the route cannot provide that protection, request an official armored configuration review.
Send the complete nameplate photograph, mounting drawing, target details, required total system length, existing Proximitor and extension labels, quantity, destination and any site approval requirement.
