Selection
- Confirm the short 0.5 m lead is correct for the installed system-length calculation.
- Check the 90 mm case against the bracket depth and available adjustment.
Item NO.:
330103-00-09-05-02-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
PROXIMITY PROBESPrice:

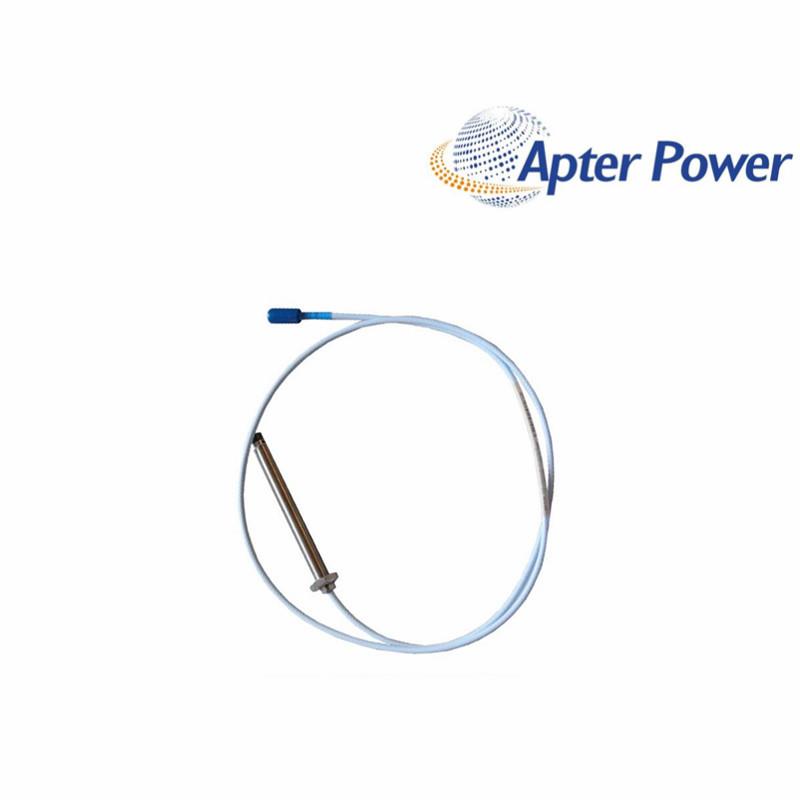

AskA compact M10 × 1 probe with a 90 mm case and 0.5 m standard lead for close-coupled 3300 XL 8 mm installations.
Where an M10 × 1 mount needs a 90 mm case but only a short local lead, 330103-00-09-05-02-00 offers a practical 3300 XL 8 mm probe configuration for shaft vibration and position measurement. Its body is unarmored and has no unthreaded section ahead of the thread.
The 0.5 m cable is the feature most likely to be overlooked when 330103-00-09-05-02-00 is selected as a spare. It uses the standard miniature ClickLoc connection without a protector, so both the cable route and the connection environment should suit that construction.
System length still has to match the installed Proximitor Sensor. Pair 330103-00-09-05-02-00 with the extension cable specified for the existing chain rather than assuming that another 330103 probe with the same thread will give the same electrical result.
Only if the extension-cable arrangement is changed so the complete system length still matches the installed Proximitor Sensor. Keeping the old cable combination can create a measurement error even when the probe mounts correctly.
Check Proximitor power and static output, then work outward through the extension cable, ClickLoc connection and probe lead. This sequence helps locate an open circuit without disturbing a correctly installed probe.
Use a supported route that avoids sharp edges, oil spray, hot surfaces and moving parts. The 0.5 m lead is short, so connector strain close to the housing deserves particular attention.
Review target condition, cable routing, monitor scale and acquisition settings. A correct static gap confirms position but does not prove that the full dynamic measurement path is configured correctly.
It determines reach and adjustment inside the bracket. Compare the removed probe position before installation so the new unit does not run out of thread or contact the target during shaft movement.
Its final code 00 does not specify agency approval. Use it only where the site design does not require an approved probe configuration, or select the documented approved option for that loop.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to confirm the 3300 XL 8 mm metric probe ordering code, 0.5 m lead option, case dimensions, system specifications and relevant installation drawings.
