Compare the 70 mm case with the bracket depth and target position.
Item NO.:
330103-00-07-05-02-CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.42KGDimension:
110x26x40cmDescription:
PROXIMITY PROBESPrice:

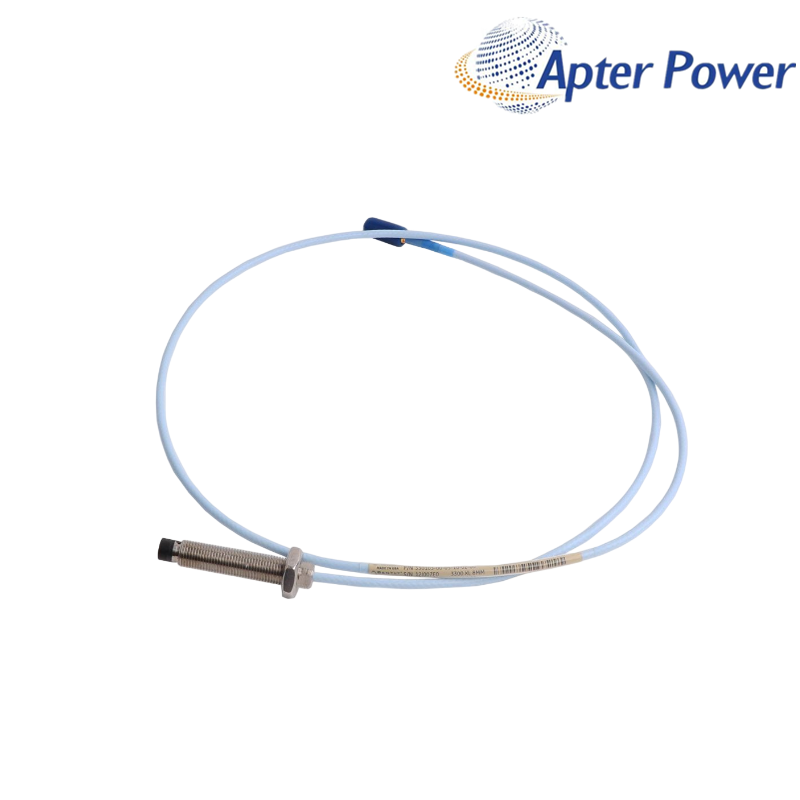

AskAn unarmored M10 x 1 probe with a 70 mm case, 0.5 m standard lead and a label-controlled CN suffix.
0 mm unthreaded · 70 mm case · 0.5 m lead · standard cable · CN label-controlled330103-00-07-05-02-CN is an unarmored M10 x 1 probe for the 3300 XL 8 mm proximity transducer system. The 70 mm case and short 0.5 m lead suit installations where mechanical reach and total electrical length must both be controlled.
The family document defines the mechanical and cable fields for 330103-00-07-05-02-CN. Because CN is not decoded in the public ordering table, its exact label and supplied documentation govern the suffix package.
As one element of a matched 8 mm chain, 330103-00-07-05-02-CN should be paired with the correct extension cable and Proximitor Sensor, mounting geometry and receiving-channel scale.
M10 x 1, without armor
0 mm unthreaded
70 mm case
0.5 m lead
Standard ClickLoc cable
Verify exact label package
| VERIFIED TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 8 mm proximity system |
| Component | Unarmored proximity probe |
| Probe thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 70 mm |
| Total lead length | 0.5 m |
| Connector / cable | ClickLoc; standard cable |
| Family linear range | 2.0 mm (80 mil) |
| Family scale factor | 7.87 V/mm (200 mV/mil) |
| Maximum thread engagement | 15 mm |
| Minimum bend radius | 25.4 mm |
| Suffix control | CN - verify label and documents |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Compare the 70 mm case with the bracket depth and target position.
Account for the 0.5 m lead when selecting the extension cable.
Keep M10 x 1 thread engagement within the documented limit.
Confirm suffix meaning through the offered unit label and documents.
Measure the bracket-to-target distance and compare it with the 70 mm case and 0 mm unthreaded configuration.
Only if the 0.5 m lead plus that cable matches the installed Proximitor Sensor total system length and the cable is in serviceable condition.
That equivalence is not stated in the public ordering table. Treat CN as label-controlled and verify the supplied certificate package.
Review the mounting depth, target position, case reach, thread engagement and cable strain before changing the bracket.
Similar probes can differ in case length, lead length, armor, cable type and certification package while looking nearly identical.
Send the full probe, extension-cable and Proximitor Sensor labels together with a mounting photo.
Complete labels and order fields are checked before quotation.
Probe, cable, rack and monitoring roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and available remedy follow the written quotation and sales agreement.
Provide the complete 330103-00-07-05-02-CN label and order reference.
Add mounting, connector, rack and signal-chain photos.
Describe the symptom, operating state and first occurrence.
Include the applicable sales document and shipment date.
Share the complete product label and tell us whether you need a datasheet, user manual, wiring diagram or other technical document. Installed-system details can help us identify the most relevant available manufacturer material.
Our team will review the available documents and help match the closest useful file for 330103-00-07-05-02-CN.
