M10 × 1 unarmored probe
Item NO.:
330103-00-06-10-02-COrder(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockWeight:
0.42KGDimension:
110 x 26 x 40 cmDescription:
PROXIMITY PROBESPrice:
AskA 60 mm fully threaded case with a 1.0 m standard ClickLoc lead; the CN suffix is controlled by the complete label and supplied documents.
0 mm unthreaded · 60 mm case · 1.0 m lead · standard cable · CN label-controlled

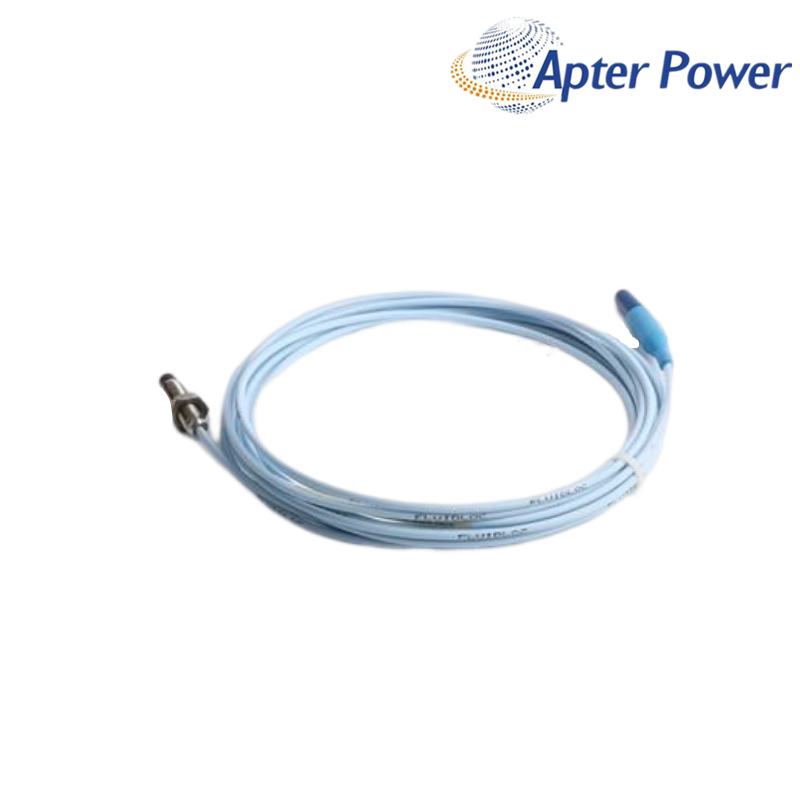

330103-00-06-10-02-CN is a 3300 XL 8 mm Proximity Probe in the 3300 XL 8 mm Proximity Transducer System. A 60 mm fully threaded case with a 1.0 m standard ClickLoc lead; the CN suffix is controlled by the complete label and supplied documents.
Its documented configuration is 0 mm unthreaded · 60 mm case · 1.0 m lead · standard cable · CN label-controlled. These order-code choices define how the component fits the signal path and should be reviewed together rather than by appearance alone.
For maintenance or procurement, 330103-00-06-10-02-CN should be matched to the installed system role, connection architecture and complete manufacturer label. ApterPLC can review those details before quotation.
The selection identity for 330103-00-06-10-02-CN is built from the full code and its verified system role.
M10 × 1 unarmored probe
0 mm unthreaded
60 mm case
1.0 m lead
Standard cable
Verify complete label
Check the 60 mm case and 15 mm engagement boundary.
Carry the proximity signal through the 1.0 m standard lead.
Match total length, Proximitor Sensor and the documented CN package.
| Probe thread | M10 × 1 |
|---|---|
| Cable armor | Without armor |
| Unthreaded length | 0 mm |
| Overall case length | 60 mm |
| Total lead length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc; standard cable |
| Family linear range | 2.0 mm (80 mil) |
| Family sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Maximum thread engagement | 15 mm |
| Minimum bend radius | 25.4 mm |
| Approval suffix | CN — verify from nameplate and supplied documents |
| Payment | T/T |
| Goods Stock | 22 |
| Weight | 0.42KG |
| Dimension | 110x26x40cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Case length is only one field; the 1.0 m lead, standard cable and CN package also control the execution. Use the complete label for a defensible match.
The M10 × 1 thread has a 15 mm maximum engagement. Confirm that the mount holds the 60 mm case at the intended sensing position without exceeding that limit.
The public table does not define CN, so it should not be treated as the documented 05 multiple-approval option. Compare the nameplate and certificate package before ordering.
The standard probe lead needs at least a 25.4 mm bend radius. Protect that radius at the case exit and ClickLoc connection to avoid stressing the cable path.
Begin with the matched 8 mm family and total electrical length, then restore the intended probe gap. Changing monitor scale before those checks can hide a chain mismatch.
Provide the full label, the installed case reach and the extension-cable and Proximitor labels. This preserves the 60 mm geometry and gives the CN package a document-based review.
Complete labels are compared with the official order-code structure.
Connected probes, cables, I/O and monitoring roles are reviewed together.
Logistics and project timing are confirmed with the commercial offer.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the full 330103-00-06-10-02-CN label and order reference.
Add connector, mounting and associated signal-path photos.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AL is the official family document used to verify this product identity, order-code fields and applicable technical context.
Document access: Request the verified manufacturer datasheet for the exact model offered.
