Selection
- Match the 60 mm case, M10 x 1 thread, 1.0 m lead and code 05 approval requirement.
- Confirm the extension cable and Proximitor Sensor produce the documented complete system length.
Item NO.:
330103-00-06-10-02-05Order(MOQ):
1Goods Stock:
21Payment:
T/TLead Time：
In stockWeight:
0.07KGDimension:
20.5x22x3.5cmDescription:
Proximity SensorPrice:
AskM10 x 1 standard-mount 3300 XL 8 mm probe with 0 mm unthreaded length, 60 mm case, 1.0 m lead and multiple approvals.

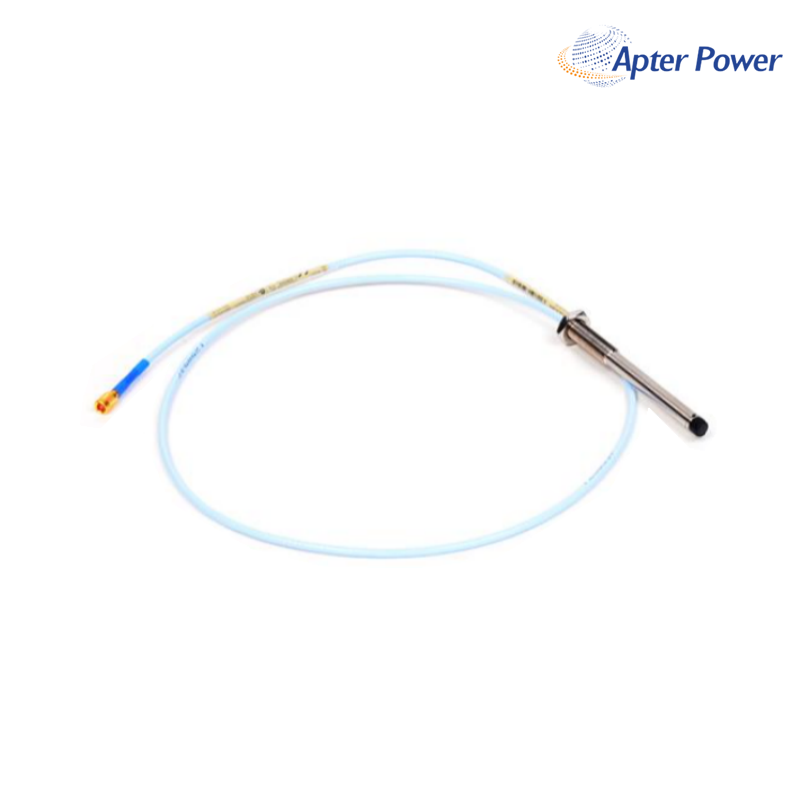

330103-00-06-10-02-05 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with an M10 x 1 threaded case and no armor.
The ordering code specifies 0 mm unthreaded length, 60 mm overall case length, 1.0 m total probe length, standard cable with a miniature ClickLoc connector and no connector protector, plus the multiple-approval option.
This part number identifies the probe configuration. Verify the extension cable, Proximitor Sensor, installed gap, target material and complete calibrated system length before replacement.
The system measures static position and dynamic vibration on fluid-film bearing machines and can also provide Keyphasor reference and speed signals. This exact item is the M10 x 1 probe component of that measurement chain.
No. The manufacturer states that one-metre systems use the probe only, so adding an extension cable would not match the documented one-metre architecture.
The mounting must accept an M10 x 1 case with 0 mm unthreaded length and a 60 mm overall case. Thread engagement is limited to 15 mm, with 11.2 N m recommended for a standard forward-mounted case.
Code 02 supplies the standard ClickLoc connector without a protector, and two XL ClickLoc connectors are tightened finger-tight. The manufacturer recommends connector protectors for installations and offers them separately for field use.
Power is specified at the matched Proximitor Sensor: -17.5 to -26 Vdc at 12 mA maximum, or -23 to -26 Vdc with barriers. The monitor run uses shielded three-conductor wiring, 0.2 to 1.5 mm2, with a published maximum of 305 m from sensor to monitor.
The published radial-vibration setting is about 1.27 mm at -9 Vdc against the default AISI 4140 steel calibration target. The flat target should be at least 15.2 mm in diameter; another target material requires a corresponding calibration basis.
The official one-metre probe reference is 7.59 ohms plus or minus 0.50 ohm from center conductor to outer conductor. It is useful as a continuity reference, but it does not by itself prove correct gap, target material or matched-sensor performance.
The manufacturer states that XL components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. A mixed chain is limited to the non-XL system specifications, so it should not be evaluated against the full XL performance table.
The supplied product is covered for 12 months under ApterPLC sales terms. Retain the complete product label, original packaging and transaction record so the exact unit can be identified quickly if warranty support is needed.
Includes an ApterPLC guide page and selected manufacturer pages covering 3300 XL 8 mm system specifications, the 330103 ordering table and probe drawings.
|
