Mounting geometry
Confirm the M10 × 1 thread, 0 mm unthreaded section and 60 mm case.
Item NO.:
330103-00-06-10-01-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
1.8x1.5x116cmDescription:
PROBEPrice:

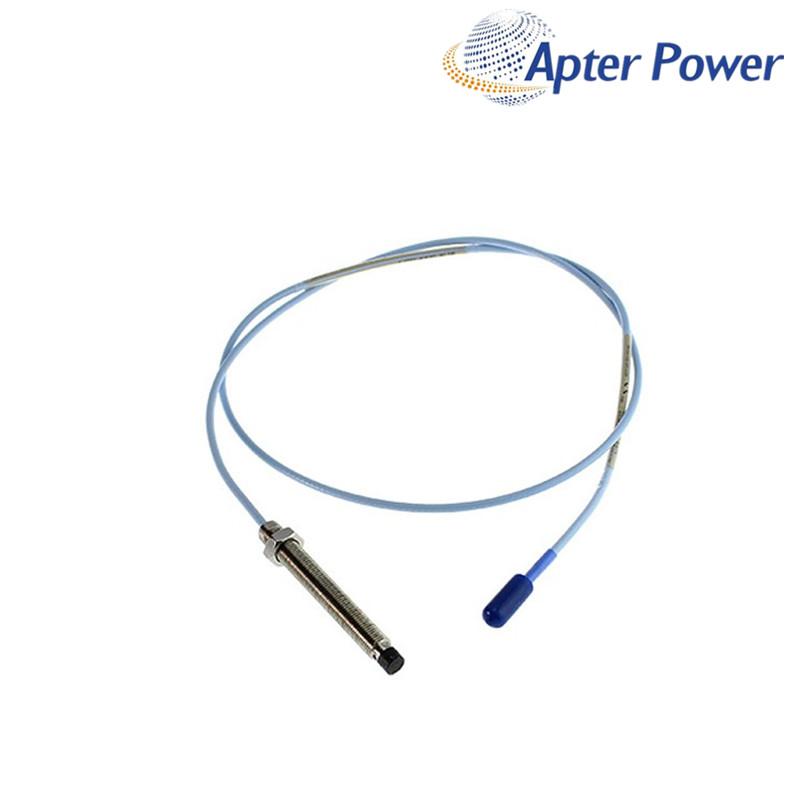

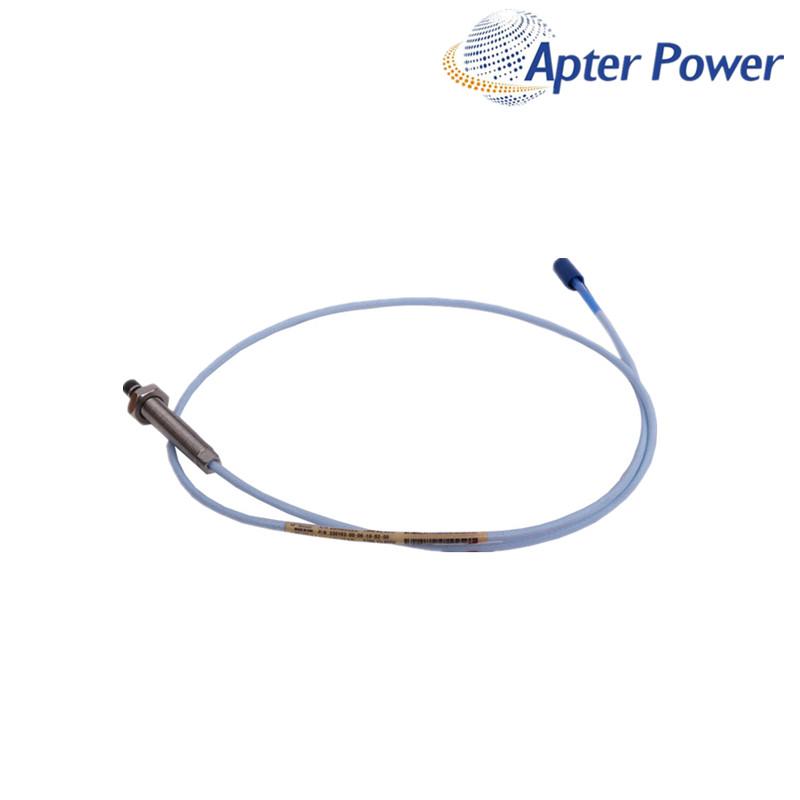

AskA non-armored M10 × 1 proximity probe with a 60 mm case, 1.0 m lead, standard cable, connector protector and no-approval option.
330103-00-06-10-01-00 is a non-armored M10 × 1 probe for the Bently Nevada 3300 XL 8 mm proximity transducer system. The 00 and 06 fields specify 0 mm unthreaded length and a 60 mm overall case.
For 330103-00-06-10-01-00, the 10 field specifies a 1.0 m probe lead. Option 01 identifies the standard ClickLoc cable with a connector protector, while the final 00 is the no-approval selection.
When 330103-00-06-10-01-00 is used in an installed channel, the probe lead and extension cable must complete the electrical length expected by the matching Proximitor Sensor. The complete order code is more reliable than connector appearance alone.
Confirm the M10 × 1 thread, 0 mm unthreaded section and 60 mm case.
Allow clearance for the ClickLoc connector protector and cable route.
Complete the 1.0 m probe lead with the correct extension cable and sensor.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 60 mm |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc cable with connector protector |
| Approval option | 00 — not required |
| System family | 3300 XL 8 mm proximity transducer system |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Review the M10 × 1 thread, 60 mm case, connector protector and cable bend clearance together before installation.
Yes. Option 01 identifies the standard ClickLoc cable with a connector protector.
Choose the extension cable so its length plus the 1.0 m probe lead equals the connected Proximitor Sensor system length.
The 60 mm case is only one block; thread, lead length, cable option and final approval field also need to match.
Compare the complete six-block order code, probe body, connector protector, cable condition and delivered documents with the purchase record.
A clear probe label, mounting view, cable route, extension-cable label and Proximitor Sensor label support the complete chain review.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance.|
