Item NO.:
3301030005501200Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
20.4x22x3cmDescription:
PROXIMITY TRANSDUCERPrice:
Ask
Service decision

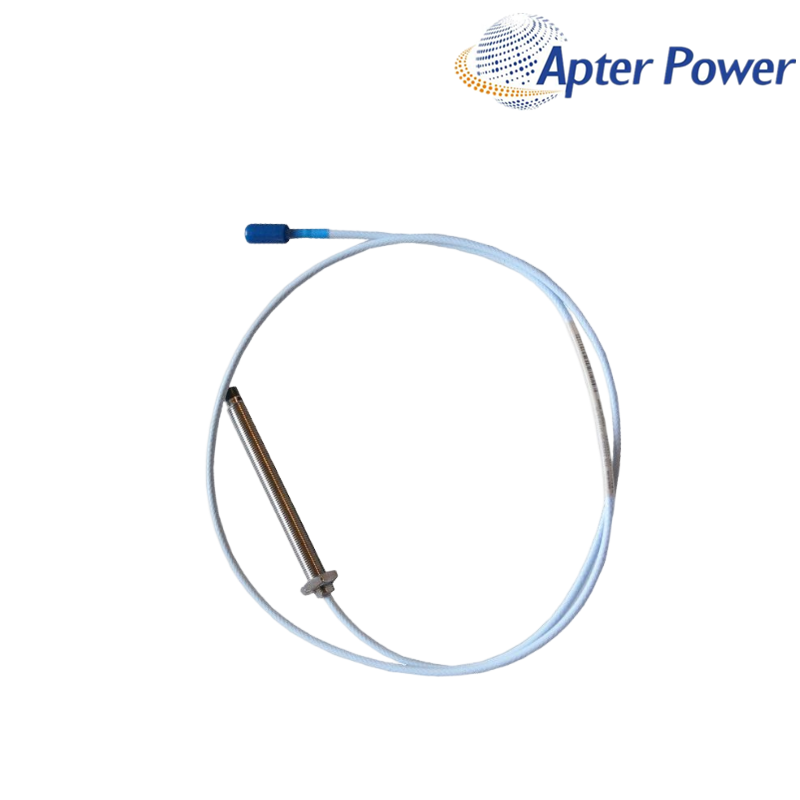

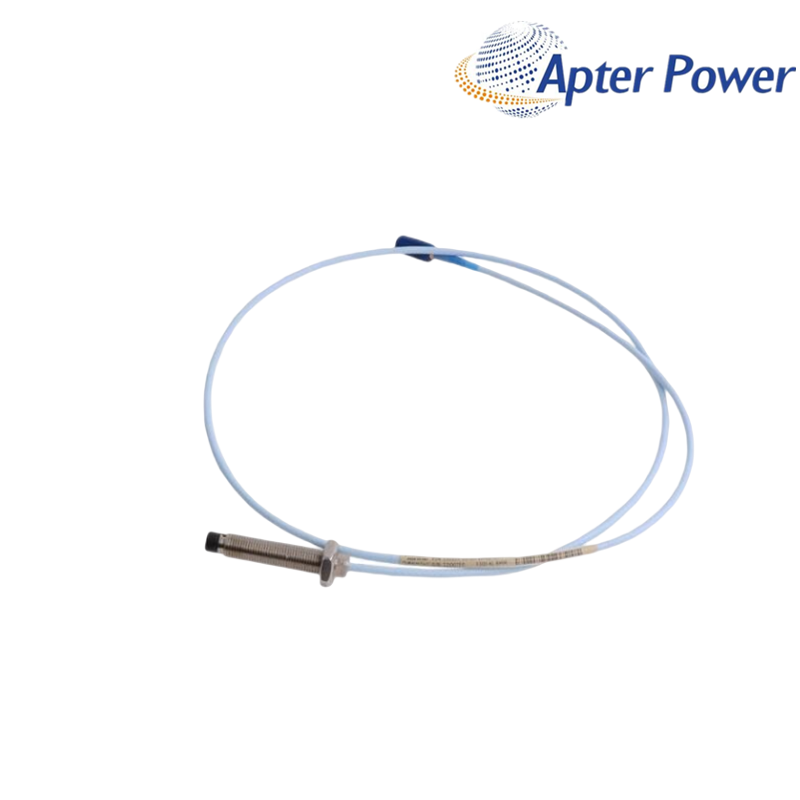

330103-00-05-50-12-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe for maintenance teams that need to confirm an installed measurement chain before a routine replacement. Its 50 mm case and 5.0 m lead provide a clear starting point for matching the existing mounting and cable route.
The practical decision for 330103-00-05-50-12-00 is not made from the M10 × 1 thread alone. The mounting stack, target position, connector access and total system length must continue to suit the current machine arrangement after the replacement is fitted.
330103-00-05-50-12-00 supports a defined transducer-system selection rather than an improvised cable change. This five-metre probe selection is used with a matching five-metre Proximitor Sensor; its probe cable is not a field-splice point.
Maintenance priorities
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Metric Proximity Probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Integral cable length | 5.0 m |
| Connector / cable | 12 — miniature coaxial ClickLoc / FluidLoc cable |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.
Technical note
The 5 m probe selection in 330103-00-05-50-12-00 is used with a matching 5 m Proximitor Sensor only. Do not add an extension or field splice to solve cabinet distance; use monitor-side wiring or obtain an official configuration review when the route cannot be retained.
Buyer and engineer support
No. Baker Hughes specifies the five-metre probe for use with a five-metre Proximitor Sensor only. Keep the calibrated chain intact and use monitor-side wiring or a different official configuration after review.
Do not splice the probe lead. Stop installation, preserve the model information and arrange replacement or an official configuration review so the five-metre chain is not altered.
The bracket must have the documented metric thread and enough room for the 50 mm case, locknuts, gap adjustment and cable exit. It cannot be substituted into a visually similar imperial thread.
The matching sensor, connector seating, actual gap and target condition still determine whether the channel is assembled correctly. Verify those before changing monitor settings.
No. The FluidLoc selection does not itself establish hazardous-area approval. Confirm the complete code, delivered marking and project installation conditions.
Provide the full nameplate, 50 mm M10 × 1 mounting drawing, matching five-metre Proximitor label, target details, route constraints, quantity and destination.
