Bracket fit
Confirm M10 × 1 thread engagement and the 50 mm case clearance.
Item NO.:
330103-00-05-10-02-CNOrder(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.42KGDimension:
110x26x40cmDescription:
PROBEPrice:

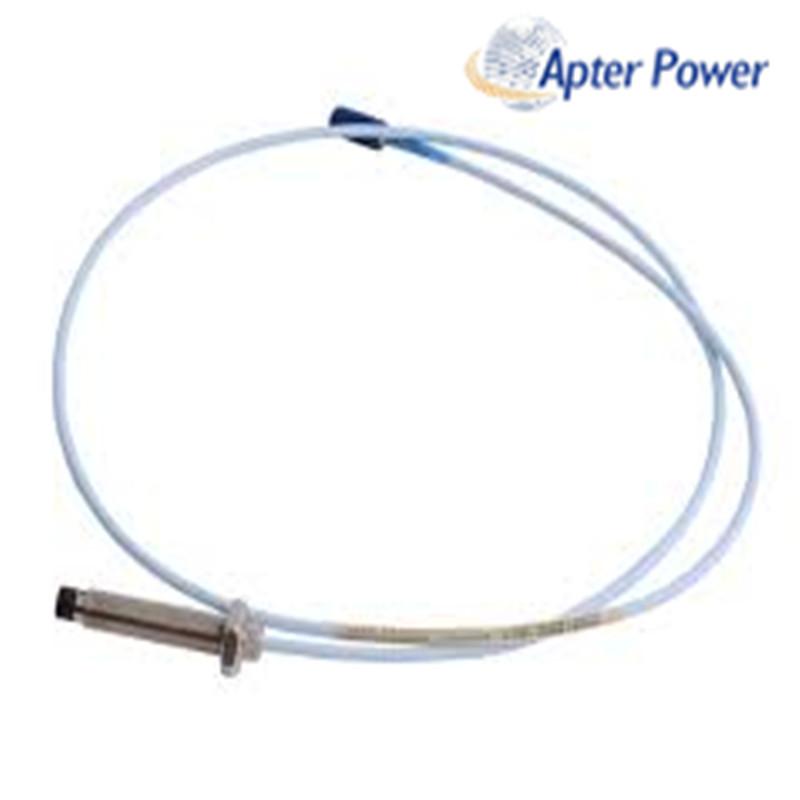

AskA non-armored metric proximity probe with a 50 mm case, 1.0 m lead, standard ClickLoc cable and CN approval option.
330103-00-05-10-02-CN is a non-armored metric probe for the Bently Nevada 3300 XL 8 mm proximity transducer system. The 00 field specifies 0 mm unthreaded length, and 05 identifies a 50 mm overall case.
The 10 field specifies a 1.0 m probe lead. Option 02 is the standard ClickLoc cable without a connector protector, while CN is the published country-specific approval option in the current approval guide.
The probe lead and extension cable must complete the electrical length expected by the connected Proximitor Sensor; connector fit alone is not proof of a correct system match.
Confirm M10 × 1 thread engagement and the 50 mm case clearance.
Protect the unarmored 1.0 m lead and ClickLoc joint in the installed route.
Keep the CN suffix and supplied approval documents with the quotation.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc cable; no connector protector |
| Approval option | CN — country-specific approval option |
| System family | 3300 XL 8 mm proximity transducer system |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Match the M10 × 1 thread, 50 mm case, 1.0 m lead, cable option and approval suffix as one complete order code. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer documents below are hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance. Approvals Quick Reference Guide · 108M1756 Rev. AVOpen the English manufacturer approval guide for country-specific ordering options.Related Tags :
