Item NO.:
3301030005100200Order(MOQ):
1Goods Stock:
40Payment:
T/TLead Time：
In stockWeight:
0.06KGDimension:
108x1.8x1.5cmDescription:
PROXIMITY PROBESPrice:
Ask
Service decision

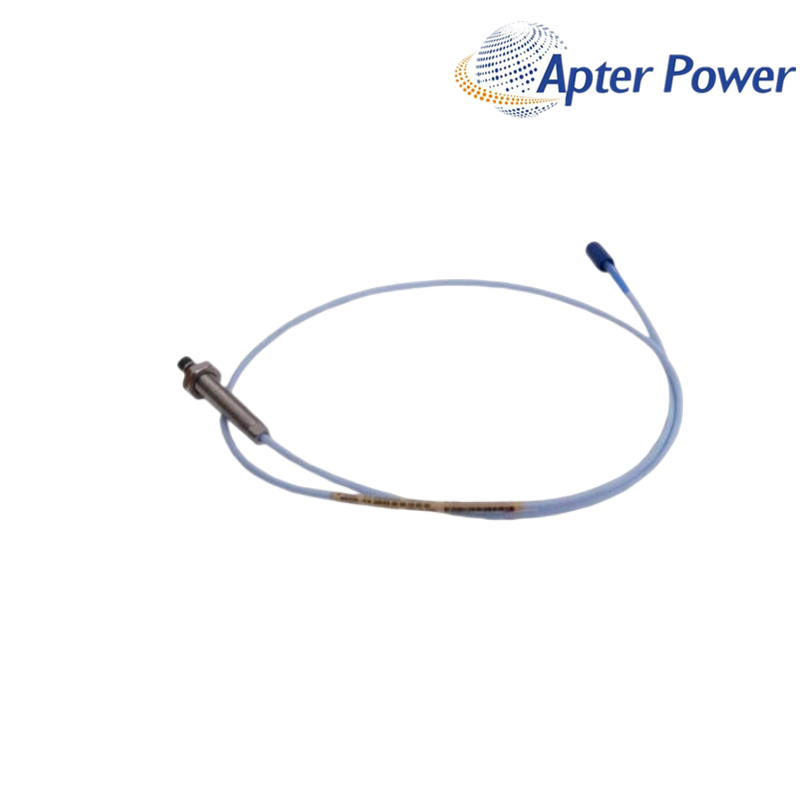

330103-00-05-10-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe for maintenance teams that need to confirm an installed measurement chain before a routine replacement. Its 50 mm case and 1.0 m lead provide a clear starting point for matching the existing mounting and cable route.
The practical decision for 330103-00-05-10-02-00 is not made from the M10 × 1 thread alone. The mounting stack, target position, connector access and total system length must continue to suit the current machine arrangement after the replacement is fitted.
330103-00-05-10-02-00 supports a defined transducer-system selection rather than an improvised cable change. Its 1.0 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Maintenance priorities
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Metric Proximity Probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Integral cable length | 1.0 m |
| Connector / cable | 02 — miniature coaxial ClickLoc / standard cable |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.
Technical note
The 1.0 m probe lead of 330103-00-05-10-02-00 does not define a complete calibrated measurement chain. Select the official extension and matched five- or nine-metre Proximitor Sensor as one system, and stop before installation if the total length cannot be retained.
Buyer and engineer support
Compare the M10 × 1 mounting, 50 mm case depth, locknut travel, target location and rear cable clearance with the installed drawing. The sensing tip alone is not enough for a safe substitution.
No. Reuse an extension only when its label and length create the exact total required by the installed Proximitor Sensor. Connector compatibility alone is not sufficient.
Check connector seating and total system length, then verify gap, target surface and cable condition. Correct those items before adjusting channel scaling.
Route and support it away from pull, crush and sharp-edge exposure, while leaving the connector accessible. Select an official armored alternative if the site cannot provide that protection.
No. The complete code uses the -00 selection. The delivered marking and project requirement must agree before the item is released for that location.
Provide the full nameplate image, M10 × 1 mounting drawing, system length, Proximitor and extension labels, desired condition, quantity and destination.
Supply support
Search references
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Please send an email to request the datasheet for this product.
