Item NO.:
3301030005050200Order(MOQ):
1Goods Stock:
40Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
20.3x22.2x3.5cmDescription:
PROXIMITY PROBESPrice:
Ask
Service decision

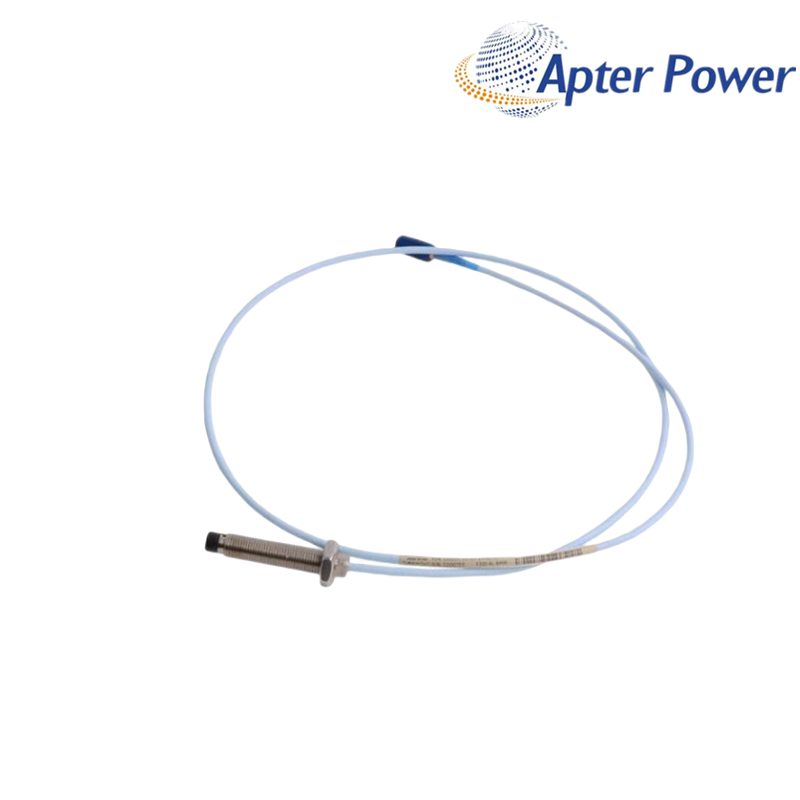

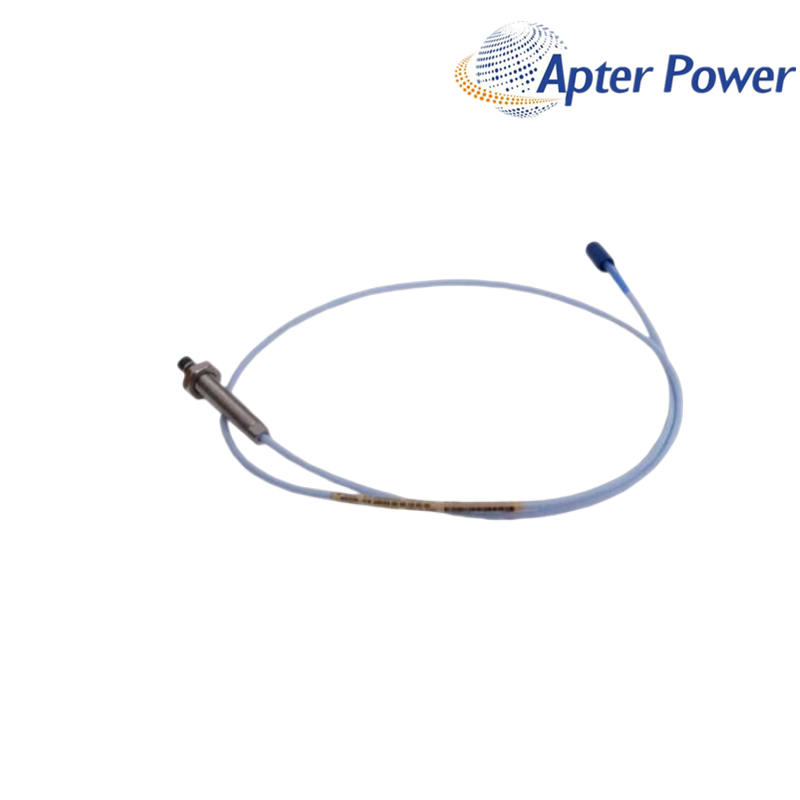

330103-00-05-05-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe for maintenance teams that need to confirm an installed measurement chain before a routine replacement. Its 50 mm case and 0.5 m lead provide a clear starting point for matching the existing mounting and cable route.
The practical decision for 330103-00-05-05-02-00 is not made from the M10 × 1 thread alone. The mounting stack, target position, connector access and total system length must continue to suit the current machine arrangement after the replacement is fitted.
330103-00-05-05-02-00 supports a defined transducer-system selection rather than an improvised cable change. Its 0.5 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Maintenance priorities
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Metric Proximity Probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Integral cable length | 0.5 m |
| Connector / cable | 02 — miniature coaxial ClickLoc / standard cable |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.
Technical note
The 0.5 m probe lead of 330103-00-05-05-02-00 does not define a complete calibrated measurement chain. Select the official extension and matched five- or nine-metre Proximitor Sensor as one system, and stop before installation if the total length cannot be retained.
Buyer and engineer support
Only after the drawing is checked for the additional 10 mm of case length, locknut position, rear clearance and available gap adjustment. Do not approve the substitution from thread size alone.
Use the official extension cable that gives the required total with the matched five-metre Proximitor Sensor. Keep the probe cable intact and avoid field splices.
Confirm the M10 × 1 thread, clean engagement, bracket thickness, locknut access and cable exit. Stop if the probe cannot be adjusted without binding or over-engagement.
A pinched lead, connector load or disturbed gap can change the system signal. Inspect the route and measurement chain before treating the issue as a monitor-calibration problem.
Avoid it when the project needs a documented approval marking that is not represented by the -00 selection. Confirm the complete configuration and delivered marking before ordering.
Provide the full code and label photo, target and bracket dimensions, intended total system length, Proximitor label, route conditions, quantity and destination.
