Selection
- Match the 40 mm case, zero unthreaded length, M10 x 1 interface, 1 m lead and unarmored construction.
- Treat CN as a country ordering option and verify the actual unit label rather than assuming a specific approval certificate.
Item NO.:
330103-00-04-10-02-CNOrder(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.07KGDimension:
23.5x22x3.7cmDescription:
Proximity ProbesPrice:

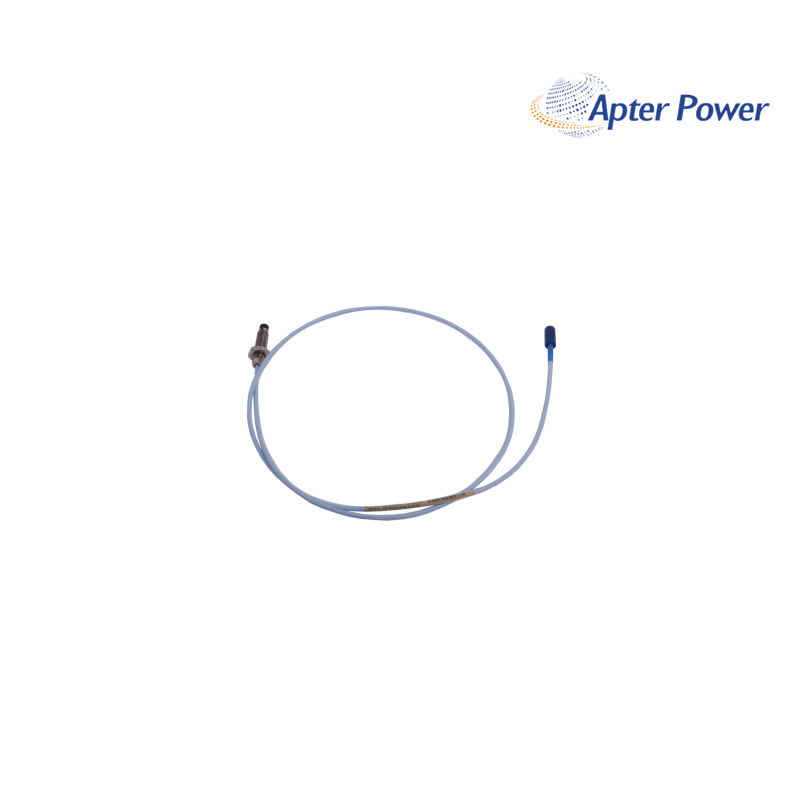

Ask330103-00-04-10-02-CN is a standard-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread and no armor. The configuration has no unthreaded section and uses a 40 mm overall case length.
330103-00-04-10-02-CN is a standard-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread and no armor. The configuration has no unthreaded section and uses a 40 mm overall case length.
330103-00-04-10-02-CN has a 1.0 m integral lead and a miniature ClickLoc coaxial connector on standard cable without a connector protector. CN is a country-specific ordering option; the actual approval markings must be verified on the supplied unit.
330103-00-04-10-02-CN must be matched with the correct probe, extension-cable and Proximitor system length. Target material, mounting geometry, gap and monitor-channel setup remain part of the complete-system performance check.
This probe has no unthreaded section and a 40 mm case. The bracket must accept the M10 x 1 thread while still providing the required insertion depth, tip position and target clearance.
The lead has no stainless-steel armor, so it benefits from physical support and protection from abrasion or pulling. The route must also maintain the documented 25.4 mm minimum bend radius.
The probe lead and extension-cable lengths must add up to the total length of the selected Proximitor Sensor. A 1 m probe is therefore selected as one part of the complete 5 m or 9 m chain, not by cable reach alone.
That is not a geometry-only substitution because this model is unarmored and uses a 40 mm case with zero unthreaded length. Construction, mounting reach, total system length, target and channel setup all need to match the installed design.
Use the complete supplied-unit label and its actual certification markings for the decision. The CN suffix identifies an ordering option, but it should not be converted into a specific approval claim without the corresponding unit evidence.
Begin with ClickLoc seating, unarmored-lead condition and continuity, then compare probe gap, target surface, total electrical length and the associated Proximitor and monitor-channel settings.
The supplied product is covered for 12 months under ApterPLC sales terms. Keep the complete product label, original packaging and transaction record so the exact unit can be identified quickly if support is needed.
Use this selected official Bently Nevada document to review the ordering structure, configuration boundaries, interfaces, installation details and technical limits that apply to 330103-00-04-10-02-CN.
|
