Item NO.:
3301030004100200Order(MOQ):
1Goods Stock:
40Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
20.5x22.4x3.3cmDescription:
PROXIMITY PROBESPrice:
Ask
Service decision

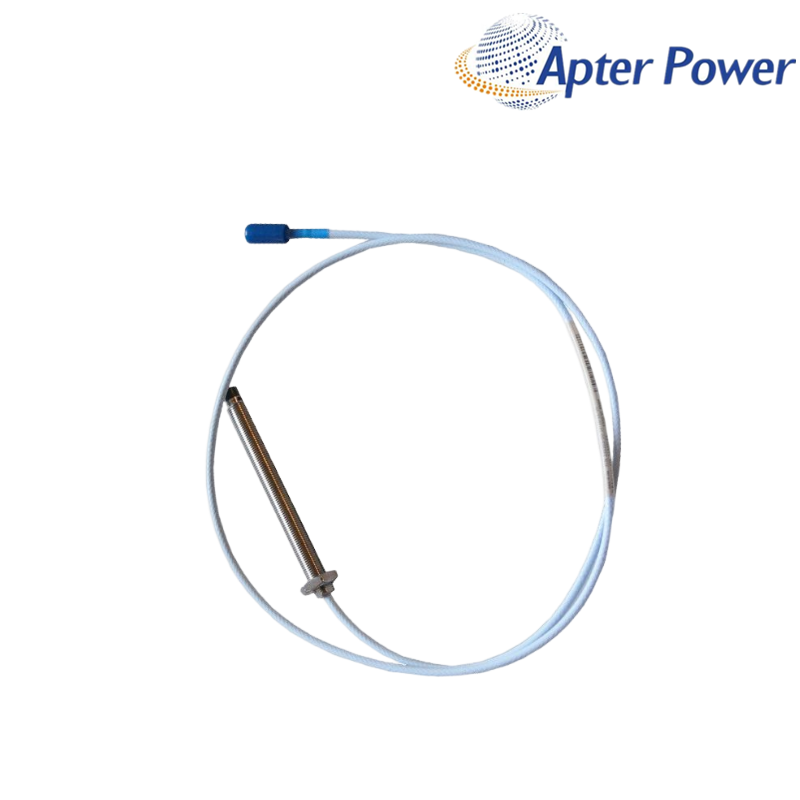

330103-00-04-10-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe for maintenance teams that need to confirm an installed measurement chain before a routine replacement. Its 40 mm case and 1.0 m lead provide a clear starting point for matching the existing mounting and cable route.
The practical decision for 330103-00-04-10-02-00 is not made from the M10 × 1 thread alone. The mounting stack, target position, connector access and total system length must continue to suit the current machine arrangement after the replacement is fitted.
330103-00-04-10-02-00 supports a defined transducer-system selection rather than an improvised cable change. Its 1.0 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Maintenance priorities
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Metric Proximity Probe |
| Ordering family | 330103 |
| Thread | M10 × 1 |
| Cable armor | Not included |
| Unthreaded length | 0 mm |
| Overall case length | 40 mm |
| Integral cable length | 1.0 m |
| Connector / cable | 02 — miniature coaxial ClickLoc / standard cable |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.
Technical note
The 1.0 m probe lead of 330103-00-04-10-02-00 does not define a complete calibrated measurement chain. Select the official extension and matched five- or nine-metre Proximitor Sensor as one system, and stop before installation if the total length cannot be retained.
Buyer and engineer support
Keep the probe plus official extension cable at the total required by the selected Proximitor Sensor. Address the longer cabinet distance on the separate monitor-side wiring, not by splicing the probe lead.
Confirm the actual M10 × 1 thread, the 40 mm case position, locknut travel and target reach on the installation drawing. A visually similar imperial port is not compatible.
It becomes a risk when the installed bracket, recess or rear hardware leaves insufficient adjustment or cable clearance. Compare those dimensions before ordering rather than after shutdown.
Check the one-metre lead plus extension, connector seating, actual gap and target condition. These installation changes must be corrected before monitor scaling is modified.
Not without a complete marking comparison. The -00 selection does not establish that approval, so procurement should obtain the appropriate officially configured item before release.
Send the full nameplate, M10 × 1 mounting drawing, required system length, existing Proximitor label, cabinet-route constraint, quantity and destination.
Supply support
Search references
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Please send an email to request the datasheet for this product.
