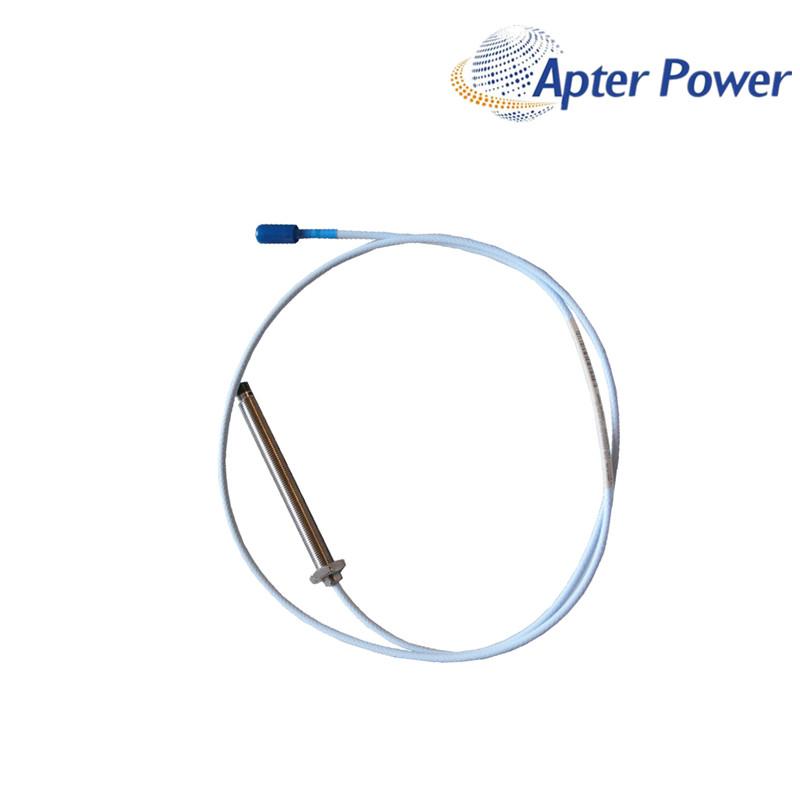

Compact bracket
Confirm the 30 mm case and M10 × 1 mounting depth.
Item NO.:
330103-00-03-10-02-05Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
2.2x12.4x12.6cmDescription:
PROXIMITY PROBEPrice:
AskA compact non-armored M10 × 1 probe with a 30 mm case, 1.0 m lead, standard ClickLoc cable and multiple approvals.
330103-00-03-10-02-05 is a non-armored M10 × 1 probe in the 3300 XL 8 mm system. The 00 and 03 fields specify 0 mm unthreaded length and a 30 mm overall case.
The 10 field specifies a 1.0 m lead. Option 02 is the standard ClickLoc cable without a connector protector, and final option 05 is the published multiple-approvals selection.
Confirm bracket clearance, environmental protection and the complete probe-cable-sensor chain before accepting a replacement.
Confirm the 30 mm case and M10 × 1 mounting depth.
Add suitable field protection for the ClickLoc connection.
Review the supplied approval documents before substitution.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| Probe construction | Non-armored metric probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 30 mm |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc cable; no connector protector |
| Approval option | 05 — multiple approvals |
| System family | 3300 XL 8 mm proximity transducer system |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Keep the 30 mm case, 1.0 m lead, standard cable and approval option 05 aligned with the installed system. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
