M10 × 1 unarmored probe
Item NO.:
330103-00-03-10-01-0Order(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
1.3KGDimension:
7.6x5.1x35.6cmDescription:
CABLEPrice:
AskA compact 30 mm case with a 1.0 m lead, connector protector and the documented multiple-approval option.
0 mm unthreaded · 30 mm case · 1.0 m lead · cable + protector · CSA / ATEX / IECEx

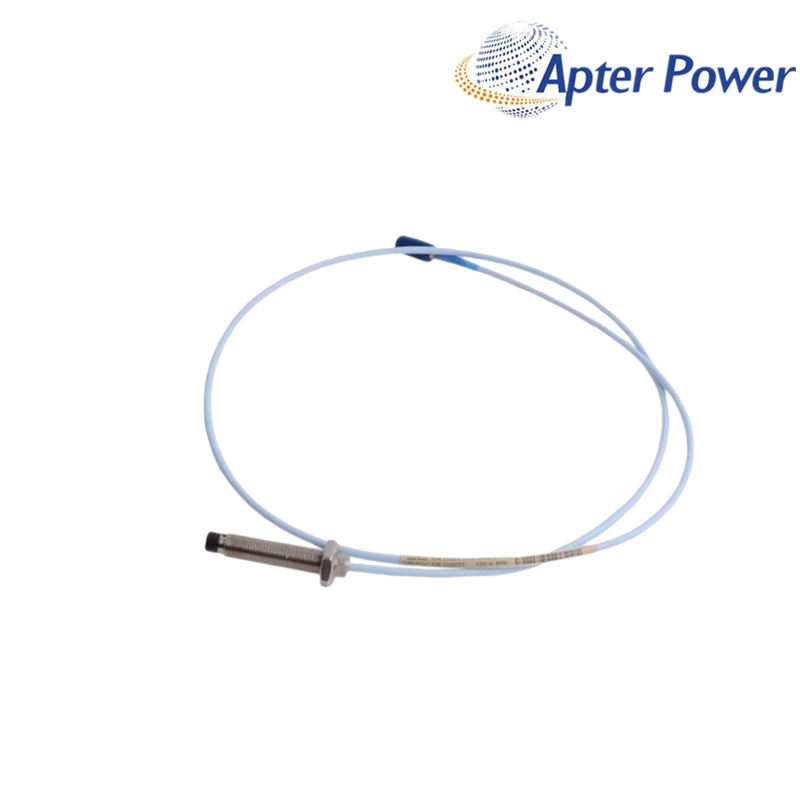

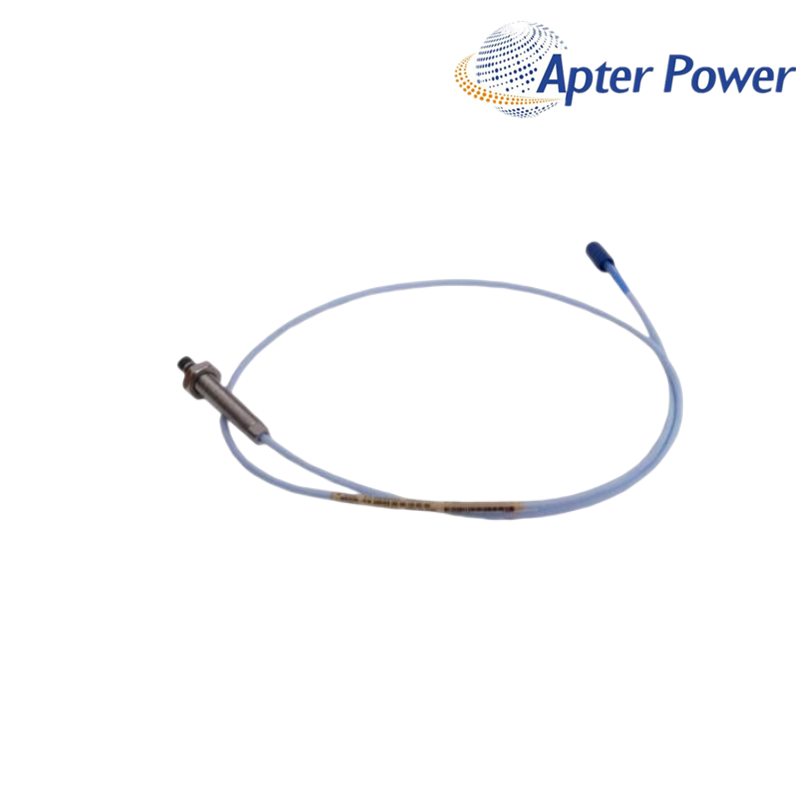

330103-00-03-10-01-05 is a 3300 XL 8 mm Proximity Probe in the 3300 XL 8 mm Proximity Transducer System. A compact 30 mm case with a 1.0 m lead, connector protector and the documented multiple-approval option.
Its documented configuration is 0 mm unthreaded · 30 mm case · 1.0 m lead · cable + protector · CSA / ATEX / IECEx. These order-code choices define how the component fits the signal path and should be reviewed together rather than by appearance alone.
For maintenance or procurement, 330103-00-03-10-01-05 should be matched to the installed system role, connection architecture and complete manufacturer label. ApterPLC can review those details before quotation.
The selection identity for 330103-00-03-10-01-05 is built from the full code and its verified system role.
M10 × 1 unarmored probe
0 mm unthreaded
30 mm case
1.0 m lead
Standard + protector
Multiple approvals
Confirm the 30 mm case provides the required threaded reach.
Use the protected 1.0 m lead within the approved 8 mm probe configuration.
Match the cable, Proximitor and certificate package required by the installation.
| Probe thread | M10 × 1 |
|---|---|
| Cable armor | Without armor |
| Unthreaded length | 0 mm |
| Overall case length | 30 mm |
| Total lead length | 1.0 m |
| Connector / cable | Standard ClickLoc cable with connector protector |
| Family linear range | 2.0 mm (80 mil) |
| Family sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Maximum thread engagement | 15 mm |
| Minimum bend radius | 25.4 mm |
| Approval option | 05 — CSA, ATEX, IECEx |
| Payment | T/T |
| Goods Stock | 13 |
| Weight | 1.3KG |
| Dimension | 7.6x5.1x35.6cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The compact case controls how the probe reaches the target in a restricted mount. A longer case is not a neutral substitution because it changes the mechanical installation.
It specifies the standard ClickLoc cable with a connector protector. Preserve that protected connection where the installed route depends on it.
The 05 option is part of the documented CSA, ATEX and IECEx execution. Match the project certificate requirement and supplied documents rather than ordering only by geometry.
The probe lead contributes to the total 3300 XL 8 mm electrical length. Select the extension cable and Proximitor Sensor as a matched system, not as independent items.
Maximum thread engagement is 15 mm. Set the mount within that limit while maintaining the correct probe gap and cable bend radius.
Include the full order code, installation zone and required certificate set. This lets the offer preserve both the compact protected construction and the 05 approval option.
Complete labels are compared with the official order-code structure.
Connected probes, cables, I/O and monitoring roles are reviewed together.
Logistics and project timing are confirmed with the commercial offer.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the full 330103-00-03-10-01-05 label and order reference.
Add connector, mounting and associated signal-path photos.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AL is the official family document used to verify this product identity, order-code fields and applicable technical context.
Document access: Request the verified manufacturer datasheet for the exact model offered.
Request Verified DatasheetRelated Tags :
