Selection
- Measure the required 4.0 in reach and confirm the 3/8-24 UNF mount.
- Check that the 1.0 m lead fits the complete 5 m or 9 m system plan.
Item NO.:
330102-00-40-10-02-00Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
7.8x3x6.2cmDescription:
PROXIMITY SENSORPrice:

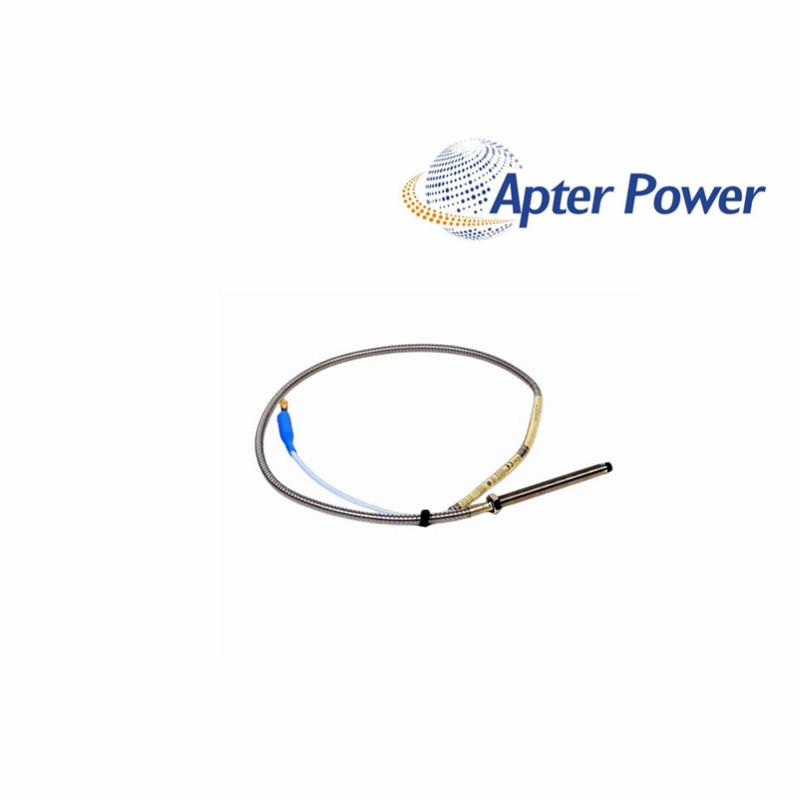

AskAn armored 3/8-24 UNF probe with a 4.0 in case and 1.0 m lead for deep-reach shaft vibration and position measurements.
With its 4.0 in case and armored lead, this 3300 XL 8 mm probe is aimed at deep-reach machine locations where the cable route needs additional mechanical protection. It works as the sensing end of a matched non-contact system for shaft vibration, position and Keyphasor measurements.
The code string specifies zero unthreaded length, a 4.0 in threaded case, a 1.0 m total probe lead and a miniature ClickLoc connector on standard cable without a connector protector. Code 00 means no agency approval option is required for this configuration.
During a retrofit, reach and cable construction matter just as much as thread size. The probe tip must land at the documented target position, the armor must be supported so it does not side-load the body, and the remaining cable length must complete the Proximitor Sensor’s calibrated system.
It suits a deep 3/8-24 UNF mounting point where the sensing tip must reach through a housing or bracket to the rotating target.
Use the machine drawing and the 4.0 inch case geometry to set the sensing-tip position while retaining adequate thread engagement and adjustment range.
Support it near the probe, maintain bend radius and keep it away from hot surfaces, sharp edges and moving parts so armor weight cannot load the probe.
Connector code 02 uses the miniature ClickLoc connection on standard cable without the separate connector protector.
Check target condition, loose mounting, cable routing, connector integrity, channel scale and electrical interference; static bias alone does not prove dynamic performance.
Check the full suffix, 4.0 in case, armor, cable condition, probe tip and connector before the part is released to stores or the outage team.
Products supplied by ApterPLC are covered for 12 months under the applicable sales terms. The complete nameplate and transaction record help our team identify the exact unit when support is needed.
This Bently Nevada document covers system specifications and 330102 ordering information for 330102-00-40-10-02-00. It provides a practical reference for model selection, installation planning and maintenance.
|
