Item NO.:
330101-10-27-05-02-05Order(MOQ):
1Goods Stock:
30Payment:
T/TLead Time：
In stockWeight:
0.12KGDimension:
20.4x22.2x3.7cmDescription:
PROXIMITY PROBEPrice:
Ask3300 XL 8 mm proximity transducer system · 1.0 in unthreaded section · approval option 05
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

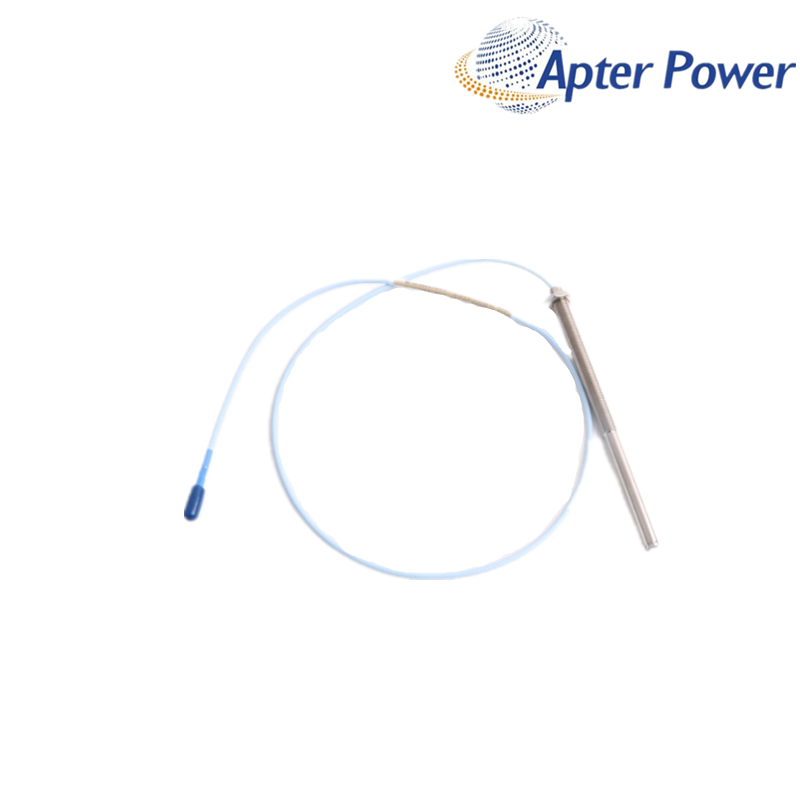

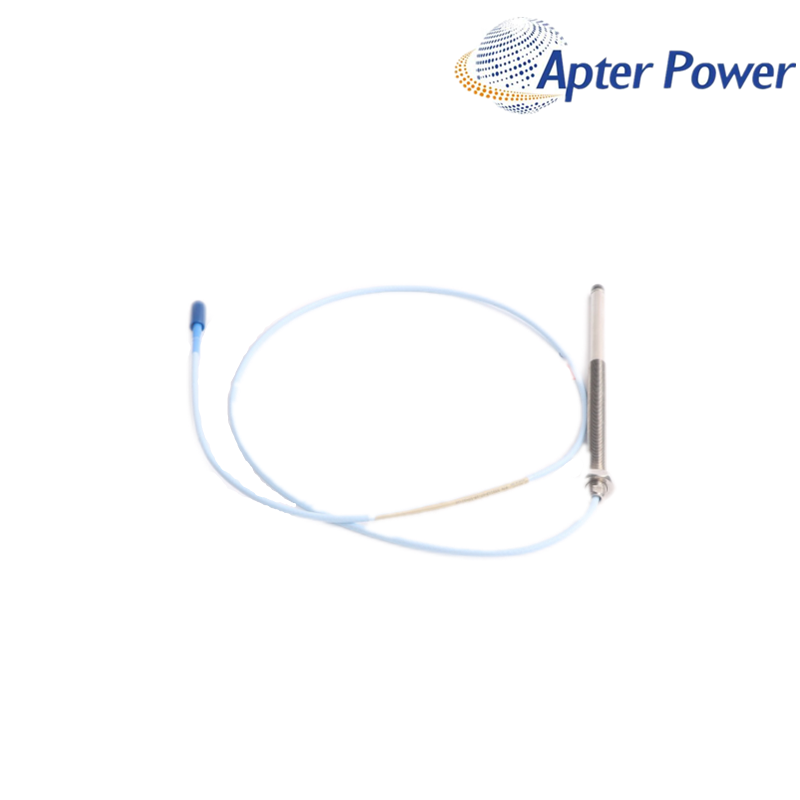

330101-10-27-05-02-05 is a 3300 XL 8 mm forward-mount probe with a 3/8-24 UNF thread, a 1.0 in unthreaded section, a 2.7 in overall case and a 0.5 m standard integral cable. Its ClickLoc connection is unarmored and supplied without the separate protector option.
330101-10-27-05-02-05 is defined by the relationship between its smooth section and threaded case as well as by approval option 05. The mounting bracket must clamp or locate only where the drawing allows, and the short lead must be completed to the correct five- or nine-metre Proximitor chain.
Creates a distinct mounting geometry that cannot be replaced by a fully threaded body without review.
Provides 1.7 in of case beyond the defined unthreaded length.
Combines the short integral cable with CSA, ATEX and IECEx option 05.
A fully threaded substitute or a bracket positioned over the wrong section can change clamping, adjustment and gap stability. Match the one-inch smooth section and all mounting datums before substitution.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 1.0 in |
| Overall case length | 2.7 in |
| Integral cable length | 0.5 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 05 — CSA, ATEX and IECEx |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Use the drawing to locate the 1.0 in unthreaded section relative to the bracket and target. Confirm the remaining threaded adjustment and locknut positions before setting gap.
Match approval option 05 to the actual area conditions, then add the official extension length that completes the 0.5 m probe into the selected five- or nine-metre system.
Not without a mounting review. This model has a one-inch unthreaded section, so compare the bracket location, clamping method, adjustment range and target distance before substitution.
Use the manufacturer and machine drawings to locate the one-inch smooth section and threaded adjustment correctly. Stop if the bracket would clamp across a transition or leave inadequate locknut engagement.
Select the official extension cable that completes the chosen five- or nine-metre system and matches the Proximitor Sensor. Do not splice or lengthen the integral lead.
A poorly located clamp, loose locknut, cable pull, changed target or loose ClickLoc connector can move the operating point. Correct the mechanical support and connection, then reset and verify the gap.
No. Verify the delivered marking, temperature class, site classification, wiring method and required enclosure or drawing before energizing the circuit.
Provide the complete label, mounting drawing showing the unthreaded section, required total system length, Proximitor code, hazardous-area requirement, quantity, condition and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
No verified model-specific English PDF is attached to this page. This avoids linking a document that cannot be audited against the complete ordering code.
Send the complete model, full nameplate photograph and installed-system details so the applicable manufacturer document can be checked before supply.
