Item NO.:
330101-00-56-10-02-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
1.5x1.2x113cmDescription:
PROXIMITY PROBEPrice:
Ask3300 XL 8 mm proximity transducer system · 5.6 in case · 1.0 m lead
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

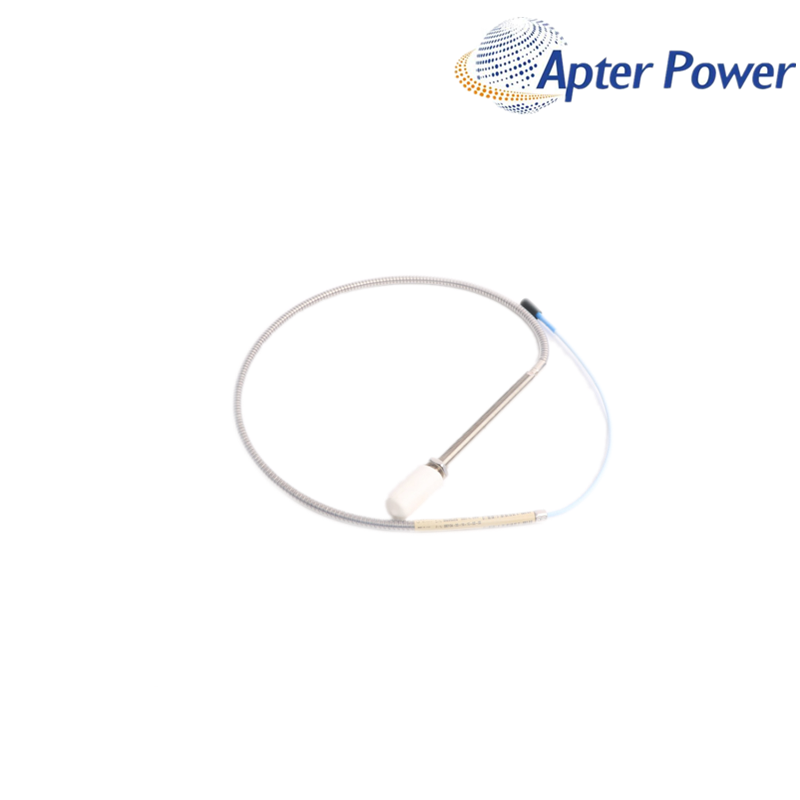

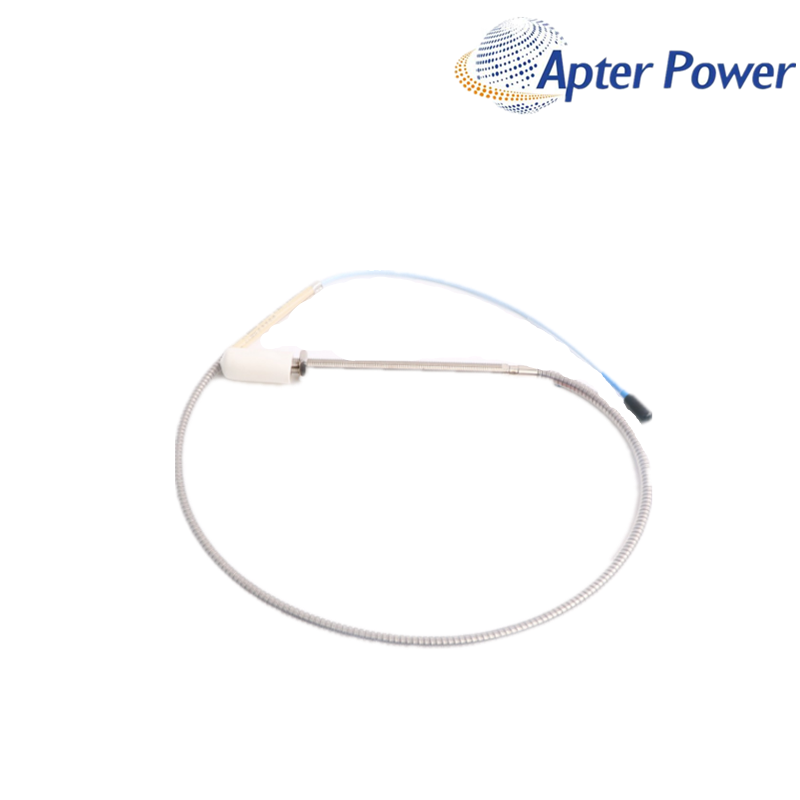

330101-00-56-10-02-00 is a 3300 XL 8 mm forward-mount proximity probe with a 3/8-24 UNF thread, zero unthreaded length, a 5.6 in overall case and a 1.0 m standard integral cable. It uses the option 02 ClickLoc connection and has no cable armor.
330101-00-56-10-02-00 is a long-case configuration for mounting arrangements that require reach through a substantial bracket or housing. Selection should be based on usable adjustment, rear clearance and the complete five- or nine-metre cable chain—not on case length alone.
Provides extended mechanical reach with the full case threaded.
Supports a defined remaining extension length for the selected Proximitor system.
Requires a protected route and controlled bend at the rear of the long case.
Side load, insufficient rear space or excessive engagement can bind the probe and damage the thread. Confirm straight access, usable adjustment and cable exit before installation, and never use the cable to pull the probe into position.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 0.0 in |
| Overall case length | 5.6 in |
| Integral cable length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Measure from the mounting face to the target and include the bracket and locknut stack. The 5.6 in case must remain adjustable without exceeding thread-engagement or rear-clearance limits.
Support the unarmored one-metre lead after a natural bend, keep clamps away from the case transition and complete the required total length with the official extension cable.
Compare the 5.6 in case with the mounting-face-to-target distance, bracket stack and required gap, then confirm enough rear space remains for adjustment and a natural cable bend.
Only within the manufacturer’s thread-engagement limit and approved mechanical drawing. Stop if the probe begins to bind or if locknut support and rear clearance are no longer adequate.
No. Use the manufacturer extension length that completes the matching five- or nine-metre system and keep the ClickLoc connector fully seated.
Cable strain, a bend below the minimum radius or a partly seated connector can disturb the signal. Release the strain, correct the route and recheck the connection and gap before changing monitor settings.
No. The configured probe is unarmored. Use an approved protected route or select the manufacturer’s armored probe option when mechanical protection cannot be provided.
Provide the full code, mounting section and rear-clearance drawings, current probe and Proximitor labels, required chain length, cable-protection need, quantity and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
No verified model-specific English PDF is attached to this page. This avoids linking a document that cannot be audited against the complete ordering code.
Send the complete model, full nameplate photograph and installed-system details so the applicable manufacturer document can be checked before supply.
