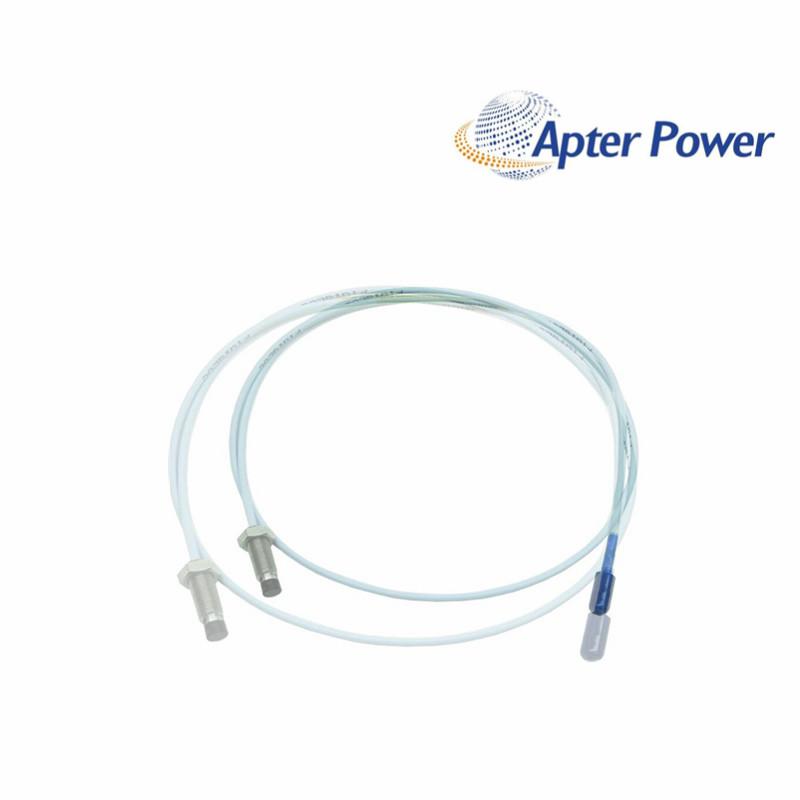

It can be a strong candidate when the bracket accepts a 3/8-24 UNF standard-mount probe, the 5.2 in case reaches the target and the 1.0 m lead reaches the planned connection point. Confirming those three conditions together avoids a probe that fits the thread but not the space.

Separate mechanical movement from the signal path by reviewing mounting rigidity and target gap first, then connector seating, cable routing and the matching Proximitor Sensor. The speed-dependent behavior may expose bracket motion or cable vibration that is invisible while stopped.

Because connector option 02 has no protector, position the joint in a clean, dry and strain-relieved area or suitable enclosure. If that cannot be achieved, review a documented protected-connector configuration rather than relying on tape or an improvised cover.

Only when that cable and the 1.0 m probe lead form a documented 3300 XL 8 mm system with the matching Proximitor Sensor. A ClickLoc connector that physically mates does not by itself prove the correct electrical length.

Record the installed gap, bracket position, connector condition, channel reading and machine state before returning the loop to service. The baseline makes later drift easier to separate from a configuration or mechanical change.

Confirm that the CN country option remains on the complete order and that the physical unit label satisfies the project requirement. This aligns the purchased configuration with the acceptance documents without assuming that the suffix alone proves every site condition.
