Item NO.:
330101-00-40-10-02-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
1.5KGDimension:
5.1x20.3x33cmDescription:
PROBE PROXIMITY VIBRATION 8MMPrice:

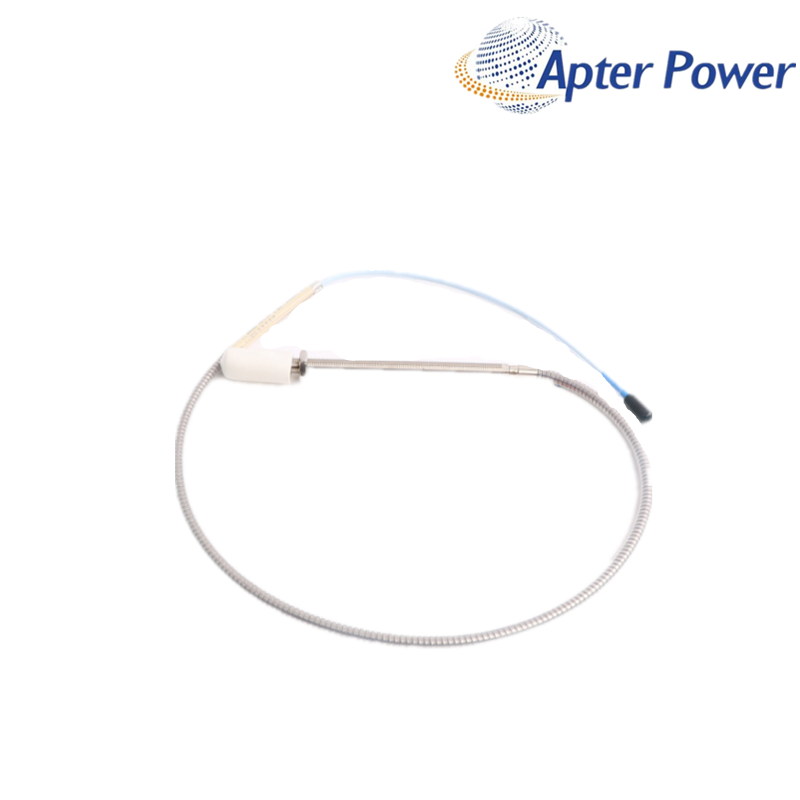

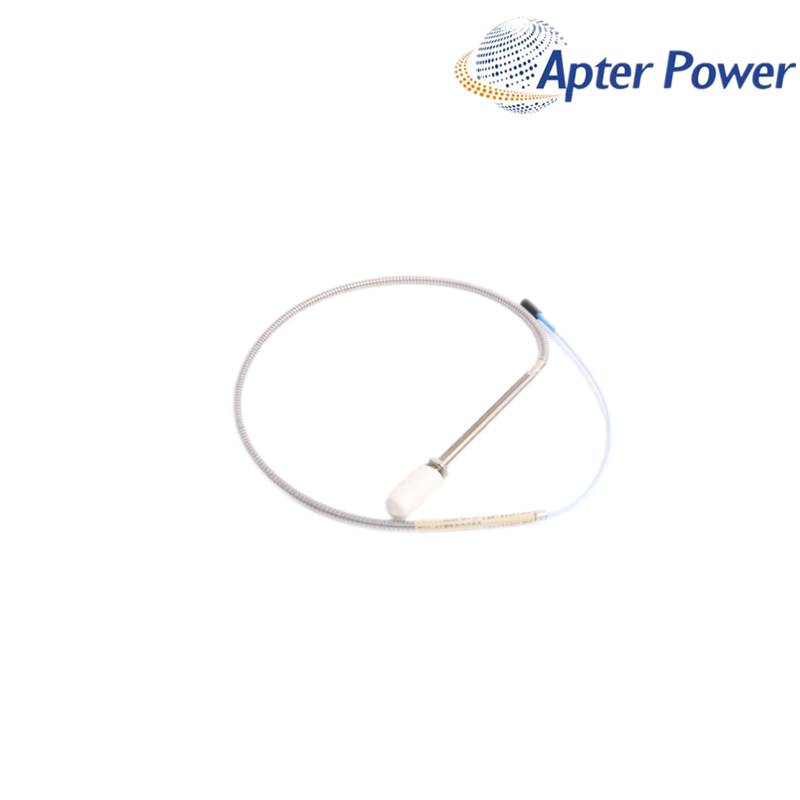

Ask3300 XL 8 mm proximity transducer system · 4.0 in case · 1.0 m lead
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.
330101-00-40-10-02-00 is a manufacturer-listed 3300 XL 8 mm forward-mount probe with a 3/8-24 UNF thread, zero unthreaded length, a 4.0 in overall case and a 1.0 m standard integral cable. The option 02 ClickLoc connection is supplied without armor or a connector protector.
330101-00-40-10-02-00 provides a longer threaded body for installations that need additional reach, while its approval selection is 00. The four-inch case, clearance behind the bracket and one-metre cable must be matched to the drawing and the chosen five- or nine-metre Proximitor chain.
The exact full code appears in the manufacturer’s recommended stocked-probe list.
The zero-unthreaded 4.0 in case supports deeper mounting arrangements.
Pairs with the extension length needed to complete a 5 m or 9 m system.
A longer threaded body can contact adjacent hardware or force a tight cable bend even when the sensing tip reaches correctly. Verify adjustment travel, locknut access and rear cable clearance on the installation drawing.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 0.0 in |
| Overall case length | 4.0 in |
| Integral cable length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Use the documented 3/8-24 engagement limit, maintain the minimum cable bend radius and keep the cable-to-case transition free of clamp load.
If the value changes after replacement, restore the mechanical gap and inspect target condition before changing scaling. Then verify the one-metre lead plus extension equals the Proximitor system length.
Verify the full four-inch case, locknut access, cable exit and minimum bend radius against the cabinet or bearing-housing drawing. A reachable tip does not by itself prove the body will clear adjacent hardware.
Only if the existing extension length and Proximitor label form the same documented five- or nine-metre chain. Inspect both labels and connector condition before reuse.
Check the probe gap and target first, then confirm ClickLoc seating, cable damage and total electrical length. Restore the physical chain before adjusting the monitor channel.
Do not load the cable-to-case transition or force a bend below the manufacturer minimum. Move the clamp or revise the route so the lead exits naturally and remains protected.
Not from this suffix: the code carries option 00 rather than the agency-approval selection. Request the officially marked configuration that matches the project and verify its complete code before ordering.
Provide the full code and nameplate, mounting and rear-clearance drawings, required system length, extension and Proximitor labels, route conditions, quantity and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
3300 XL 8 mm Proximity Transducer System — 141194 Rev. AM
Need the correct revision or configuration document? Send the complete model and installed-system details to Manager JimPei.
